14.3 Memory Check
14.3.2 Display operation of memory check
Mounting condition of optional devices (board)
The mounting status of option function board and multi-color display board is
displayed on the lower left of the memory check screen.
Carries out write/read check of memory.
When drive is not displayed
When the drive (memory) to check is not displayed, confirm the mounting procedure
or memory type with reference to the following.
• CF card inserting/removing method ( 8.8
CF Card)
When no faults are found in mounting, etc, a memory failure may be arosen.
Replace the memory card or built-in flash memory (C drive).
For details of built-in flash memory, contact your local Mitsubishi (Electric System)
Service.
The following example explains about Memory Check using built-in flash memory (C drive).
For the Bulit-in CF card (A drive) memory check or Extended memory card (B drive) memory check, install
the CF card before carrying out the same key operations as built-in flash memory.

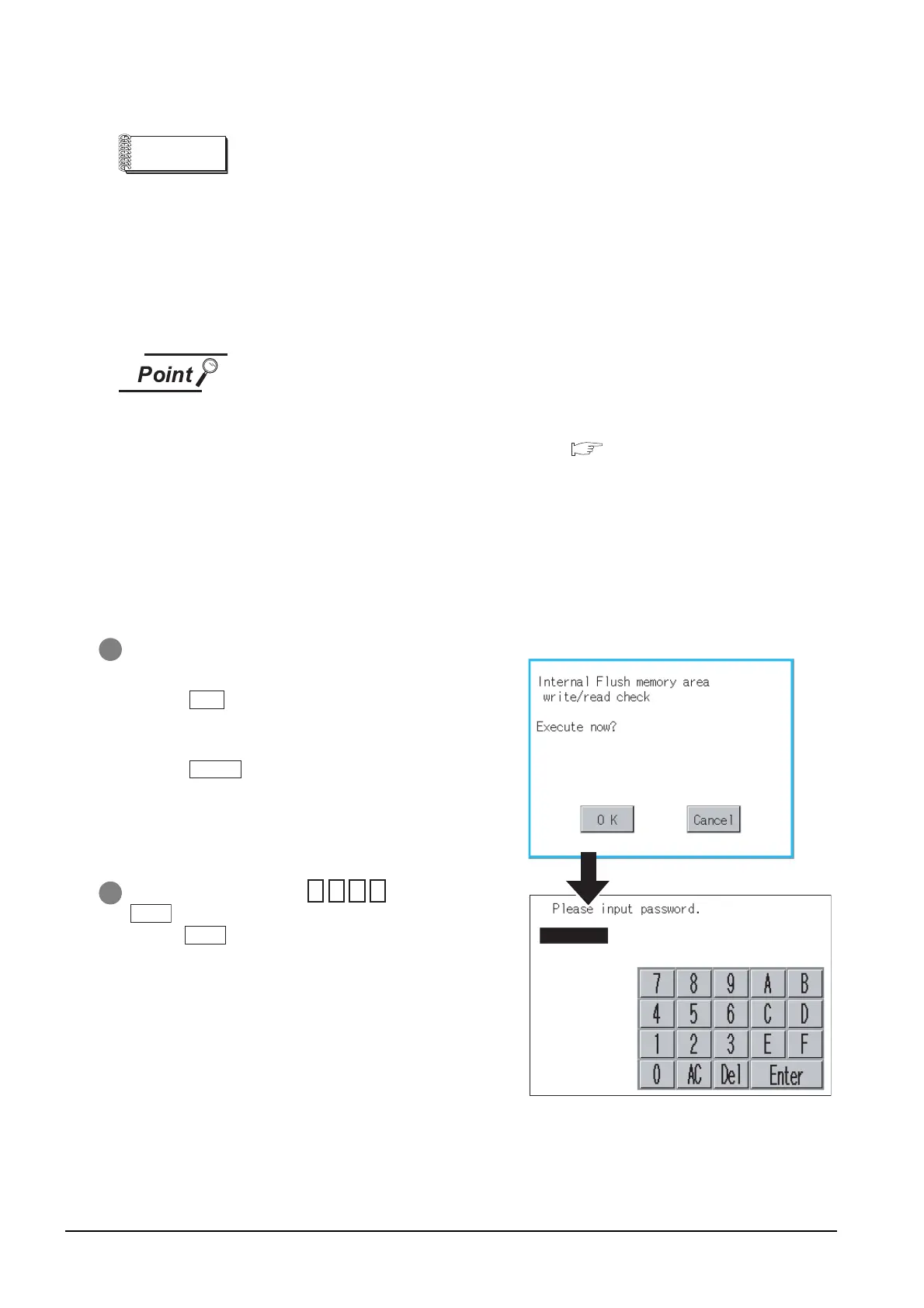

1 Select [Flash Memory] in the Memory check setting
screen.
If select button, the numeric keyboard window is
displayed.
If select button, returns to the initial menu.
2 Touch to input password ( ) and touch
.
If touch ,executes read/write check for the built-in
flash memory, which is completed in around 10 seconds.
When mounted : The model numbers of the mounted option function board
and multi-color display board are displayed.
When not mounted : "None" is displayed.Memory check operation
