Moons' M2 Series - Software Configuration for Analog Velocity Mode

M Series AC Servo
User Manual
101
Rev. 1.0
7/31/2019
400-820-9661
7.3.5 Software Configuration For Analog Velocity Mode
The M servo suite can help you easily configure the drive and motor, as well as tuning the parameters.

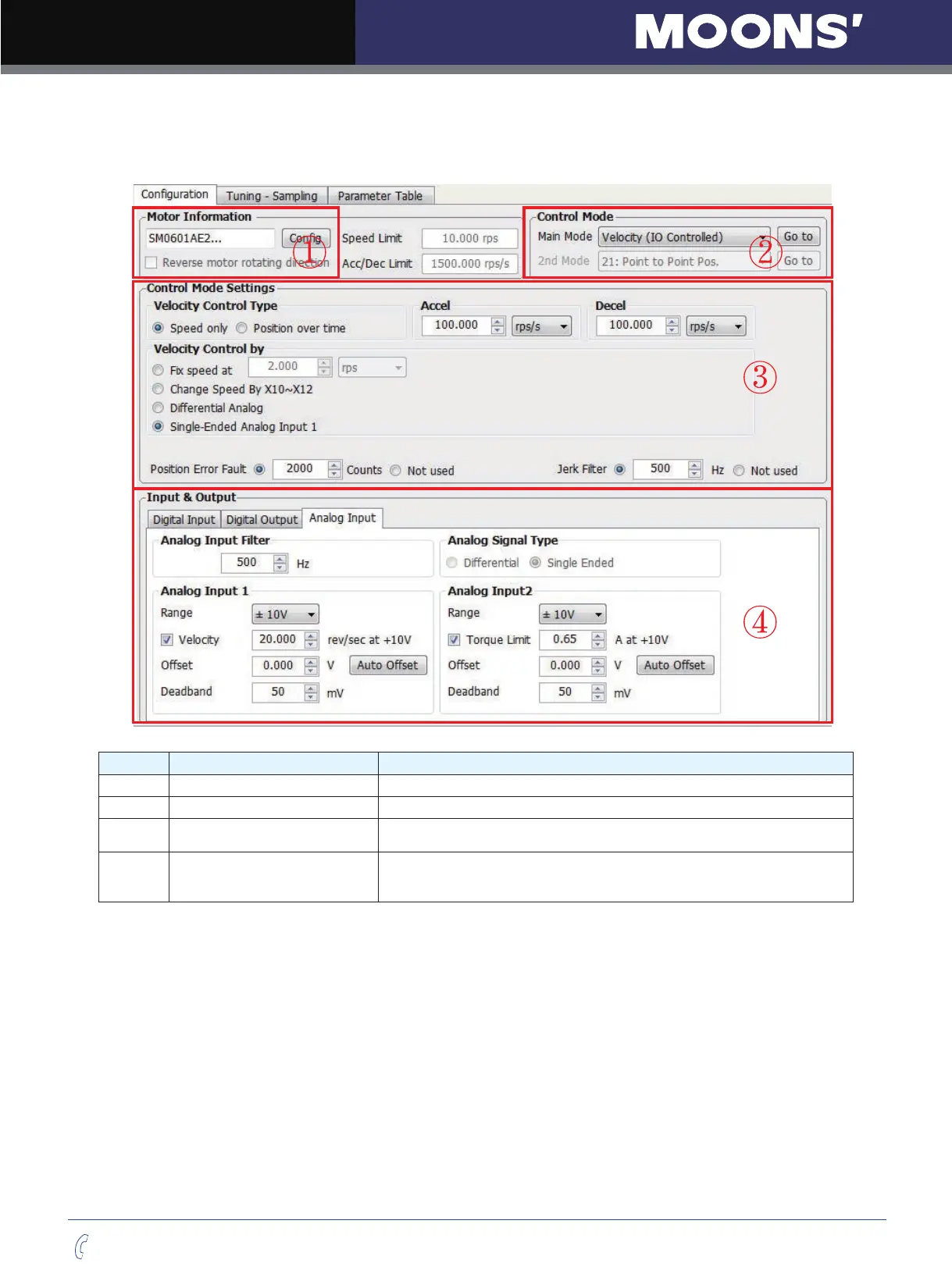

Step Operation Description
1st
Congure motor choose your motor number. Please refer to 2.3 motor number for details
2nd
Choose control mode In control mode, choose “velocity” for Velocity mode
3rd
Control mode conguration
choose specied velocity analog type, Please refer to 7.3 analog velocity
mode and 7.6 command velocity.
4th
Set analog signal
function, or digital input/output functions in Input/Output functions to setup.
Please refer to 4.8.3 CN2 connections, and 7.3 velocity mode and 7.1
general function settings.
