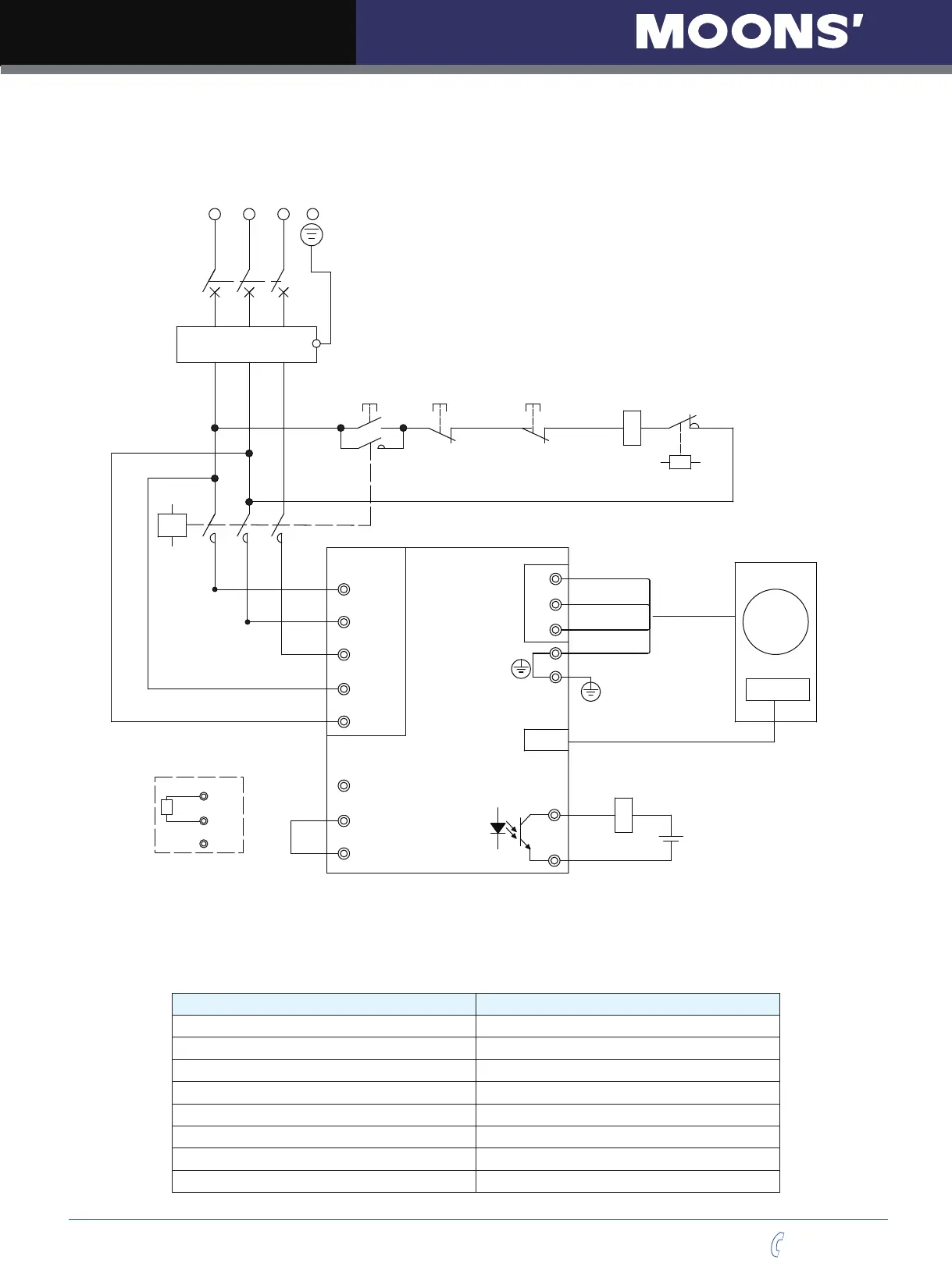

4.1.4.2 Three-Phase Power Supply Connection (AC220V)
MC
L1
L2
R
S
E
MCCB
P_on
P_off
MC
L1C
L2C
24VDC
Alm_R
NF
T
L3
MC
Alarm
Alm_R
E_stop
M
U
V
W
P2
CN3
Encoder
Encoder
Ground
M2 Servo Drive
B1+
B2
B3
B1+
B2
B3
Red
Y
ellow
Blue
Y
ellow/Green
Use Internal
regeneration resistor
Use external
regeneration resistor
Note:
Symbol
Description
MCCB
Circuit Breaker
NF
Noise Filter
P_on
Power On Switch
P_off
Power Off Switch
E_stop
Emergency Stop Switch
MC
Magnetic Contactor
Alm_R
Alarm Relay
Alarm
Alarm Relay Contactor
