M Series AC Servo
User Manual
25
Rev. 1.0
7/31/2019
400-820-9661

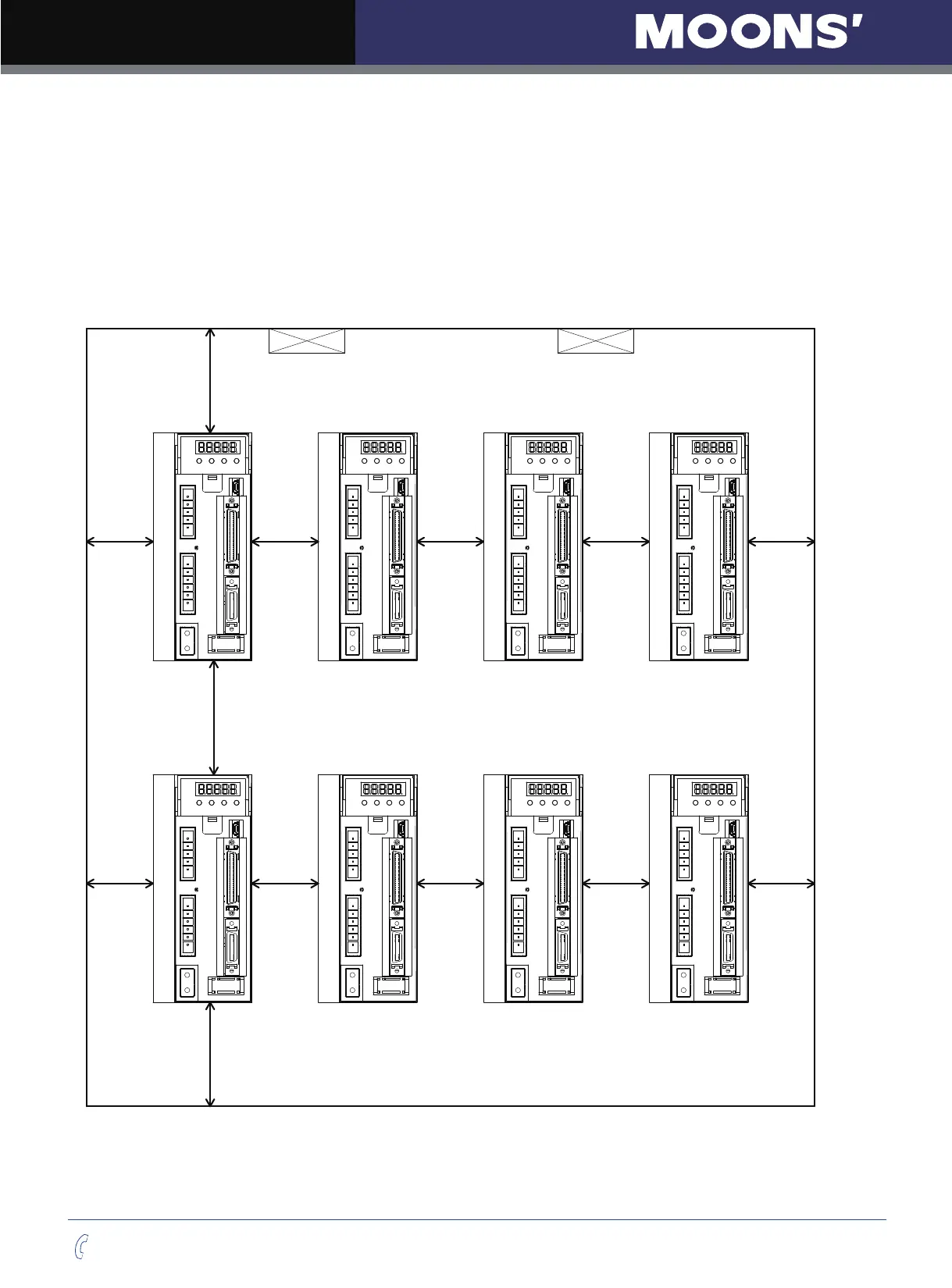

3.4 Installation Space
• Incorrect installation may result in a drive malfunction or premature failure of the drive and or motor.
Please follow the guidelines in this manual when installing the servo drive and motor.
• The M2 servo drive should be mounted perpendicular to the wall or in the control panel.
• In order to ensure the drive is well ventilated, ensure that the all ventilation holes are not obstructed
and sufficient free space is given to the servo drive, and a cooling fan is mounted in the control panel.
• Please ensure grounding wires are securely connected
Fan Fan
10mm 10mm 10mm20mm
20mm
100mm
80mm
100mm
10mm 10mm 10mm20mm 20mm
