Moons' M2 Series User Manual

M Series AC Servo
User Manual
97
Rev. 1.0
7/31/2019
400-820-9661
7.3.3.5 Run/Stop And Direction Signal
In analog velocity mode, external input X1 can set as run/stop switch, X2 can set as direction switch.
Signal Name PIN Signa Function Description
X1
X1+ (3) Closed
Velocity mode
run/stop switch
Motor running, analog voltage value defines rotary velocity.
X1- (4) Open
When switch is open, Motor stops rotary regardless of
analog input voltage.
X2
X2+ (5) Closed
Velocity mode
run/stop switch
Change motor rotating direction.
X2+ (5) Open Not in use.

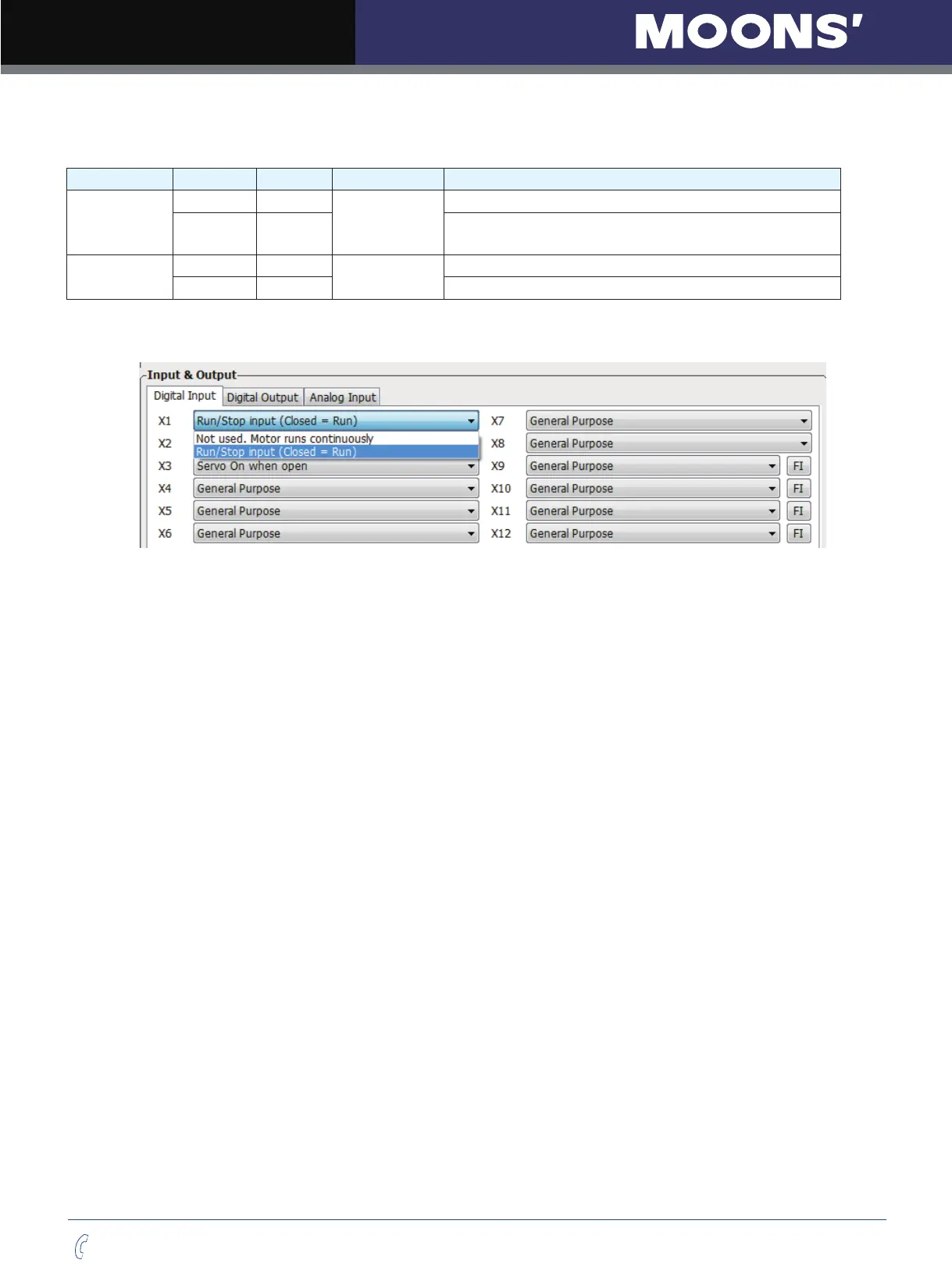

Setting Via Software
