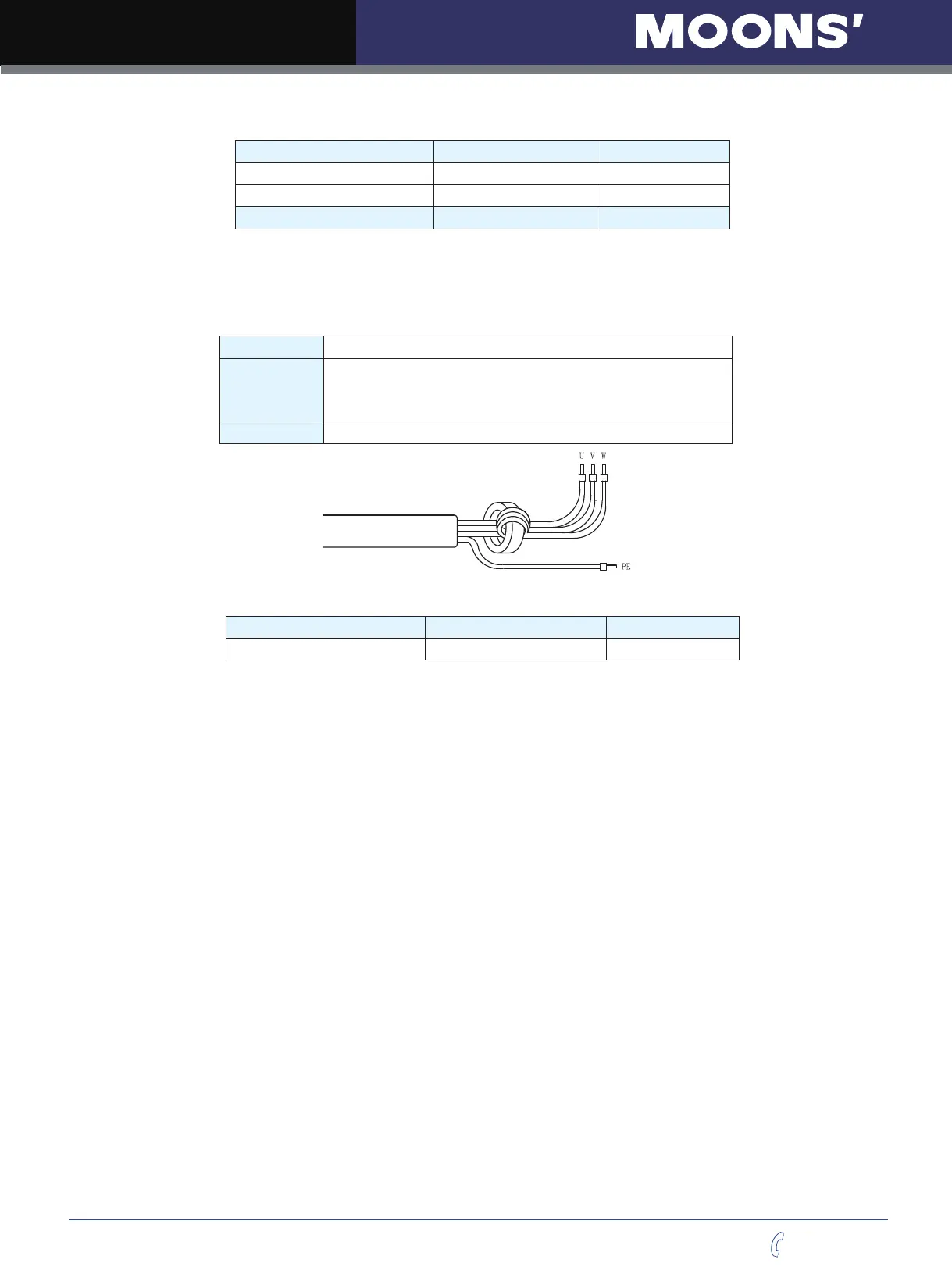

4.10.2 Recommended EMI noise filter
P/N Specifications Manufacture
M2-EMI10A 250VAC
，
10A LCR
10ET1 250VAC
，
10A TYCO
DF300-10A-01 250VAC
，
10A Dephir
4.10.3 Clamp noise filter for cable
Install noise filters for signal lines to all cables(Power cable, motor cable, encoder cable and I/O signal
cable)
Signal cable
Wind cables the 2-3 turns to form the signal noise filter.
Motor cable
Remove the cable’s jacket to the length so that wires can be wound
on the clamp noise filter for 2-3 turns. For effective noise reduction,
U/V/W should be wound togther, except the PE cable.
Encoder cable
Wind cables the 2-3 turns to form the signal noise filter.
4.10.4 Recommended clamp noise filter
MOONS’ P/N
P/N Manufacture
M2-OP3035 ZCAT3035-1330 TDK
