M Series AC Servo
User Manual
24
Rev. 1.0
7/31/2019
400-820-9661

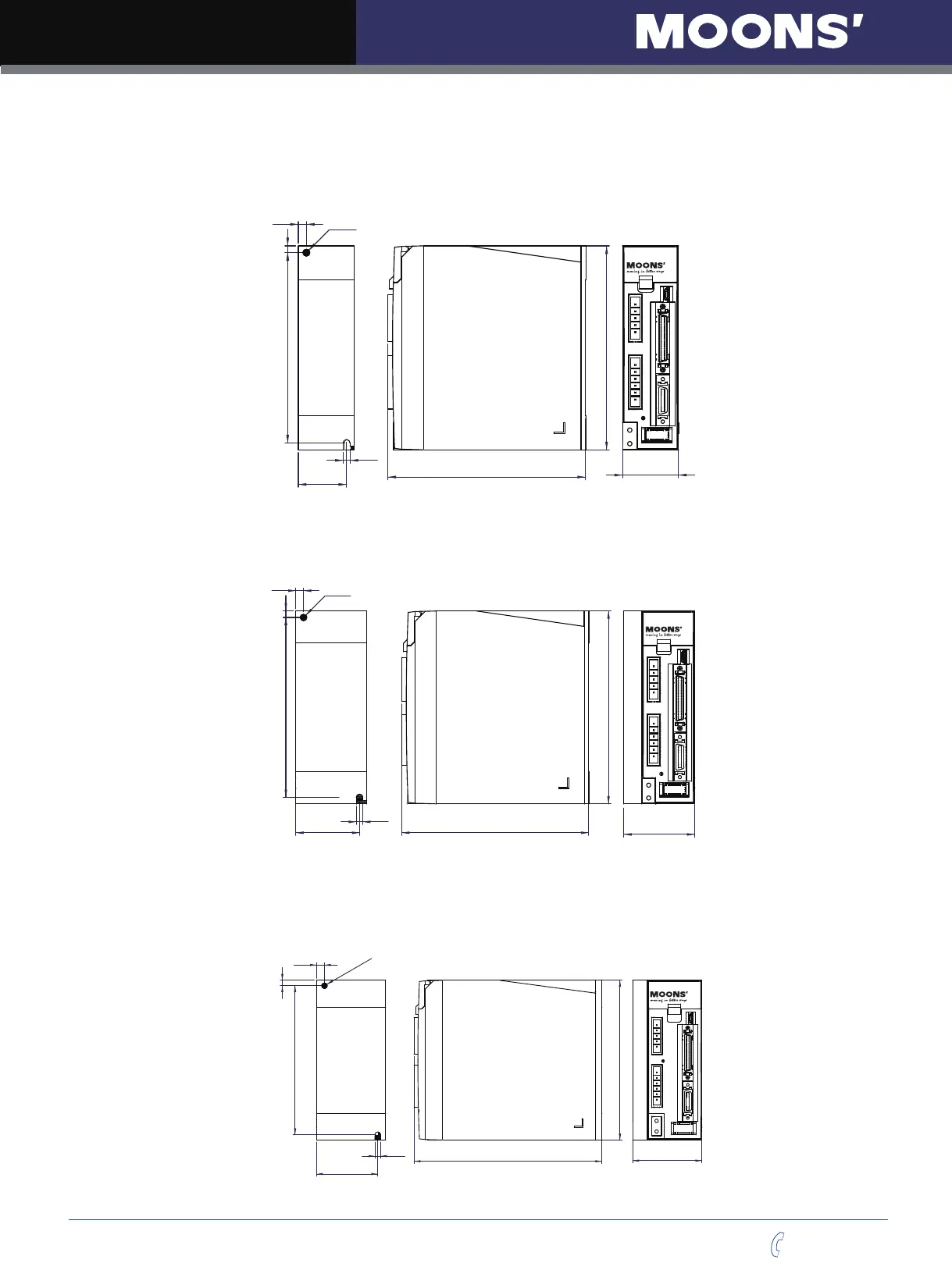

3.3 Drive Dimensions (Unit: mm)
3.3.1 50W 100W 200W Type
145
41
35.5
5
6
5
150
140
Ø5
3.3.2 400W Type
Ø5
145
5
6
5
55
49.5
150
140
3.3.3 750W Type
Ø5.2
176
65
57.5
7.5
5.2
150
140
5
