7.5.1.4 Print
Click on
“
Print
”
to print out the configurations table, as shown in Figure 7.5.6 Print Position Table
configuration below:

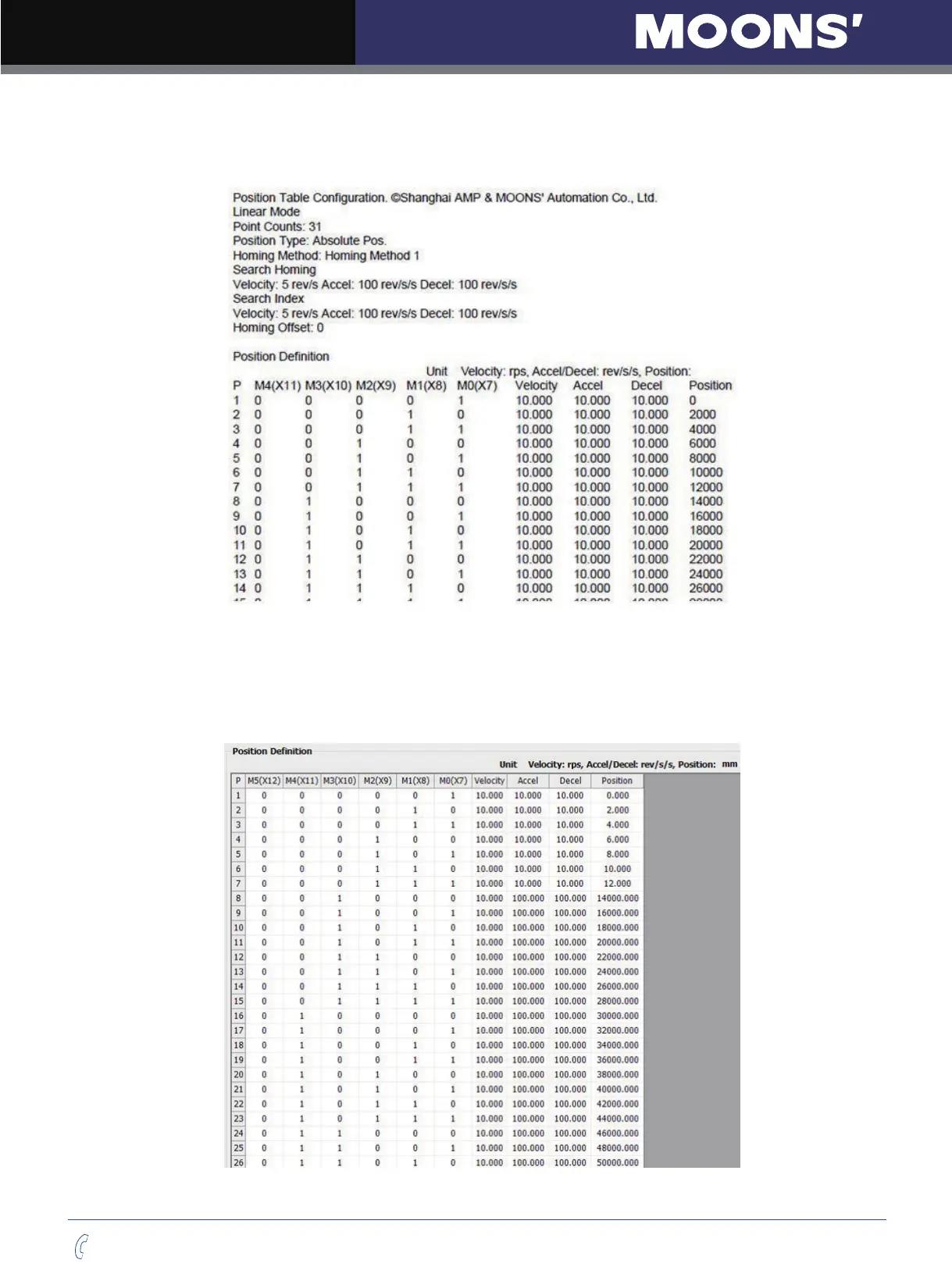

Figure 7.5.6 Print Position Table configuration
7.5.1.5 Position Denition
Positon Definition shows the detailed configurations for each position point, including velocity, acceleration
and deceleration, position. In this table, it also shows the input condition (X7~X12) totrigger each position.
Figure 7.5.7Position definition table
