11.6 The installation and commissioning guidance
11.6.1 Installation
We have been making the best effort to ensure the highest quality .however application of exceptionally
large external noise disturbance and EMC disturbance may result in unexpected action. It is highly
recommended that you make a fail-safe design and secure the safety in the operative range. For the drive
installation .You may refer to the 3.4 chapter. STO safety function connect as following.

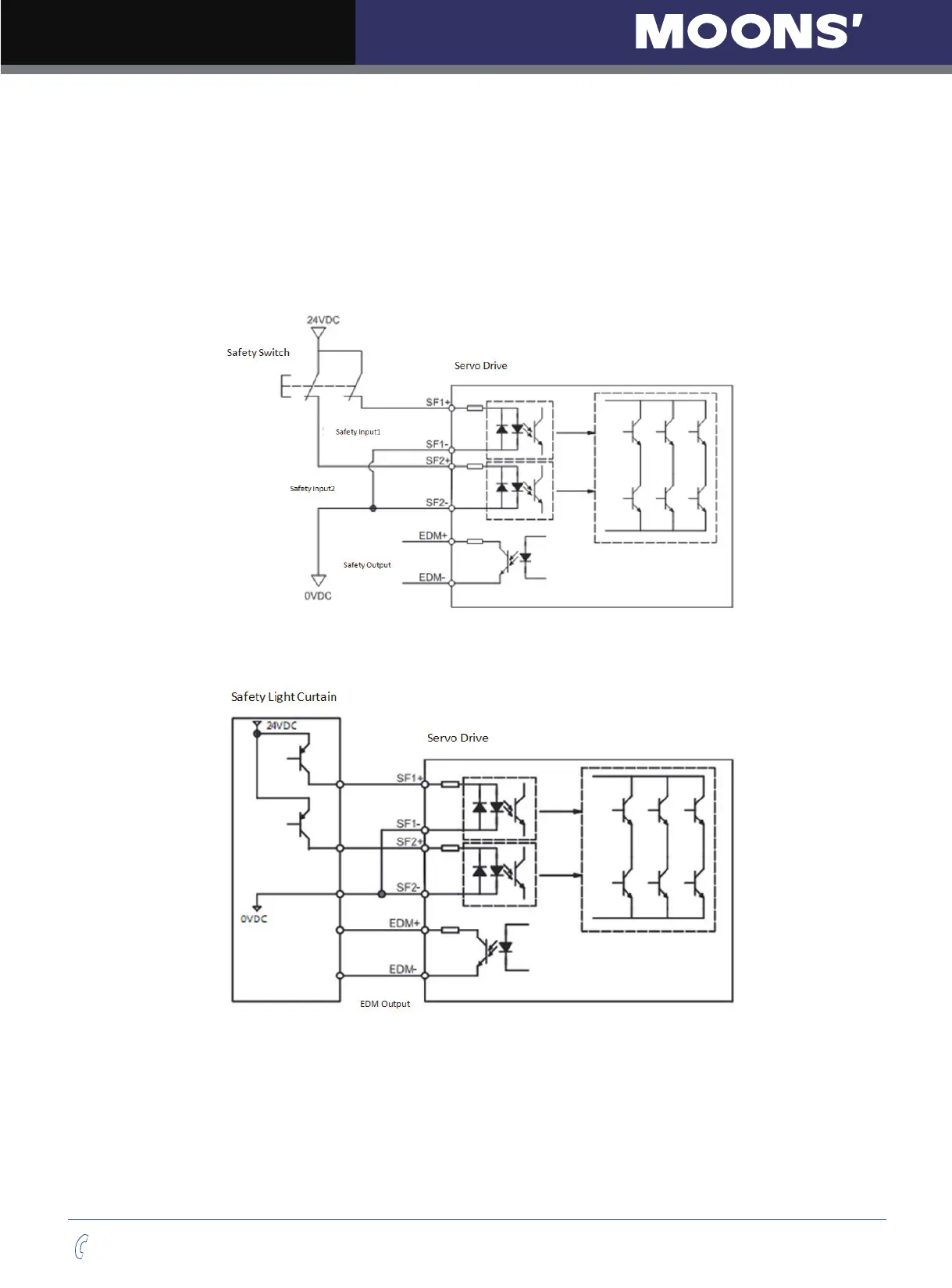

11.6.1.1 Example of connection to safety switch
11.6.1.2 Example of connection to safety Light Curtain
Note: EDM output, user can connect the power to 24VDC(max), 100mA(max),limit resistance is
necessary.
