M Series AC Servo
User Manual
68
Rev. 1.0
7/31/2019
400-820-9661
5.7 Control Panel Lock
In order to prevent faulty use on key panel, key panel lock is featured on all M2AC servo drives. When
lock function is on, no function can be changed directly on drive
s control panel.

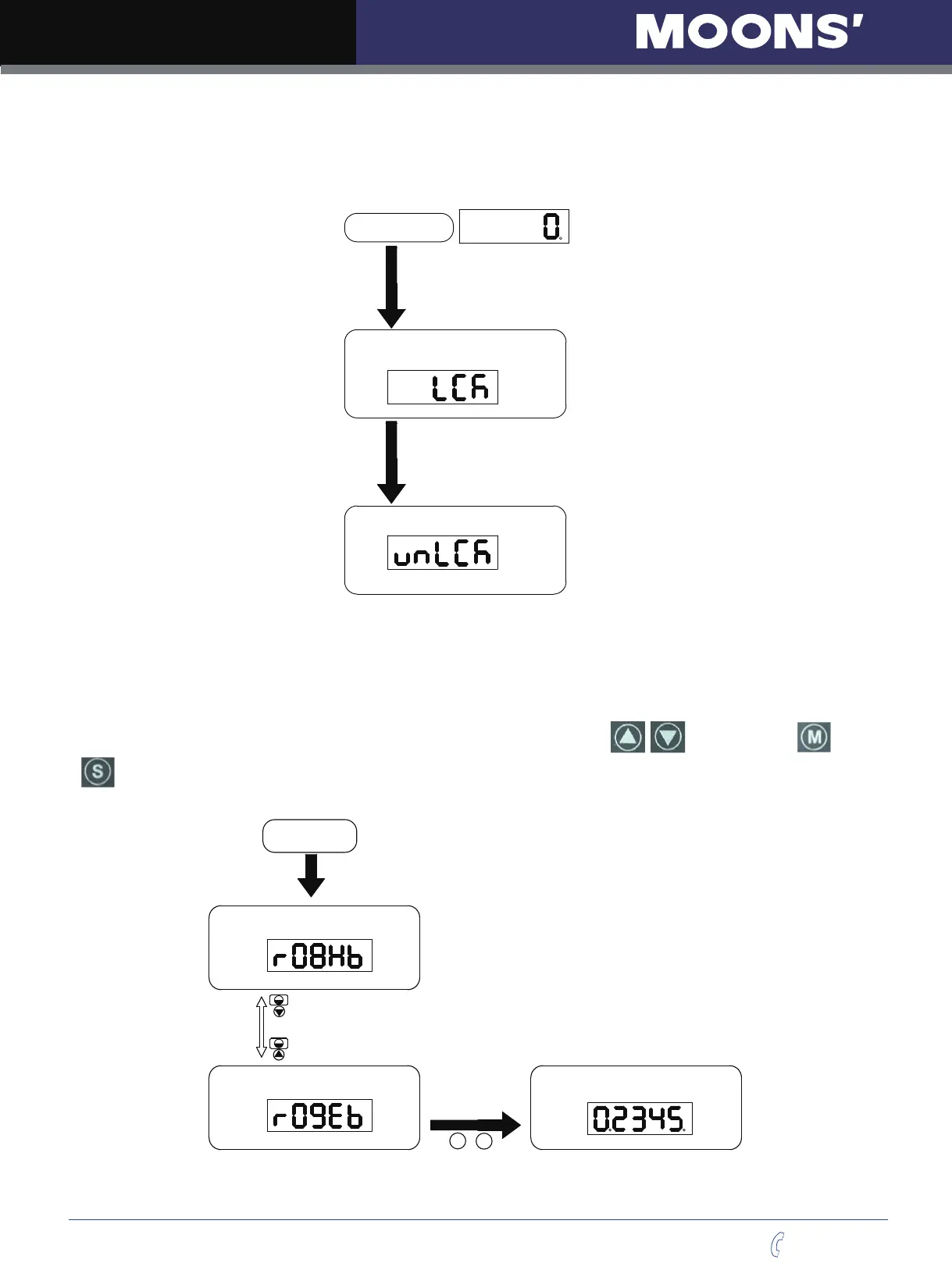

Status monitoring
Press and hold set key
for 1 second
If control panel is locked,
press any key will show lck
In control parameter lock mode,
press and hold set key
for 1 second will unlock
Unlock display
5.8 Warning And Fault Display
When power is applied, if any of the following warnings are detected by the drive, the LED display on the
drive will switch into warning or fault display mode immediately.
If more than one warning is detected, you can scroll through by press
button. Press or
button to clear the warning display and back to pervious display mode.
Encode Hall Failure
Any Mode
Warning And Fault Alarm Occurs
If More Than 1 Alarm Has Occur,
Press Up And Down Key To Scroll Through
Encode Fault
Pervious Monitoring Mode
S
Press Set And Mode Key
To Return From Alarm
Display Mode
M
