M Series AC Servo
User Manual
37
Rev. 1.0
7/31/2019
400-820-9661

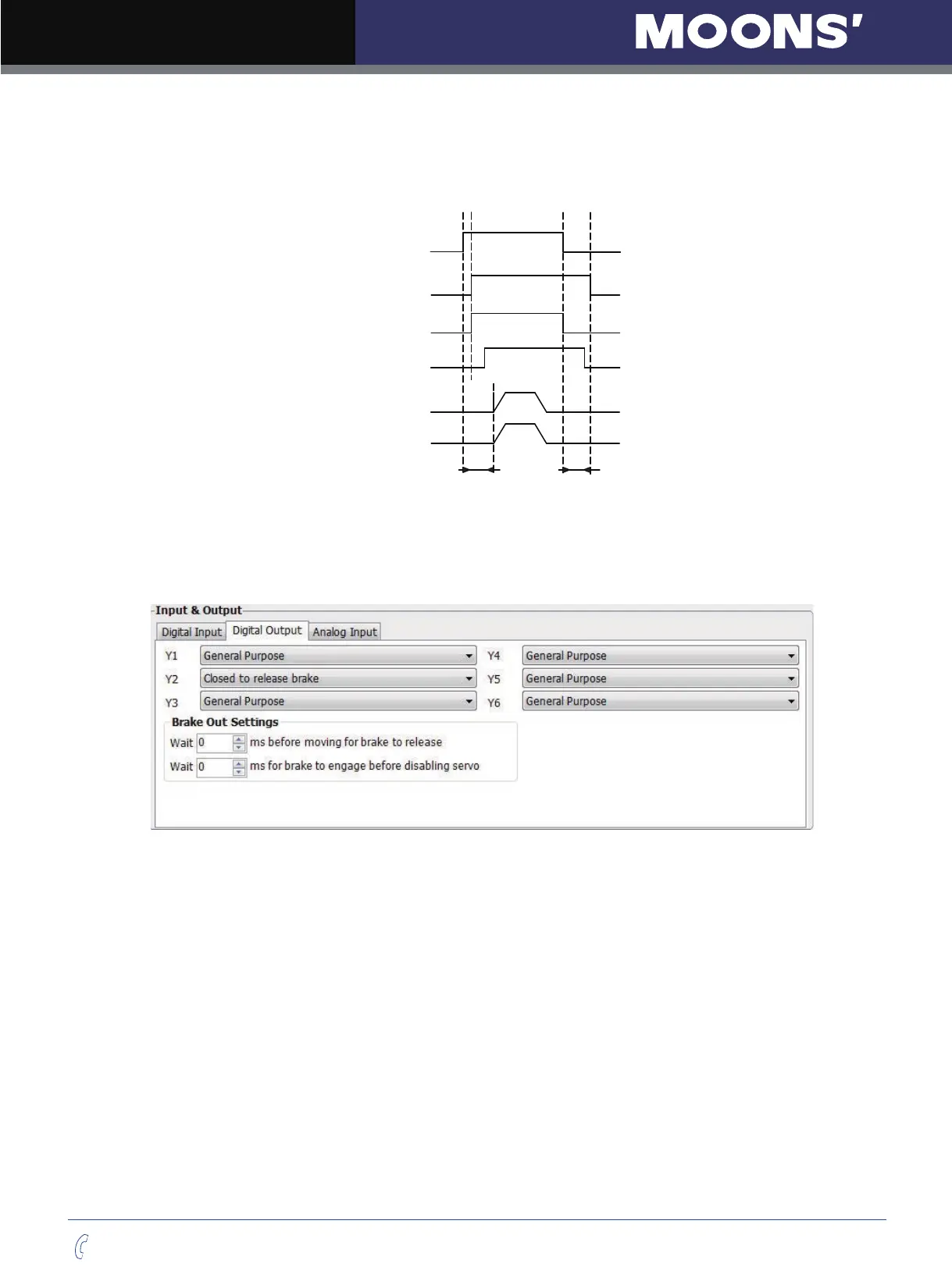

4.4.3 The Timing Charts Of The Electromagnetic Brake
In order to prevent damage to the brake, there are delay sequences during the brake operation. Please
be cautious with brake operation sequence.
Servo-on In Put
OFF
ON
Motor Active
OFF
ON
Brake Action
OFF
ON
Brake Signal
OFF
ON
Motion Command
OFF
ON
Actual Motion
OFF
ON
Brake Release Delay
P-68 Setting
Brake Engage Delay
P-69 Setting
Brake engage/disengage delay time can be set via M servo suite software, or on the drive directly via P
function: P-68 (BD) or P-69 (BE).
