M Series
AC Servo
User Manual
49
Rev
. 1.0
7/31/2019
400-820-9661
4.8.3.4
General Digital Input X5
、
X6
、
X7
、
X8
M2 series
AC servo drive has 4 Optically isolated general digital inputs X5
、
X6
、
X7
、
X8. It allows input
voltage range 5VDC-24VDC, with maximum input current of 20mA
up to 5KHz. Both single ended and
differential signal is allowed.
X5
、
X6
、
X7
、
X8

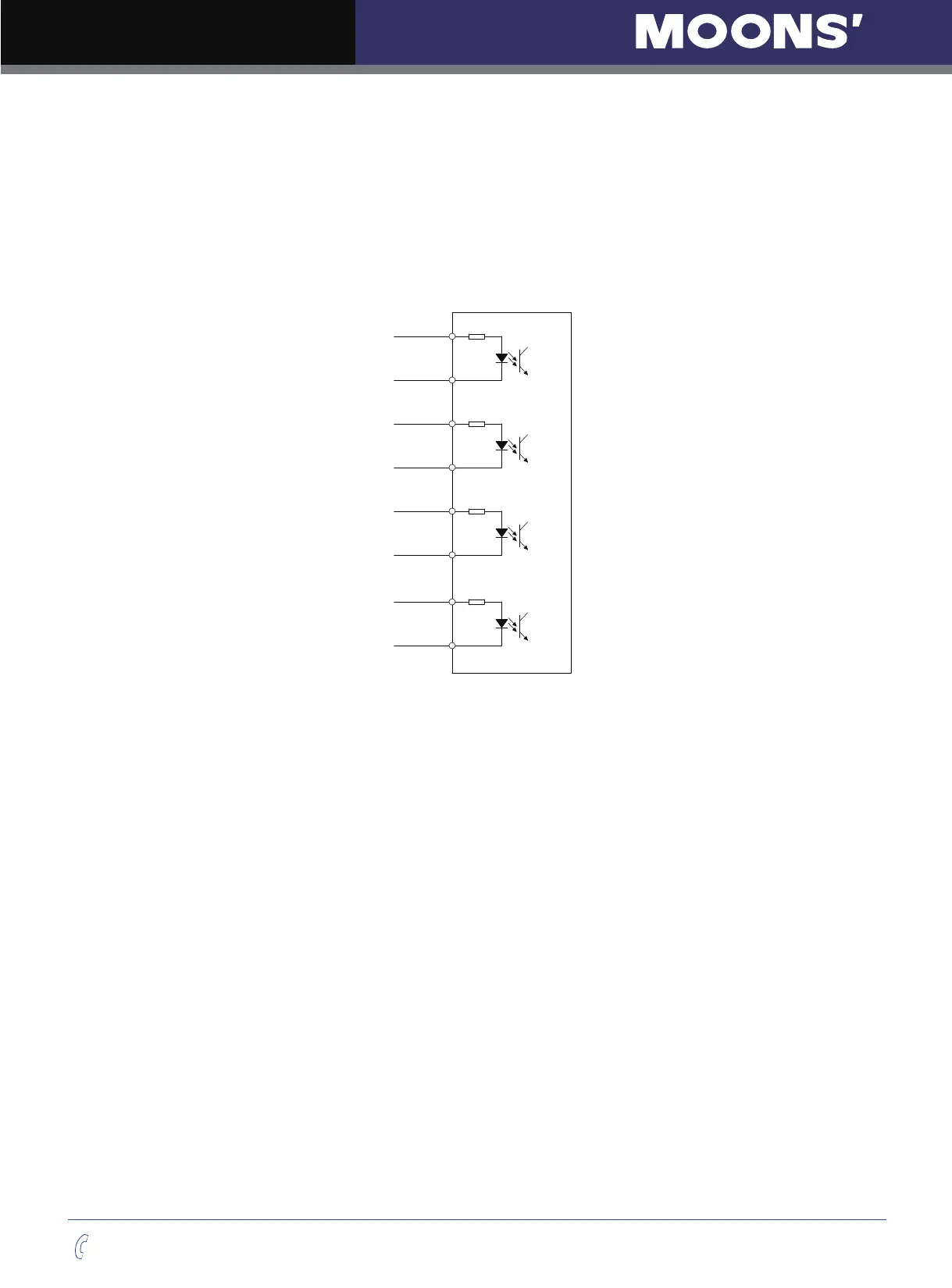

Circuit Are As
Follows:
8
X5+
2
X5-
9
X6+
1
X6-
39
X7+
38
X7-
12
X8+
32
X8-
48
50
