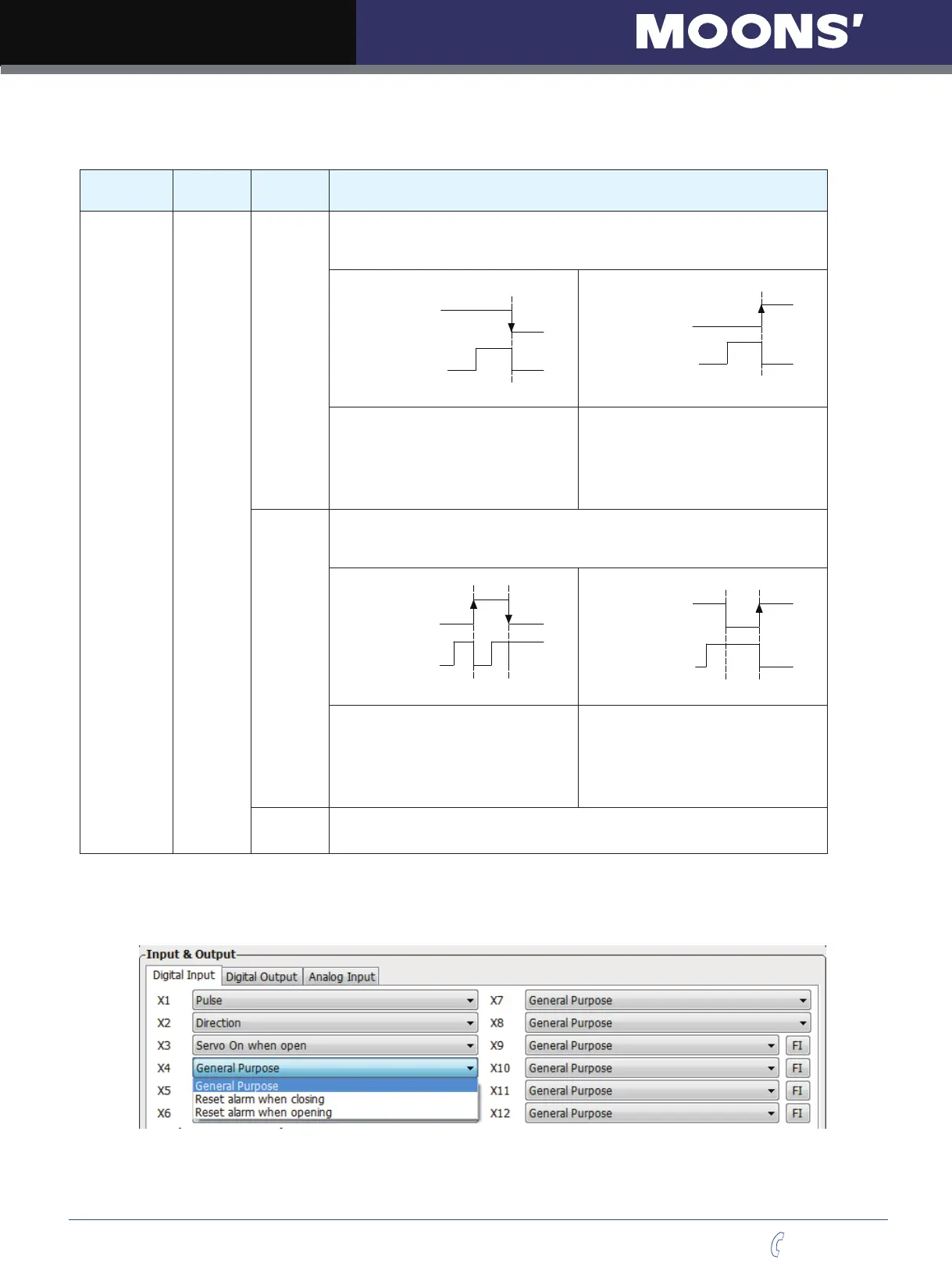

7.1.2 Alarm Reset
It is used to clear drive warnings or faults, it can be set via P-63 (AI)
Signal
Name
PIN
(CN2)
P-63 (AI) Function
X4
35 (X4+)
34 (X4-)
1
During normal operation, input X4 must keep Open (HIGH). Change will
ONLY be trigged at the change of signal. When X4 changes from Open
(HIGH) to Close (LOW), the warning or fault alarms will be cleared.
X4
Low
High
A
Fault
None
Occur
A
X4
Low
High
Fault
None
Occur
1) X4 at HIGH, alarm NOT cleared
2) At point A, X4 change from HIGH
to LOW, alarm is cleared
1) X4 is low, alarm NOT cleared
2) At point A, X4 change from LOW
to HIGH, alarm NOT cleared
3) At point B, X4 change from HIGH
to LOW, alarm cleared
2
During normal operation, input X4 must keep CLOSED (LOW). Change will
ONLY be trigged by the change of signal. When X4 changes from CLOSE
(LOW) to OPEN (HIGH), the warning or fault alarms will be cleared.
X4
Low
High
Fault
None
Occur
A
B
X4
Low
High
A
B
Fault
None
Occur
1) X4 at LOW, alarm NOT cleared
2) At point A, X4 change from LOW
to HIGH, alarm cleared
3) At point B, X4 level from high to
low, the alarm does not clear
1) X4 is HIGH, alarm NOT cleared
2) At point A, X4 change from HIGH
to LOW, alarm NOT cleared
3) At point B, X4 change from LOW
to HIGH, alarm cleared
3
(default)
General purpose input
Software Configuration
In drive configuration page ----- Input & output select X4 functions to setup.
