4.8.3.3 High Speed Input Port X1,X2,X3,X4
A. High Speed Input Port
M2 series AC servo drive has 4 Optically isolated high speed digital inputs X1
、
X2
、
X3
、
X4.
These inputs allow input voltage from 5VDC~24VDC with maximum current of 20mA, and up
to 500KHz. They can be used for general propose inputs, connecting sensor switch signals,
PLC controllers or other types of controller output signals.
NOTE: When drive is in position mode, X1, X2 can ONLY be set as STEP/DIR signal.
When drive is NOT in position mode, X1, X2 can be set as general purpose signals.
X1
、
X2
、
X3
、

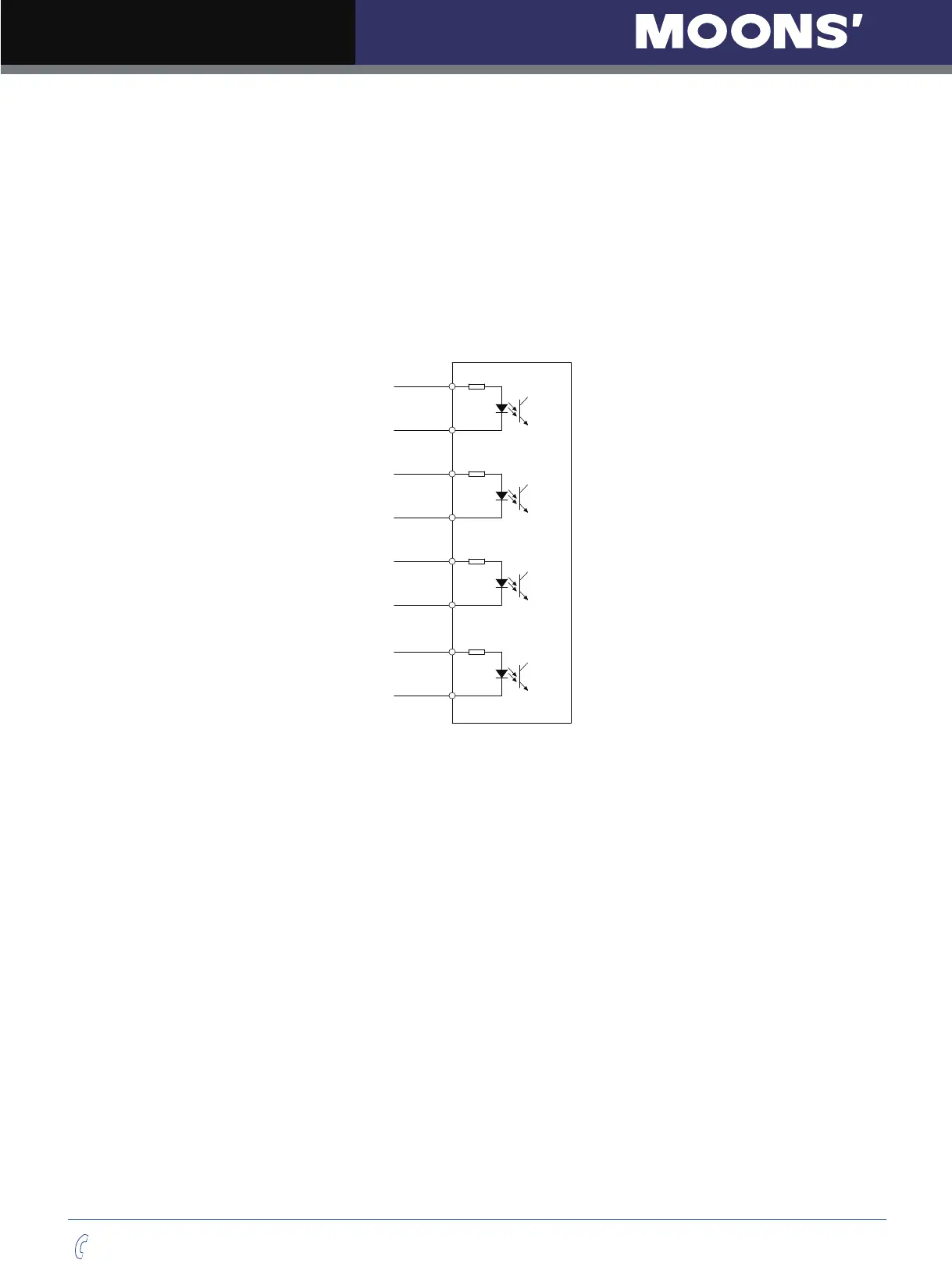

X4 Circuit Are As Follows:
3
X1+
4
X1-
5
X2+
6
X2-
29
X3+
31
X3-
35
X4+
34
X4-
