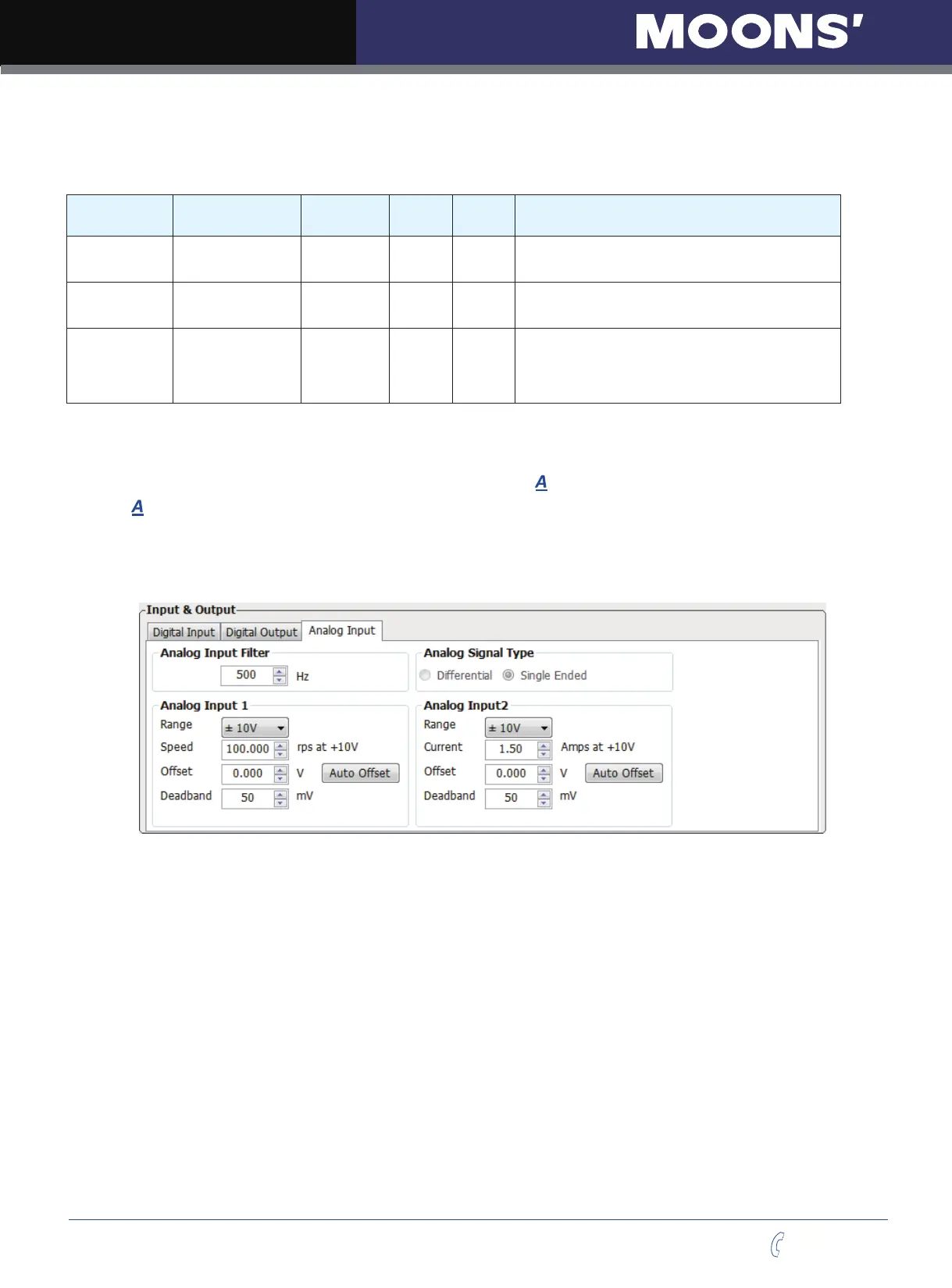

7.3.3.6 Torque Limit
In single ended analog mode, analog input 2 (ANA2) can used to set motor
s output torque.
Parameters Setting
Parameter Name
Data
Range
Default
value
Unit Description
P-55 (AS) Analog type 0~1
0
Analog input type
0: Single ended input 1: Differential input
P-62 (FA2)
Analog 2 function
setting
1~3
3
Analog input port 2 function setting:
2: Torque limit setting 3: Not in use
P-51 (AN)
Analog Torque
Gain
Based on
drive
s
output
ability
1 A
Sets correspondent torque output value against
10VDC input voltage.
NOTE: if you need to view or set this value on drive
s control panel (P-51 (AN)), please refer to
following calculation:
Drive display value=
x 100
where
is target torque output value
Setting Via Software
