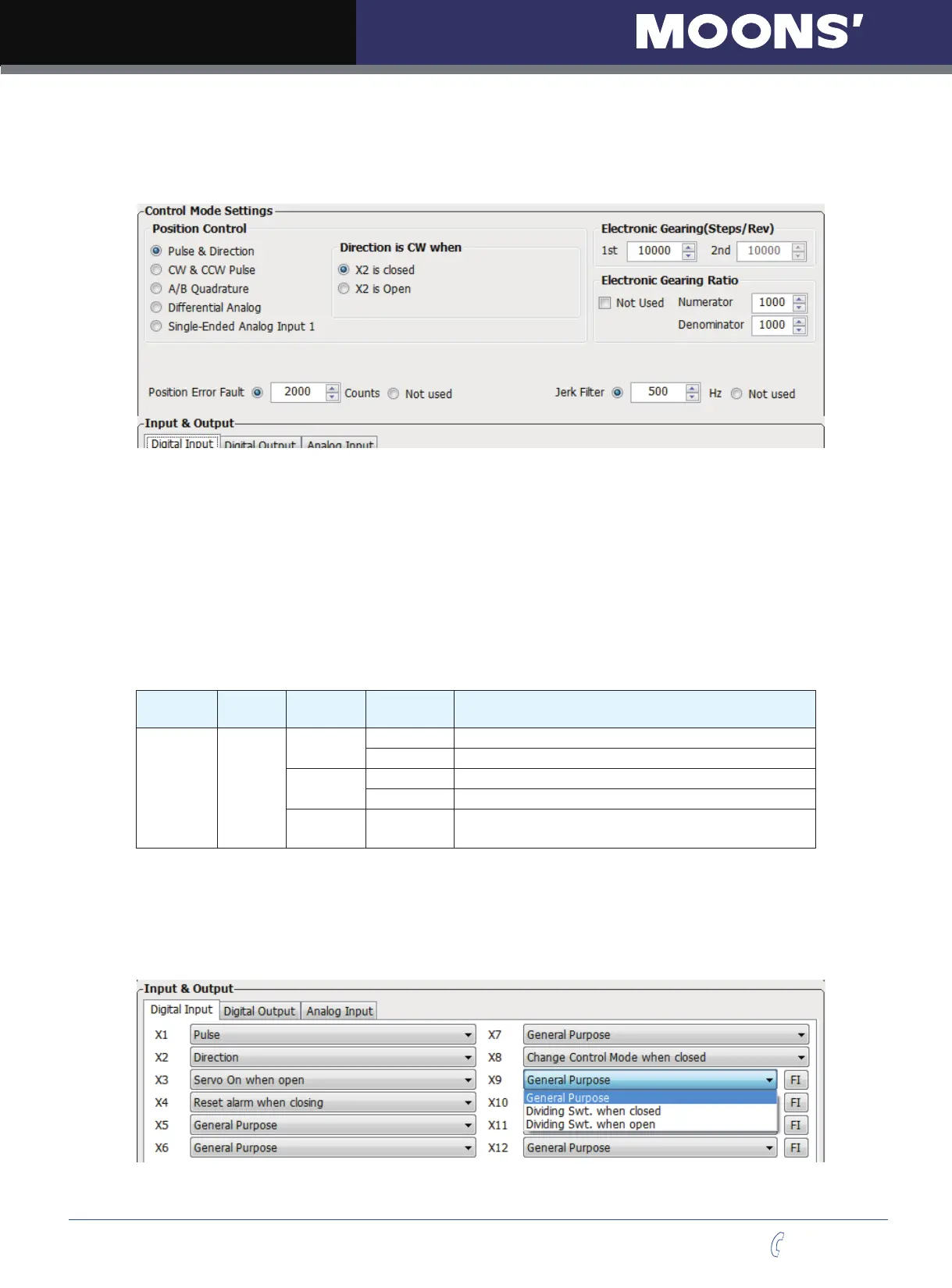

Software Configuration
In software motor configuration page----control mode settings to select pulse input type and input
filter type.
7.2.3 Control Pulse Dividing Switch Function
X9 is used as control pulse dividing switch function. When this function is on, it will allow the drive to
change the number to encoder counts for per motor revolution. The first pulse dividing ratio is set via
parameter P-39 (EG), the second pulse dividing ratio is set via P-40 (PV). Parameter second digit of P-65
(MI) (right to left) is used to set switching conditions.
In factory default mode, pulse dividing switch is disabled. It can be set by M servo suite software or
parameter P-64 (MI) directly from the drive’s panel function.
Signal
Name
PIN P-65 (MI) Condition Function
X9 X9 (26)
□□
1
□
Closed Use 1st pulse dividing ratio ------ P-39 (EG)
Open Use 2nd pulse dividing ratio ------ P-40 (PV)
□□
2
□
Closed Use 2nd pulse dividing ratio ------ P-40 (PV)
Open Use 1st pulse dividing ratio ------ P-39 (EG)
□□
3
□
(default)
Always use 1st pulse diving ratio ----P-39(EG)
NOTE: Please ONLY use pulse dividing ratio function, when no pulse command is sending
into the drive. I.e. motor is NOT moving.
Software Configuration
In drive configuration page-------input/output select X9 function to setup pulse dividing switch function.
