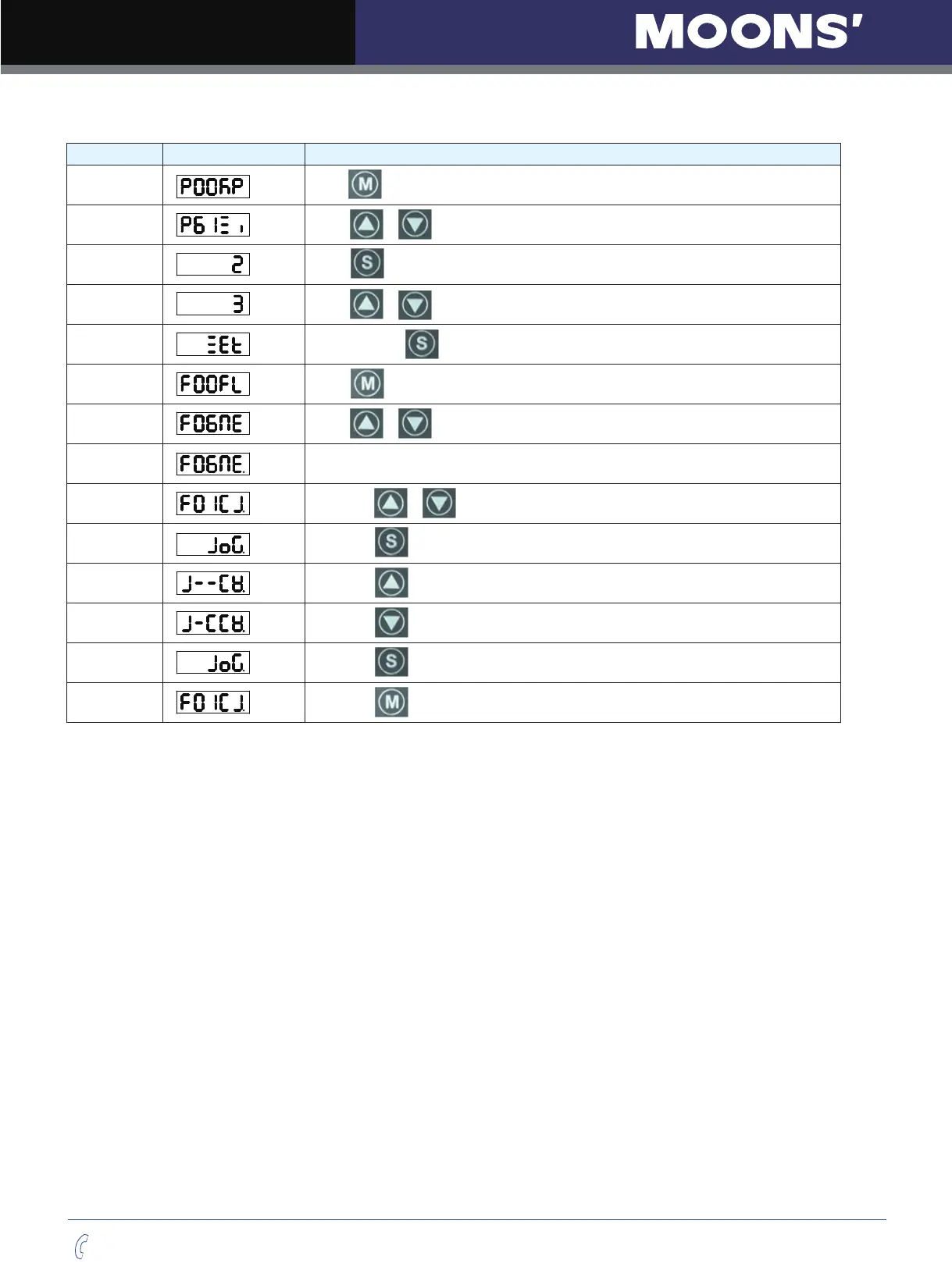

6.4 Operations of JOG Mode
Step LED display Description
1
Press to switch the Monitor Status mode into the Drive Parameters Configuration mode
2
Scroll
、
key to select parameter P62 (SI)
3
Press key into value setting mode
4
Scroll
、
key to change values.
5
Press and hold key for 1 second to conrm the setting value.
6
Press key into the Function Operation mode.
7
Scroll
、
key to select Function F06 (MC) to enable the motor.
8
Press and hold SET key for 1 second, the drive will be enabled. The last dot will light to
shows the drive is enabled.
9
Scroll the
、
key into function F01 (CJ) to run JOG mode.
10
Press the key into JOG mode
11
Press the key ,the motor will rotate at CW direction with the speed 1rps.
12
Press the key ,the motor will rotate at CCW direction with the speed 1rps.
13
Press the key to stop the motor
14
Press the key back to the Function Operation mode.
