Moons' M2 Series User Manual

M Series AC Servo
User Manual
61
Rev. 1.0
7/31/2019
400-820-9661

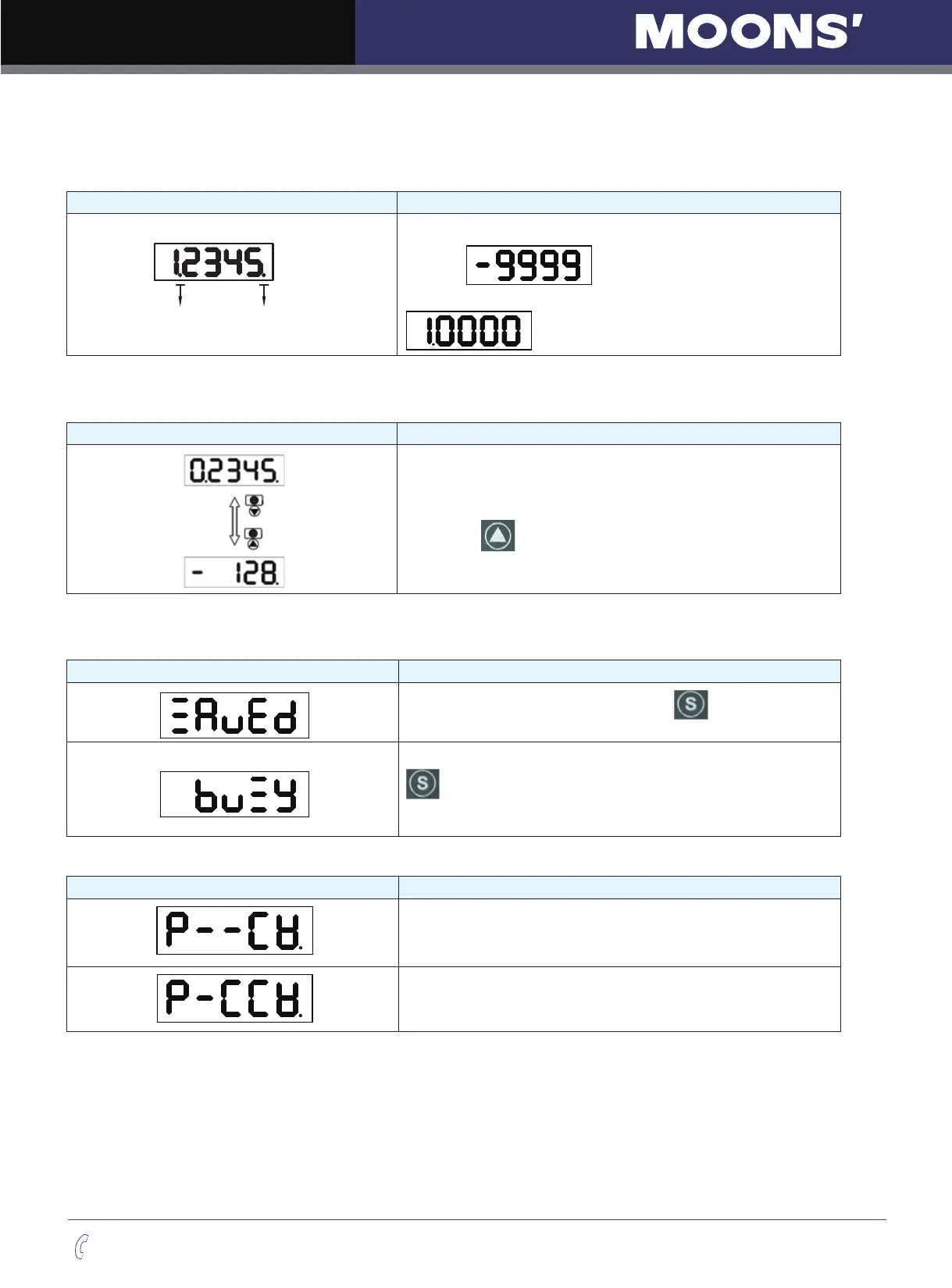

5.3 LED display description
5.3.1 Decimal Point And Negative Sign Description
LED display Description
negative
sign
motor enable
sign
Negative sign: when display value ≥-9999, the highest digit will show
as
‘
-
’
. i.e.
, as
‘
-9999
’
When display value≤-10000, the negative sign will be shown,
, as
“
-10000
”
5.3.2 Parameter View Setting
LED display Description
There are only 5 digits on the LED display, when more than 5 digits
are needed, it will show as following:
When the highest digit is flashing, it means the lower 5 digits are
show. Press
to show the upper 5 digits.
The graph is showing
‘
-12802345
’
5.3.3 Parameter Save Setting
LED display Description
In parameter setting mode, press and hold key will save the
changing parameter.
‘
Saved
’
will also be shown display on the LED.
In parameter setting mode when motor is rotating, press and hold
, LED display will show status as busy. It means that the
current parameter cannot be saved, please stop the current motor
motion and save the parameter again.
5.3.4 Point To Point Motion Mode
LED display Description
P-CW means motor are rotating in CW direction under point-to-point
mode
P-CCW means motor are rotating in CCW direction under point-to-
point mode
