Moons' M2 Series User Manual

M Series AC Servo
User Manual
62
Rev. 1.0
7/31/2019
400-820-9661

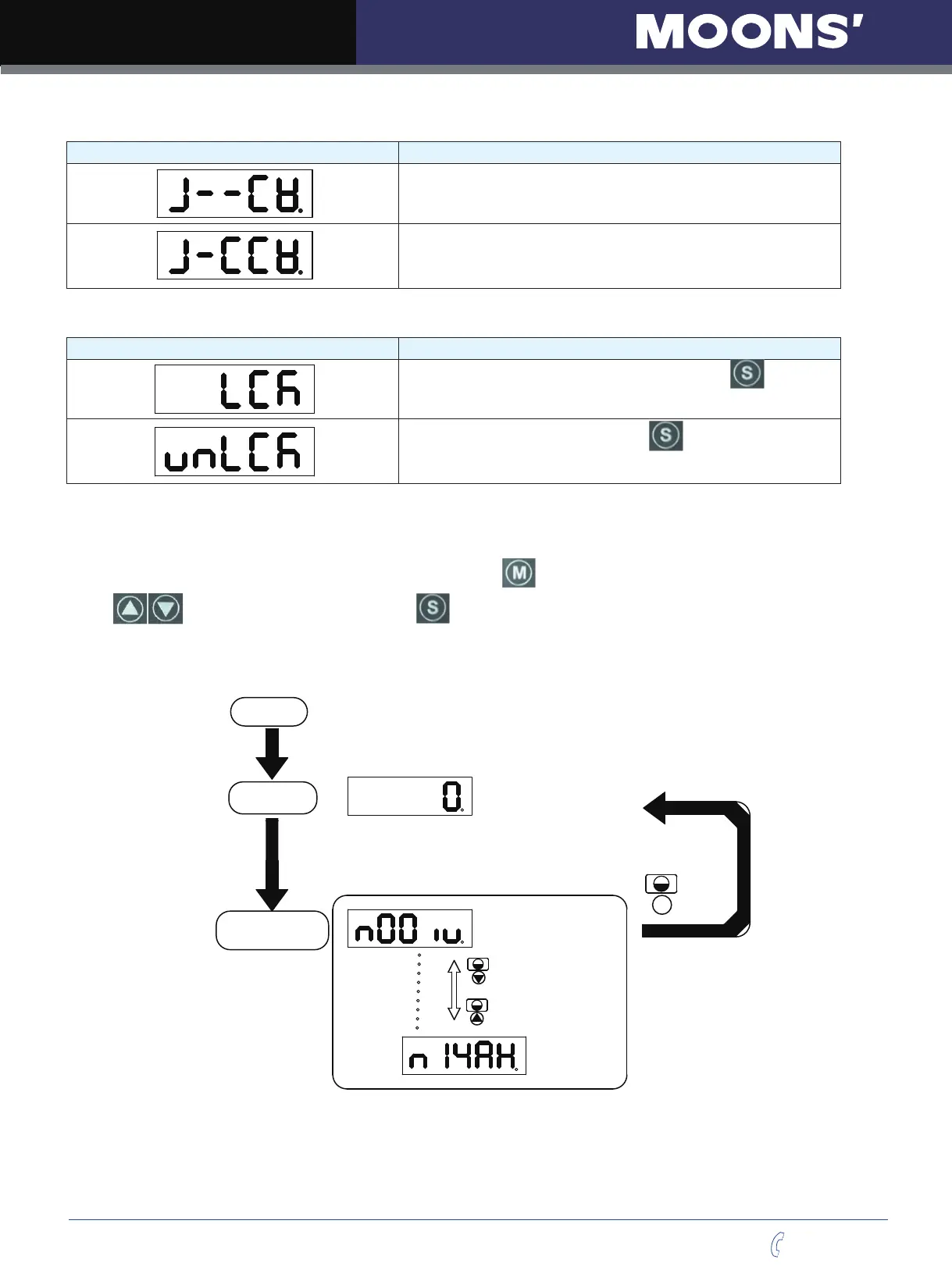

5.3.5 Jog Mode
LED display Description
J
—
CW means motor rotating in CW direction under JOG mode
J
—
CCW means motor rotating in CCW direction under JOG mode
5.3.6 Control Panel Lock
LED display Description
This means the key panel is locked. Press and hold for 1
second under status monitoring mode to lock.
When control is locked. Press and hold for 1 second to unlock
the key panel.
5.4 Status Monitoring Selection Mode
To change the status monitoring type, please press to enter monitoring selection mode, and then
use
to make selections, and press to confirm. Steps are shown as follows:
Default display is current motor velocity
The last decimal point is drive enable sign
Press UP and
DOWN key
to select display
detail.
S
Press SET key to
select display mode
Stats Display
Power ON
Status Monitoring
Selection
Press Any Key
