MC2000 – Assembly Instruction Manual

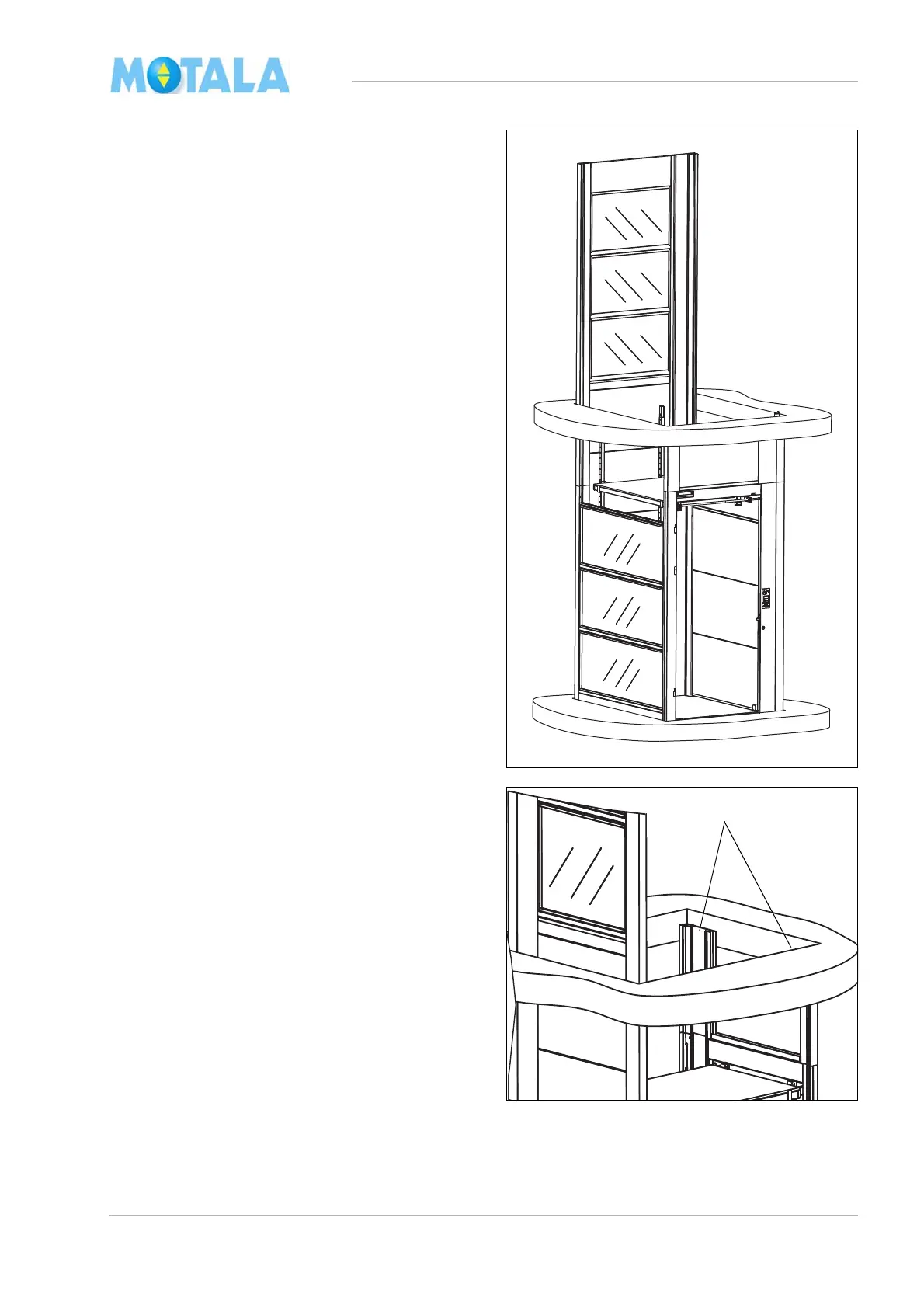

In this example side C is also fitted with glass
modules and therefore a precision gauge block
is needed for the joist passage and a second
one is needed as a finish at the well top.
4. Construct precision gauge blocks, see the
headi
ng “Construction of precision gauge
blocks”, on page 7.
5. Set up no more than 3 or 4 modules.
6. Align and fasten side C with screws in the
same
way as you did for landing 0.
Corner profiles, side A
7. Push the two corner profiles into the door
fr
ame. For length, see the checklist. (The
corner profiles ascend through the joists so
that the door frame of landing 1 can be
placed on top of these profiles.)
