MC2000 – Assembly Instruction Manual
13. Note! For adjacent lifts and two-entrance
lifts, remember that you need a channel for
cables and wires in the lift well walls. The
retiring ramp is always on the same side as
the motor and the gear, see “Layout draw-
ing” on page 48.

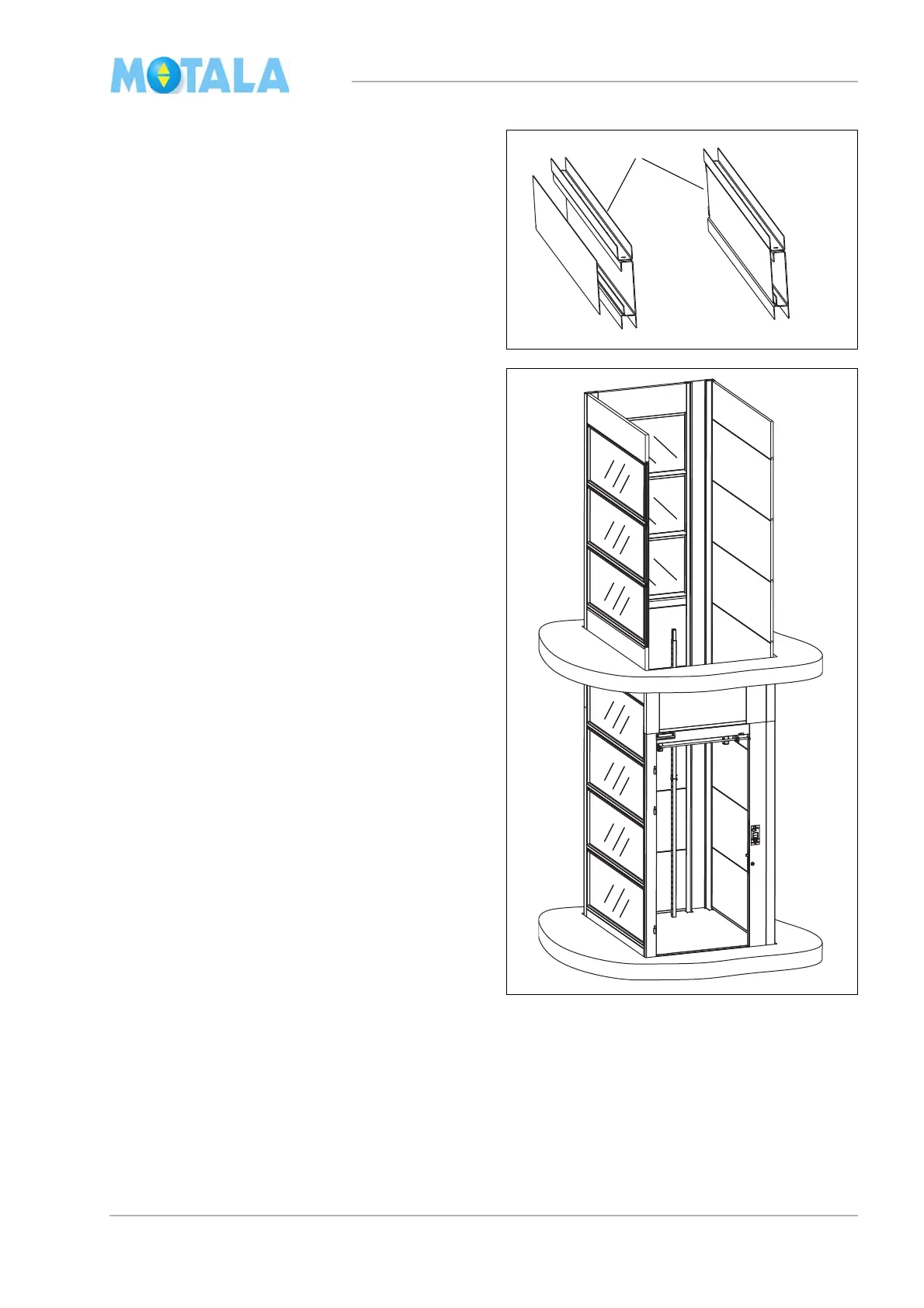

14. Install the modules on sides B and D.
15. Cut the modules about 2 mm shorter than
th
e corner profiles.
16. Set up the U-profiles.
17. Fasten the sides with screws just as you
di
d on the previous floor.
