MC2000 – Assembly Instruction Manual

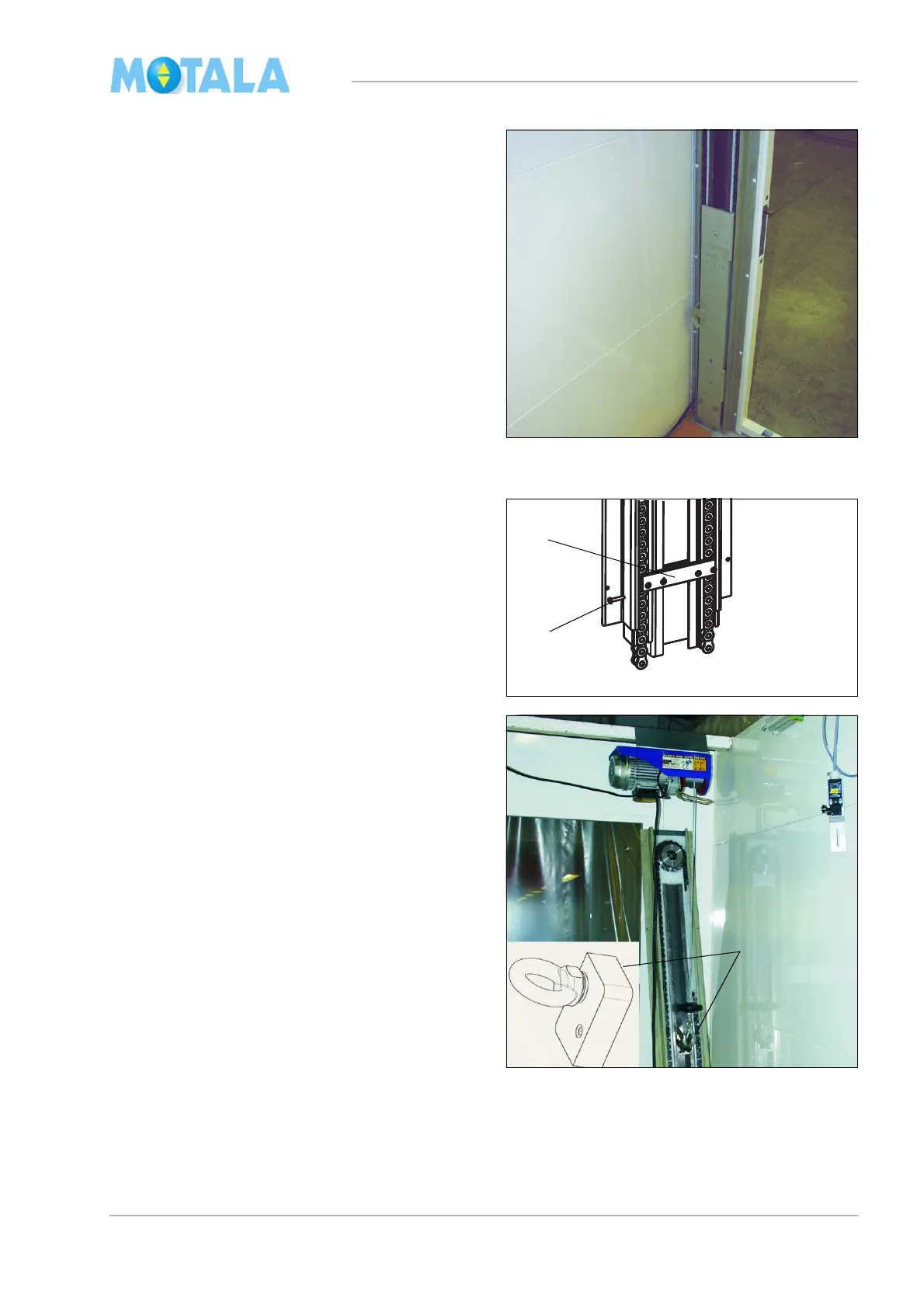

Upper guide rails
2. Place the guide rails in the very corners
wi
th the mounting brackets turned towards
the lift well wall. Check that the lower end
of the guide rail is on the same level as the
lower edge of the lift well, i.e. take the
shims, if any, into consideration
3. Secure the guide rails with screws. Note!
Use 25
mm screws. Check that you do not
screw through any cable or door lock.
1. Install the chain fixing device.
2. Remove the two plate screws (transport
l
ocking) that keep the chain in place in
each guide rail.
3. Erect the adjustable mounti
ng rod between
two of the walls of the lift well.
4. Attach the lifting winch to the mounting rod.
5. Lift the guide rails into the lift well.
6. Install a lifting loop on one of the guide
ra
ils.
7. Lift the guide rail. Check that it is installed
i
n its correct position, see the marking in
the guide rail profile..
