MC2000 – Assembly Instruction Manual
38

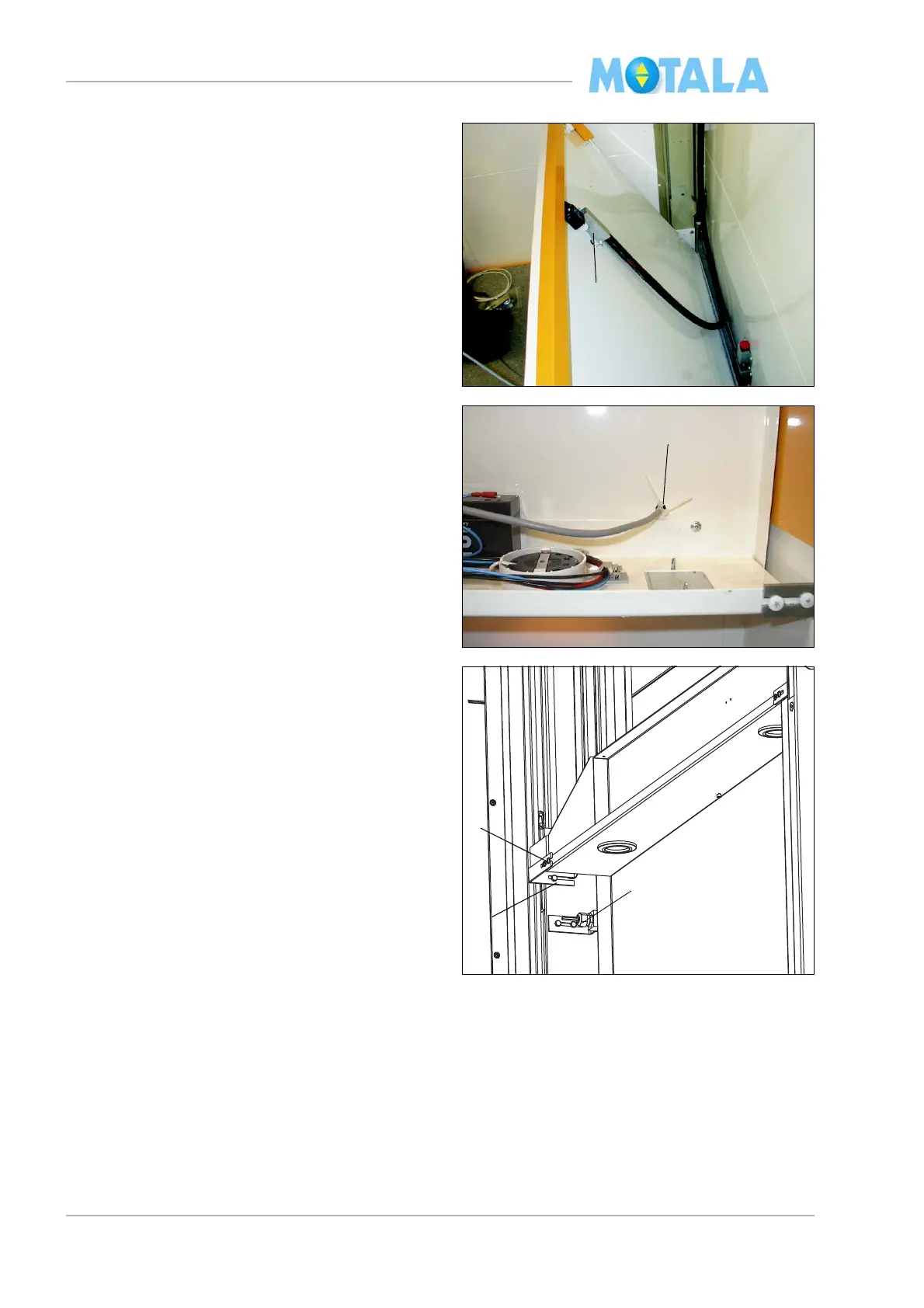

11. Place the panel plate on the platform.
12. Thread the travelling cable through the
hol
e “nearest the side as the cable hangs
on” in the panel plate and secure the cable
with U-fasteners. Note! Check that the
screws are not placed under the panel
shelf or damage the shelf components.
13. Thread the cable from the floor sensitive
edge
contacts trough the hole. Stretch it
and lock it with cable tie.
14. Fasten the two angle brackets for the panel
she
lf with hexagon-headed screws, M6x10,
and plain washers in each slide.
15. Fasten the angle brackets in the panel
pl
ate with self tapping screws. Adjust the
position of the brackets with the screws so
that the panel plate is in an exact central
position between the slides.
16. Adjust the distance between the sensetive
edge
list of the panel plate and the lift well
wall. The distance should be 10-15 mm,
maximally 15 mm. Adjust the distance by
loosening the hexagon-headed screws.
17. Fasten the fixing with contacts 66:,61: (if
any
) and 51: in the upper pre-drilled holes
in the slide on the opposite side of the side
where the motor is placed.
