MC2000 – Assembly Instruction Manual

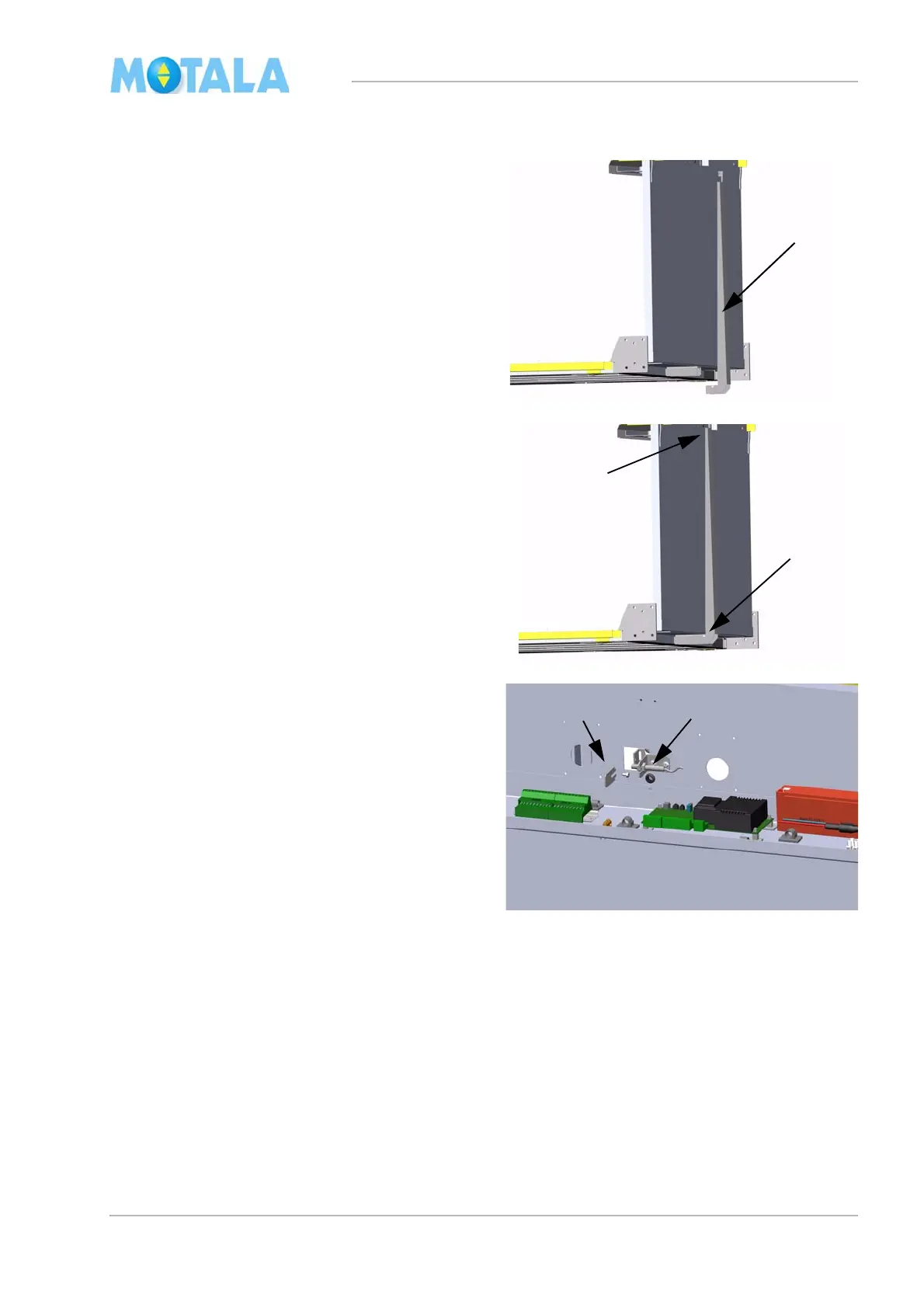

Overload unit
Bring the platform to the middle of the door
openi
ng so you can reach to fit the overload
arm (1) from underneath.
Fit with screws in the pre-drilled holes nearest
the i
nner corner (2).
Adjust the distance between arm and panel
pla
te to be15mm at the end of the arm (3) when
the platform is unloaded.
Fasten the arm in the holes that remain. Use
sel
f-drilling screws.
Fit the overload flag (4) from inside of the panel.
Pre-adjust the transmitter (5) to a gap of 2mm
between
transmitter and the flag and at the
same time the distance between the edge of
the flag to centre of the transmitter to about
6mm.
Note. Do not
tighten the nuts to hard you may
damaged the transmitter.
Adjustment with load has to be made later.
