5 - 132 WiNG 5.5 Access Point System Reference Guide

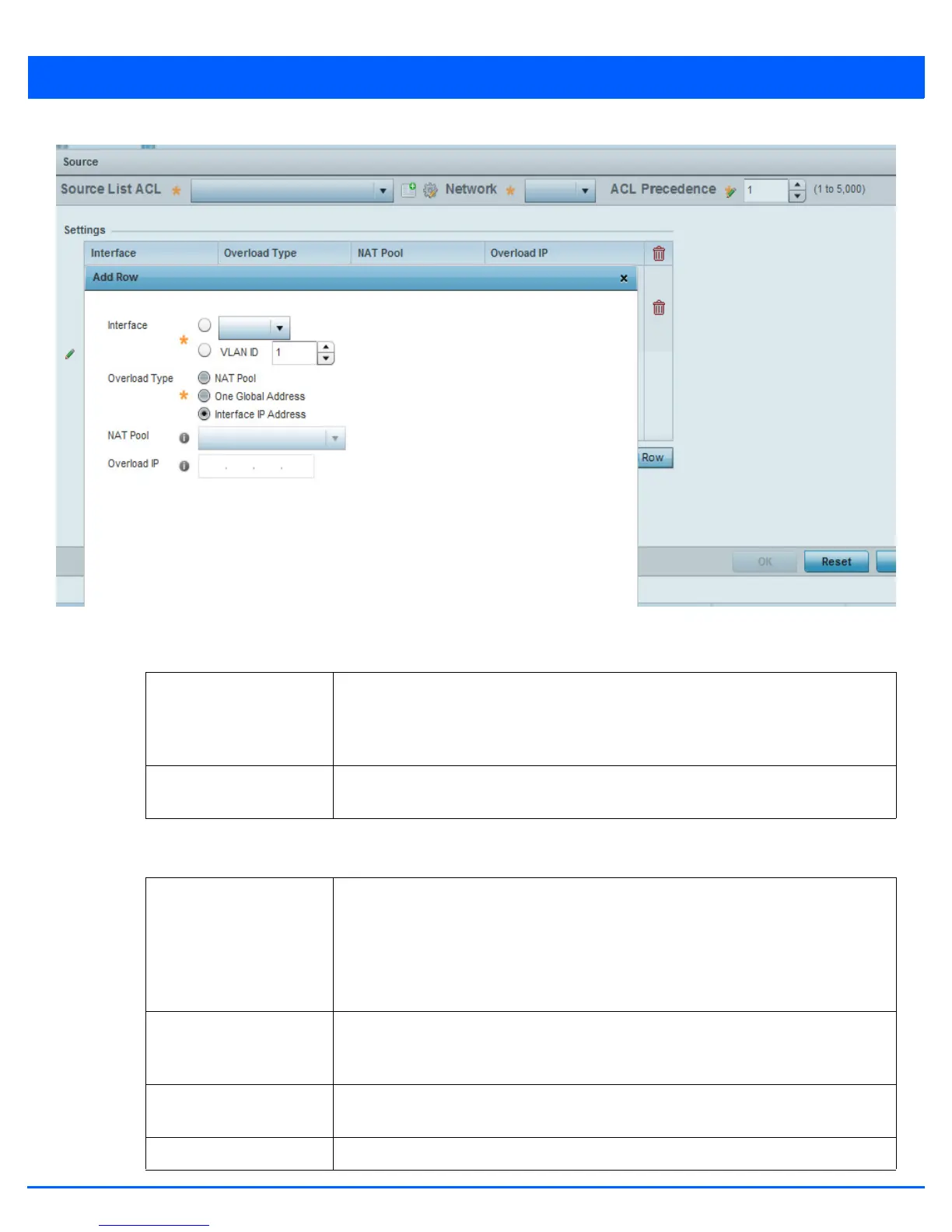

Figure 5-82 Profile Security - Source ACL List screen
19. Set the following to define the Dynamic NAT configuration:
20. Select + Add Row to launch a pop up screen used to define the Interface, Overload Type, Nat Pool and Overload IP
used with the dynamic NAT configuration.
Source List ACL Use the drop-down menu to select an ACL name to define the packet selection criteria for
NAT. NAT is applied only on packets which match a rule defined in the access list. These
addresses (once translated) are not exposed to the outside world when the translation
address is used to interact with the remote destination.
Network Select Inside or Outside NAT as the network direction for the dynamic NAT configuration.
Inside is the default setting.
Interface Use the drop-down menu to select the VLAN ID (from 1 - 4094) used as the communication
medium between the source and destination points within the NAT configuration. Ensure
the VLAN selected represents the intended network traffic within the NAT supported
configuration. VLAN1 is available by default. Optionally, select the wwan1 radio button if
the access point model supports a wwan interface as the outgoing layer 3 interface for
NAT.
Overload Type Select this option of Overload Type used with the listed IP ACL rule. Options include NAT
Pool, One Global Address and Interface IP Address. Interface IP Address is the default
setting. If NAT Pool is selected, provide the Overload IP address.
NAT Pool Provide the name of an existing NAT pool for use with the NAT configuration. Optionally
select the Create icon to define a new NAT Pool configuration.
Overload IP Enables the use of one global address for numerous local addresses.
