6 - 26 WiNG 5.5 Access Point System Reference Guide

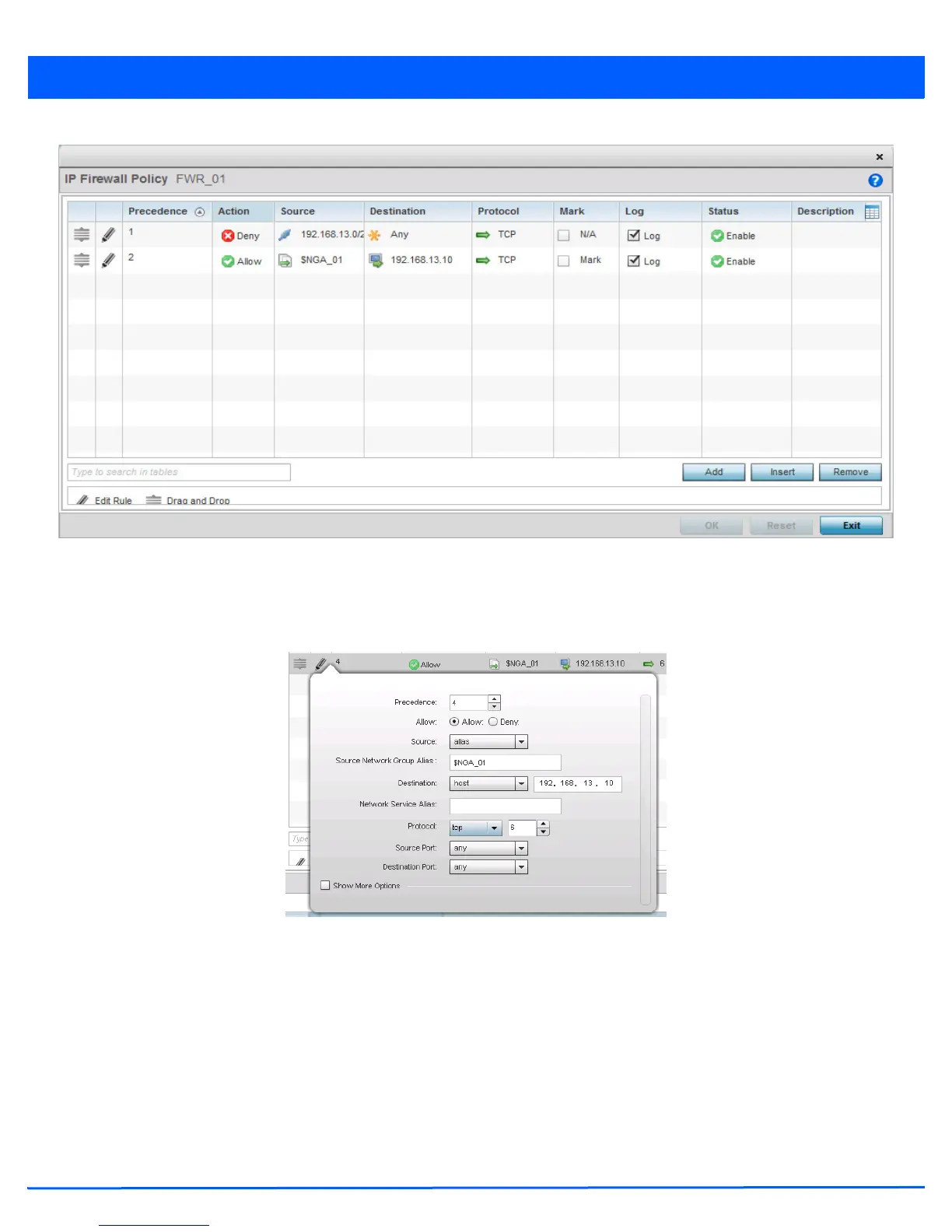

Figure 6-10 WLAN Security - IP Firewall Rules screen
8. IP Firewall rule configurations can either be modified as a collective group of variables or selected and updated individually
as their filtering attributes require a more refined update.
a. Select the Edit Rule icon to the left of a particular IP Firewall rule configuration to update its parameters collectively.
Figure 6-11 WLAN Security - IP Firewall Rules - Edit Rule screen
b. Click the icon within the Description column (top right-hand side of the screen) and select IP filter values as needed
to add criteria into the configuration of the IP ACL.
