3 Product description
22 TAPCON® 230 basic 2117246/02 EN © Maschinenfabrik Reinhausen 2012
3.3 Hardware description
The housing can be secured to any wall. Alternatively it can also be fitted in a
control panel and mounted on a cap rail.
The LCD graphic display, LEDs and function keys are integrated in the front of
the device.
The lockable door can be used to protect the device from unauthorized opera-
tion.

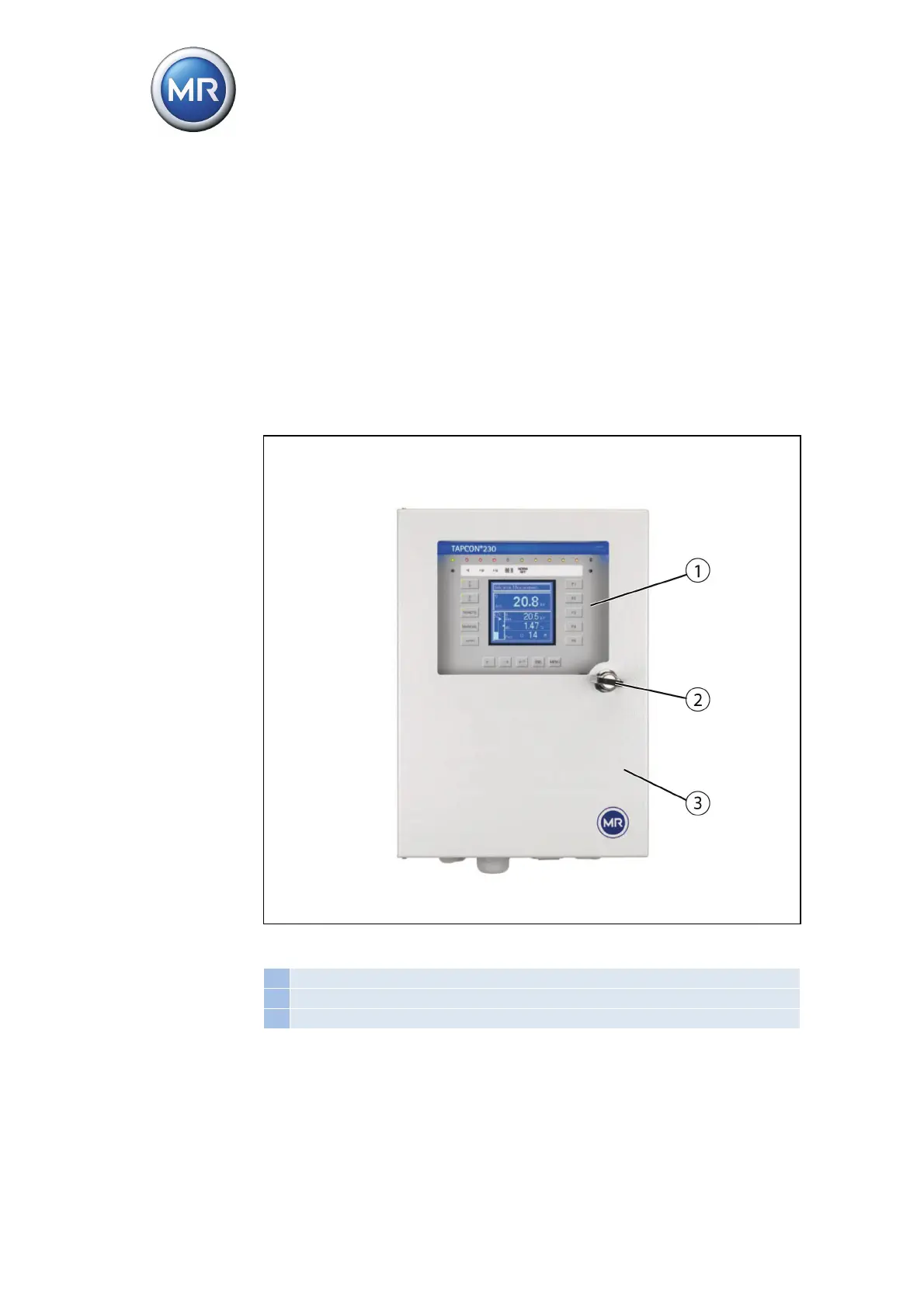

Figure 2 Front view
1 Operating panel with display and LEDs
2 Door lock
3 Door
