MR TAPCON 230 basic User Manual

7 Functions and settings
© Maschinenfabrik Reinhausen 2012 2117246/02 EN TAPCON® 230 basic 81
7.3.4 Setting desired value 2
Desired value 2 is activated if there is a continuous signal at GPI 5. The GPI 5
must have previously been configured (see "Configurable inputs and
outputs" on page 135) for this.
Setting range Step size Factory setting
49 V...140 V 0.1 V 100 V
Table 14 Setting range for desired value 2 in V
Setting range Step size Factory setting
0 kV... 9999 kV
0 kV...999.9 kV
0 kV...99.99 kV
1 kV
0.1 kV
0.01 kV
1kV
Table 15 Setting range for desired voltage value 2 in kV

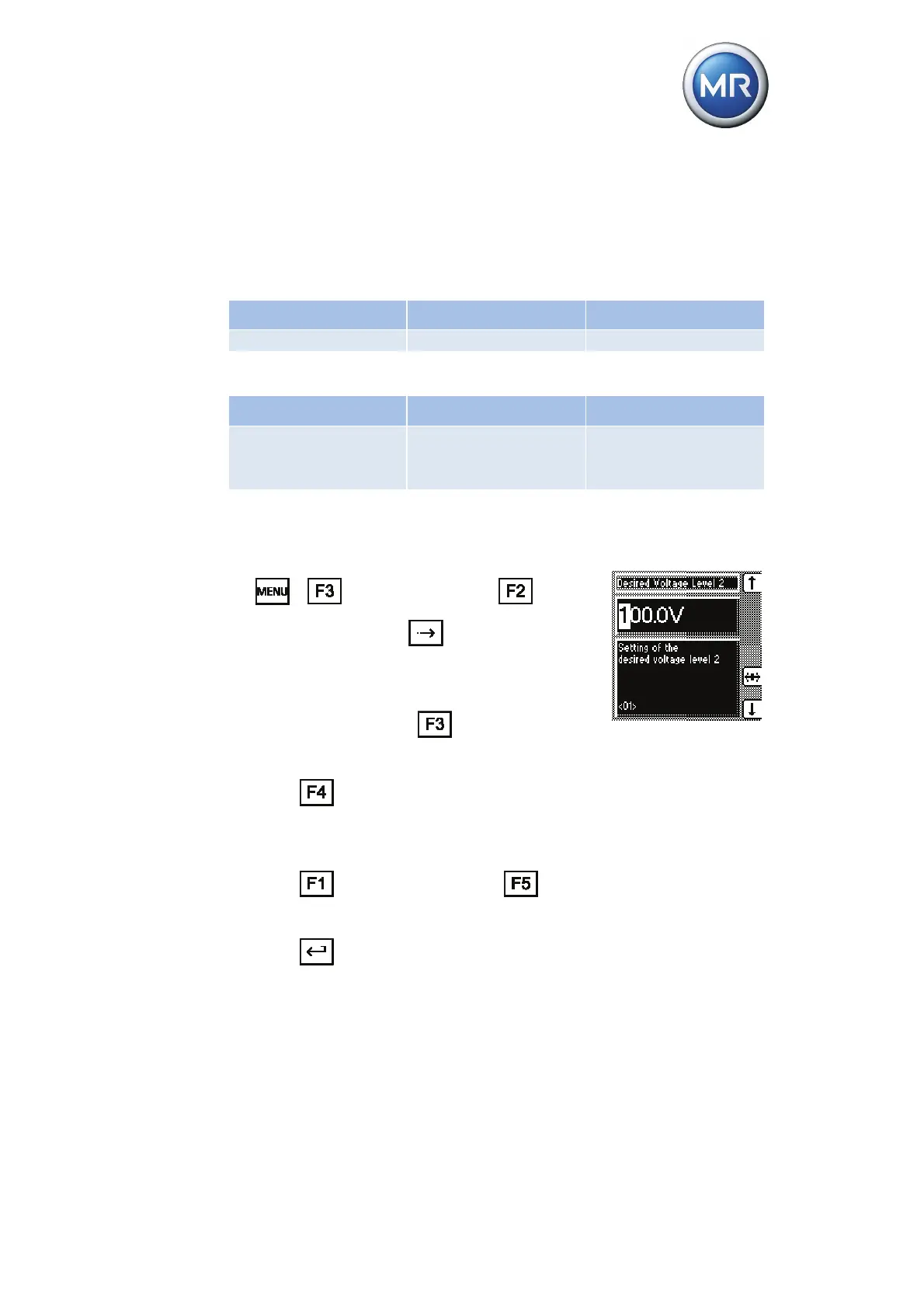

To set desired value 2, proceed as follows:
1. > Control Parameters > Vol-
tage Regulation > 1x
.
<01> Desired Value 2.
2. If you have already entered the transformer
data (page 111), press
to select the unit
you want: "V" or "kV".
3. Press
to highlight a digit.
The digit position you want is highlighted
and the value can be changed.
4. Press
to increase the value or to
reduce it.
5. Press
.
Desired value 2 is set.
