MR TAPCON 230 basic User Manual

7 Functions and settings
© Maschinenfabrik Reinhausen 2012 2117246/02 EN TAPCON® 230 basic 75

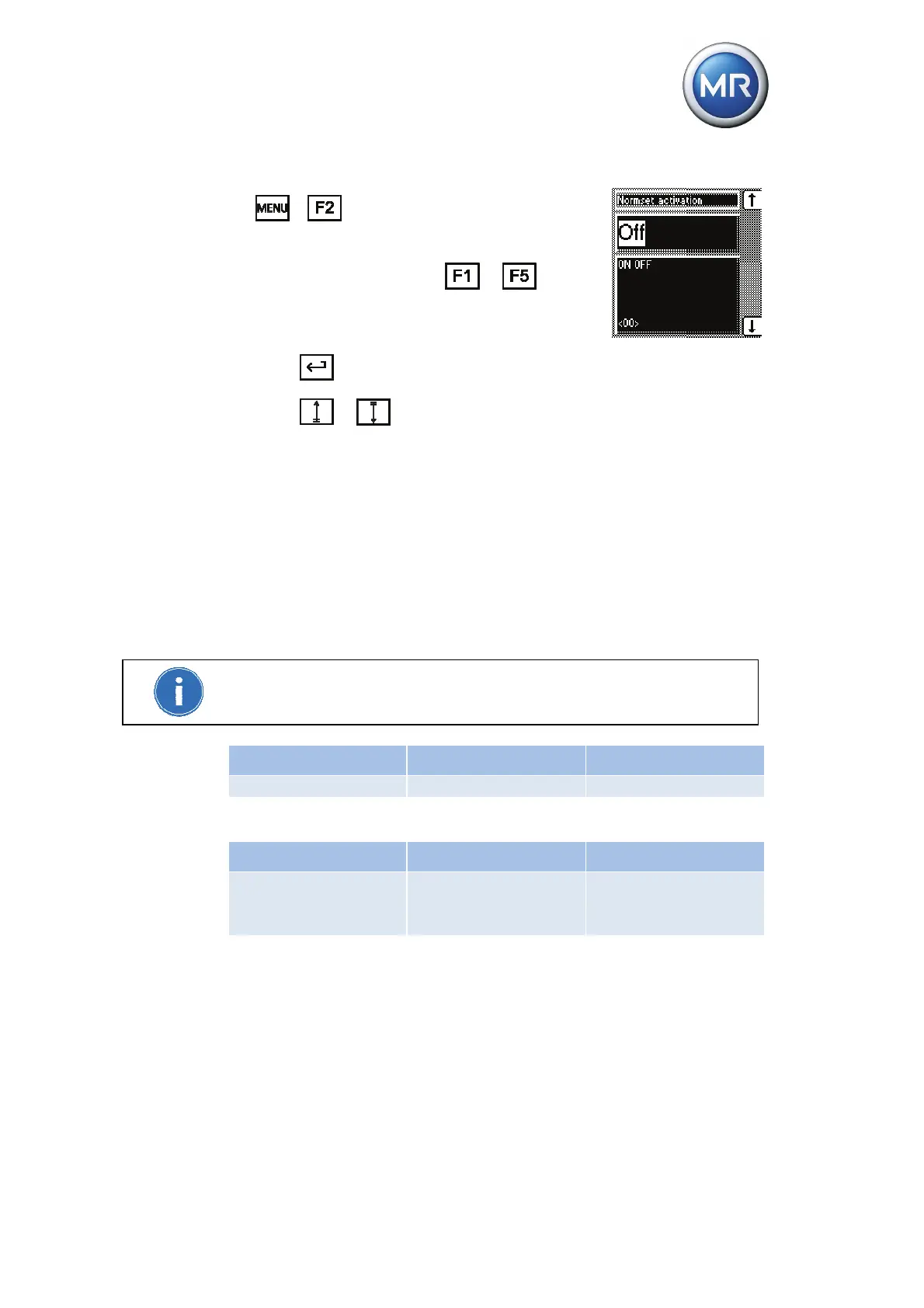

1. > Normset.
<00> Normset activation.
2. To activate Normset, press
or to
select "On"
.
3. Press
.
4. Press
or to perform a
manual tap-change operation.
The LED for the NORMset operating display lights
up. The NORMset mode is activated.
7.2.1 Setting desired value 1
Desired values set in kV apply to the primary voltage of the connected voltage
transformer. Desired values set in V apply to the secondary voltage of the
connected voltage transformer. All transformer data (page 111) must be
entered correctly.
Settings in kV are only possible if you have previously entered the parame-
ters for primary and secondary voltage.
Setting range Step size Factory setting
49 V – 140 V 0.1 V 100 V
Table 7 Setting range for NORMset desired value 1 in V
Setting range Step size Factory setting
0 kV...9999 kV
0 kV...999.9 kV
0 kV...99.99 kV
1 kV
0.1 kV
0.01 kV
1 kV
Table 8 Setting range for NORMset desired value 1 in kV
To set desired voltage value 1, proceed as follows:
