5 Mounting
42 TAPCON® 230 basic 2117246/02 EN © Maschinenfabrik Reinhausen 2012
5.3.3 Wall mounting
For wall mounting, the device is fixed directly to the wall.
Drill 4 holes, each 5.5 mm in diameter, in the wall as shown in the drilling
template below.

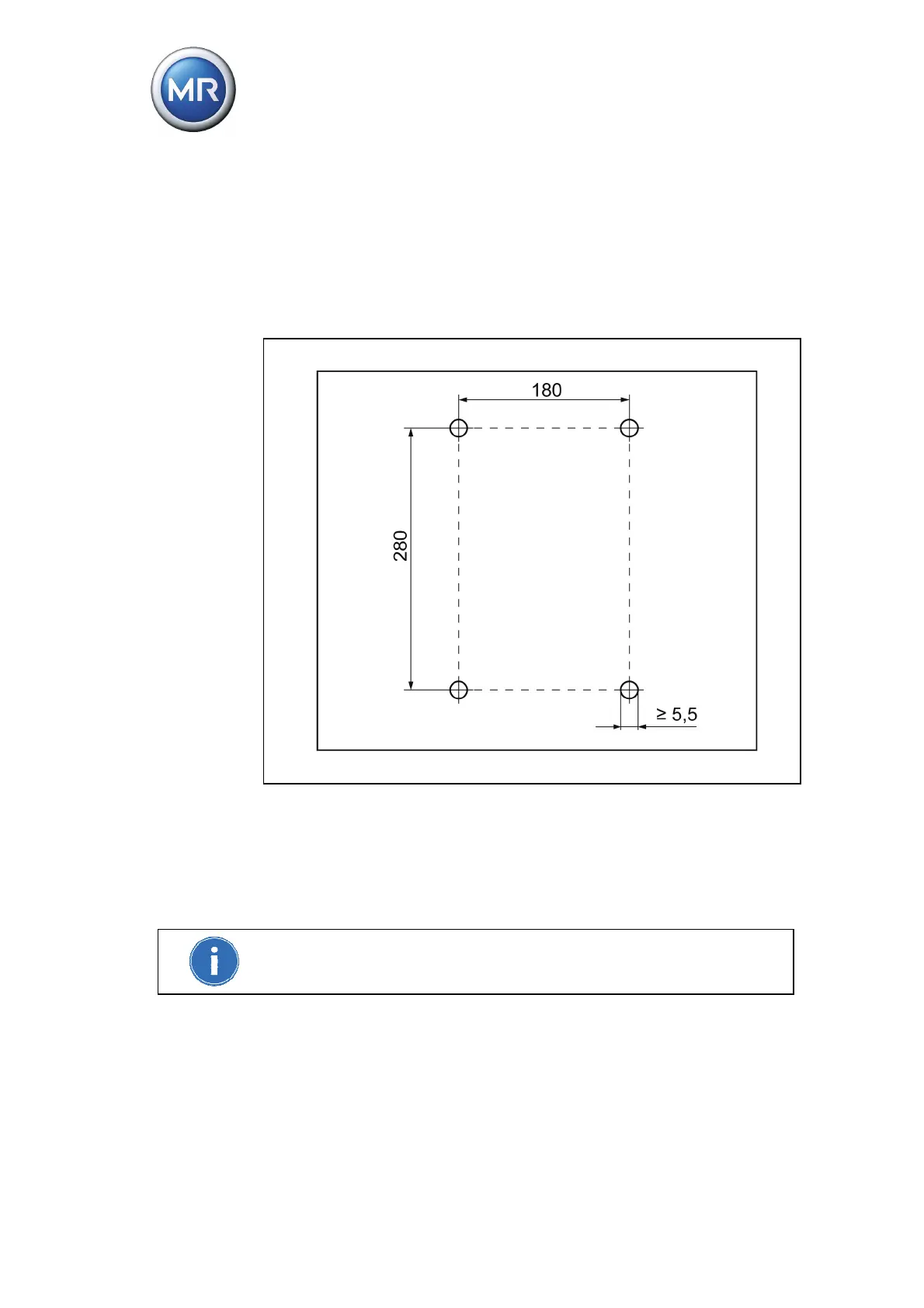

Figure 13 Drilling template for wall mounting
To mount the device directly on the wall, proceed as follows:
1. Close the device's door.
2. Fix the device on the wall from behind using 4 screws (M5).
The screws for wall mounting are not included in the scope of supply.
The screw length required depends on the wall thickness.
