MR TAPCON 230 basic User Manual

7 Functions and settings
© Maschinenfabrik Reinhausen 2012 2117246/02 EN TAPCON® 230 basic 111

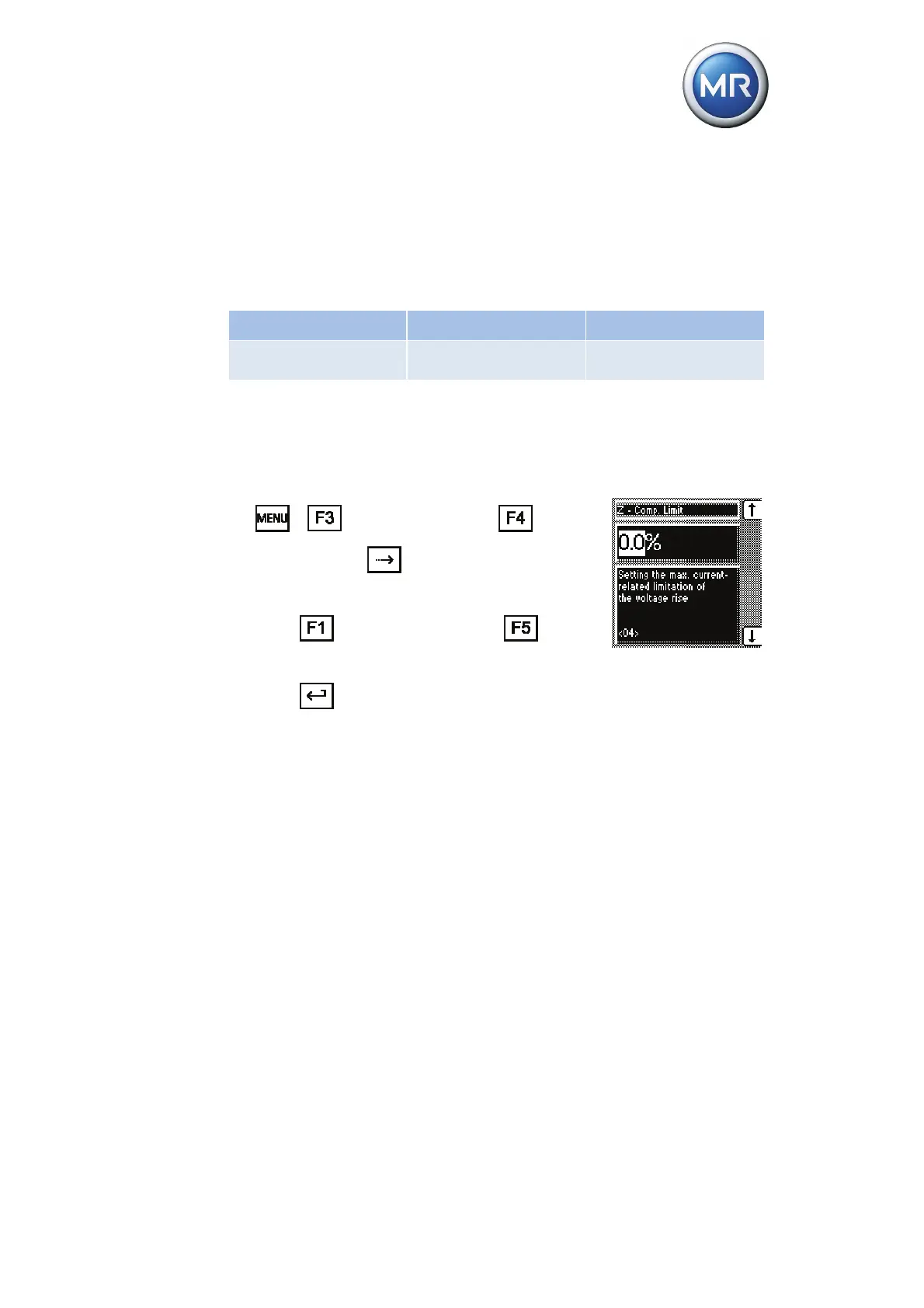

7.3.13.7 Setting the Z compensation limit value ΔV
If Z compensation is activated, you must limit the maximum permissible in-
crease in voltage, with reference to the desired value, to avoid excessive vol-
tage on the transformer.
Setting range Step size Factory setting
0 %...15 %
of desired value
0.1 % 0 %
Table 29 Setting range for Z compensation limit value ΔV
First you have to select the "Z" compensation method (page 105).
To set the ΔV limit value for Z compensation, proceed as follows:
1. > Control Parameters > Com-
pensation > 4x
.
<04> Z Comp. Limit Value.
2. Press
to increase the value or to
reduce it.
3. Press
.
The limit value ΔV is set.
7.4 Configuration
This section describes all the settings for configuring system-specific data. To
make it easier for you to find specific parameters, the description refers to
subgroups of individual parameters with related functions.
