MR TAPCON 230 basic User Manual

7 Functions and settings
82 TAPCON® 230 basic 2117246/02 EN © Maschinenfabrik Reinhausen 2012

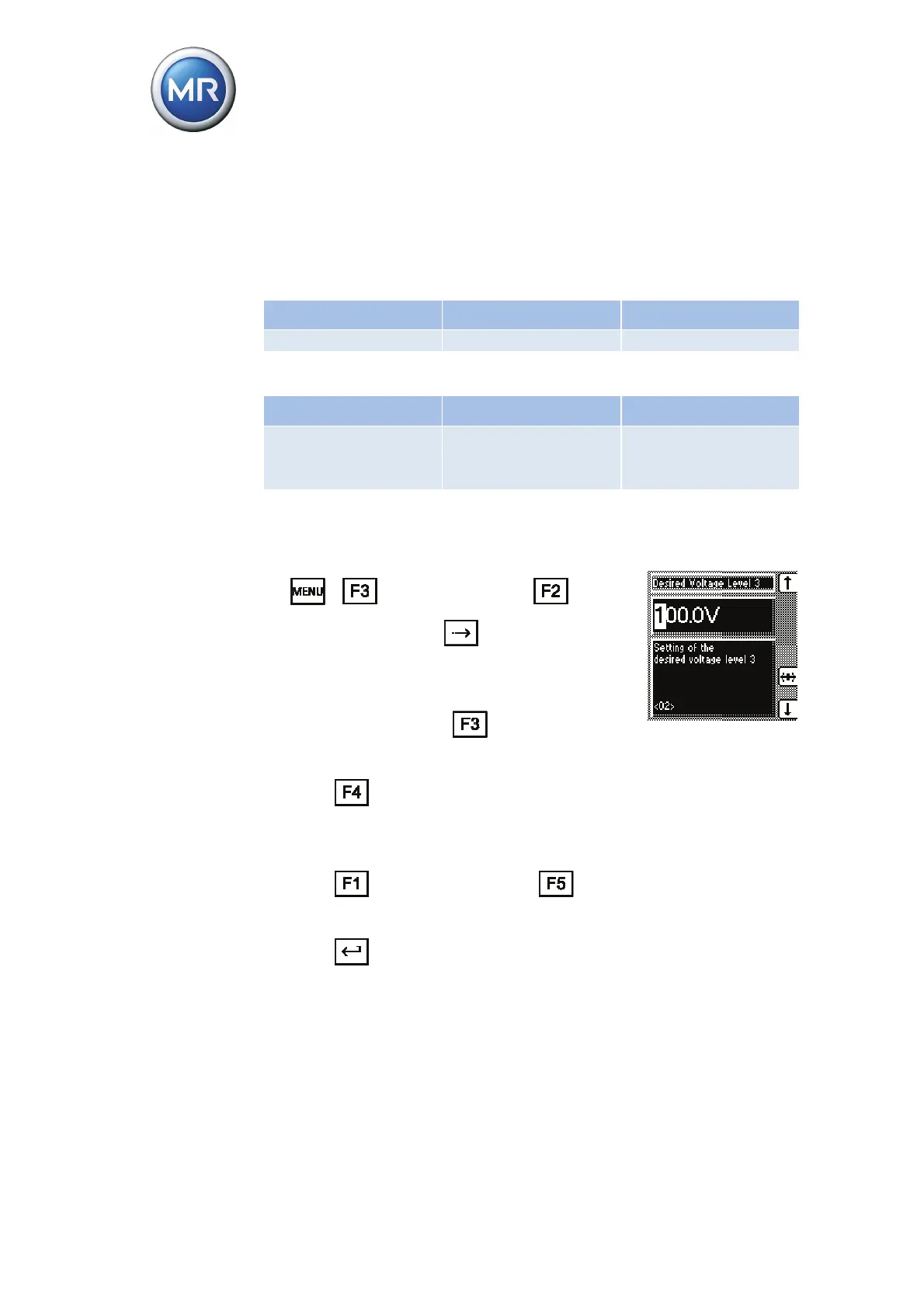

7.3.5 Setting desired value 3
Desired value 3 is activated if there is a continuous signal at GPI 6. The GPI 6
must have previously been configured (see "Configurable inputs and
outputs" on page 135) for this.
Setting range Step size Factory setting
49 V...140 V 0.1 V 100 V
Table 16 Setting range for desired value 3 in V
Setting range Step size Factory setting
0 kV... 9999 kV
0 kV...999.9 kV
0 kV...99.99 kV
1 kV
0.1 kV
0.01 kV
1kV
Table 17 Setting range for desired value 3 in kV
To set desired value 3, proceed as follows:
1. > Control Parameters > Vol-
tage Regulation > 2x
.
<02> Desired Value 3.
2. If you have already entered the transformer
data (page 111), press
to select the unit
you want: "V" or "kV".
3. Press
to highlight a digit.
The digit position you want is highlighted
and the value can be changed.
4. Press
to increase the value or to
reduce it.
5. Press
.
Desired value 3 is set.
