MR TAPCON 230 basic User Manual

3 Product description
© Maschinenfabrik Reinhausen 2012 2117246/02 EN TAPCON® 230 basic 25
3.4 Operation and indicator elements
The front of the device is split into different areas for operating the device and
displaying information. Below you can see an overview of the individual ele-
ments.

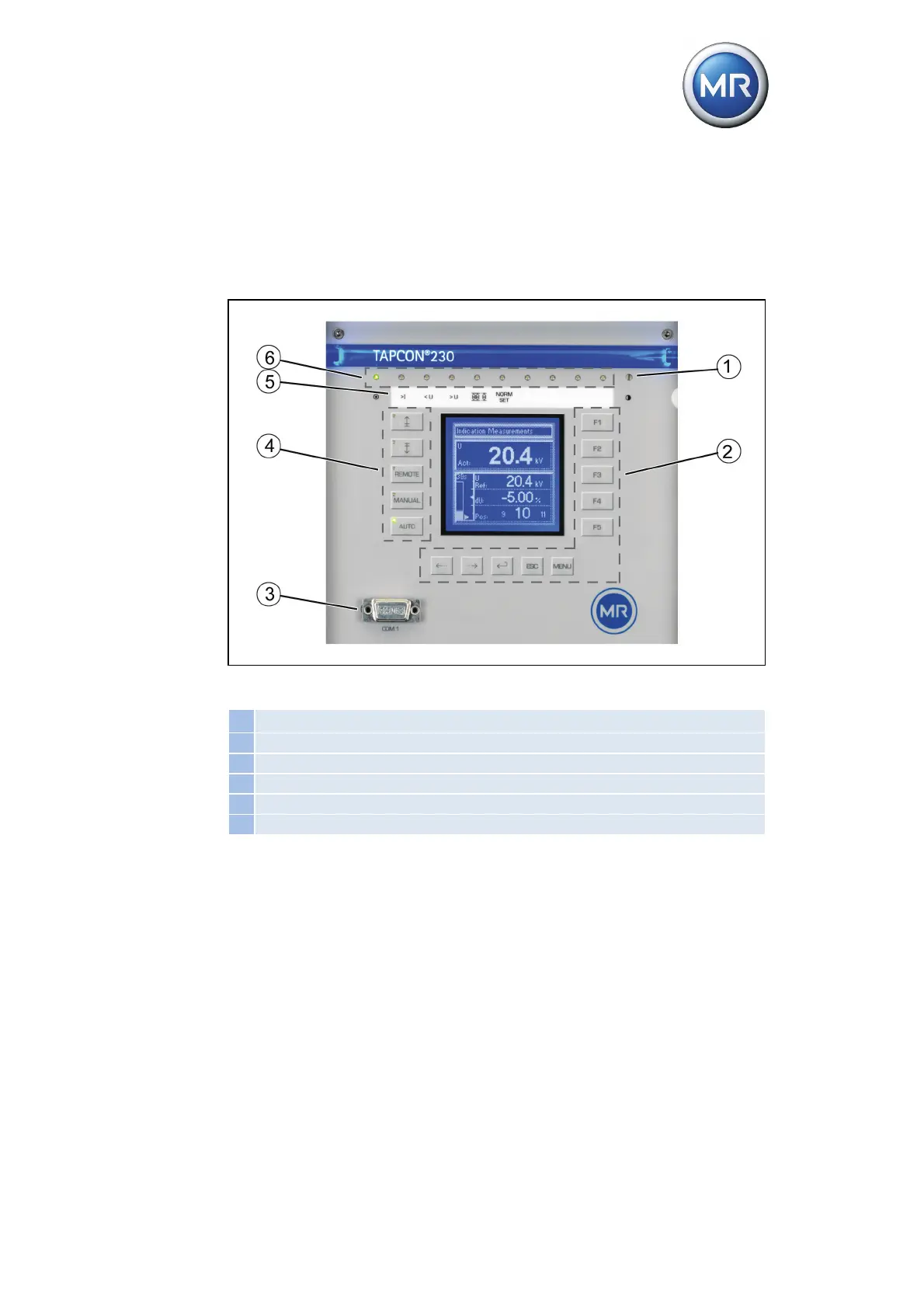

Figure 5 Operating panel
1 Adjusting screw for display contrast
2 Keys for parameterization and configuration
3 COM1 serial interface (RS232)
4 Keys for operating the device
5 Labeling strip for LEDs
6 LEDs
