5.3.6 Removing door

When the door is fitted, the device satisfies protection category IP54. The

door may be dismounted if the device is used solely in a dry atmosphere pro-

tected from environmental influences. The device then satisfies protection

category IP21.

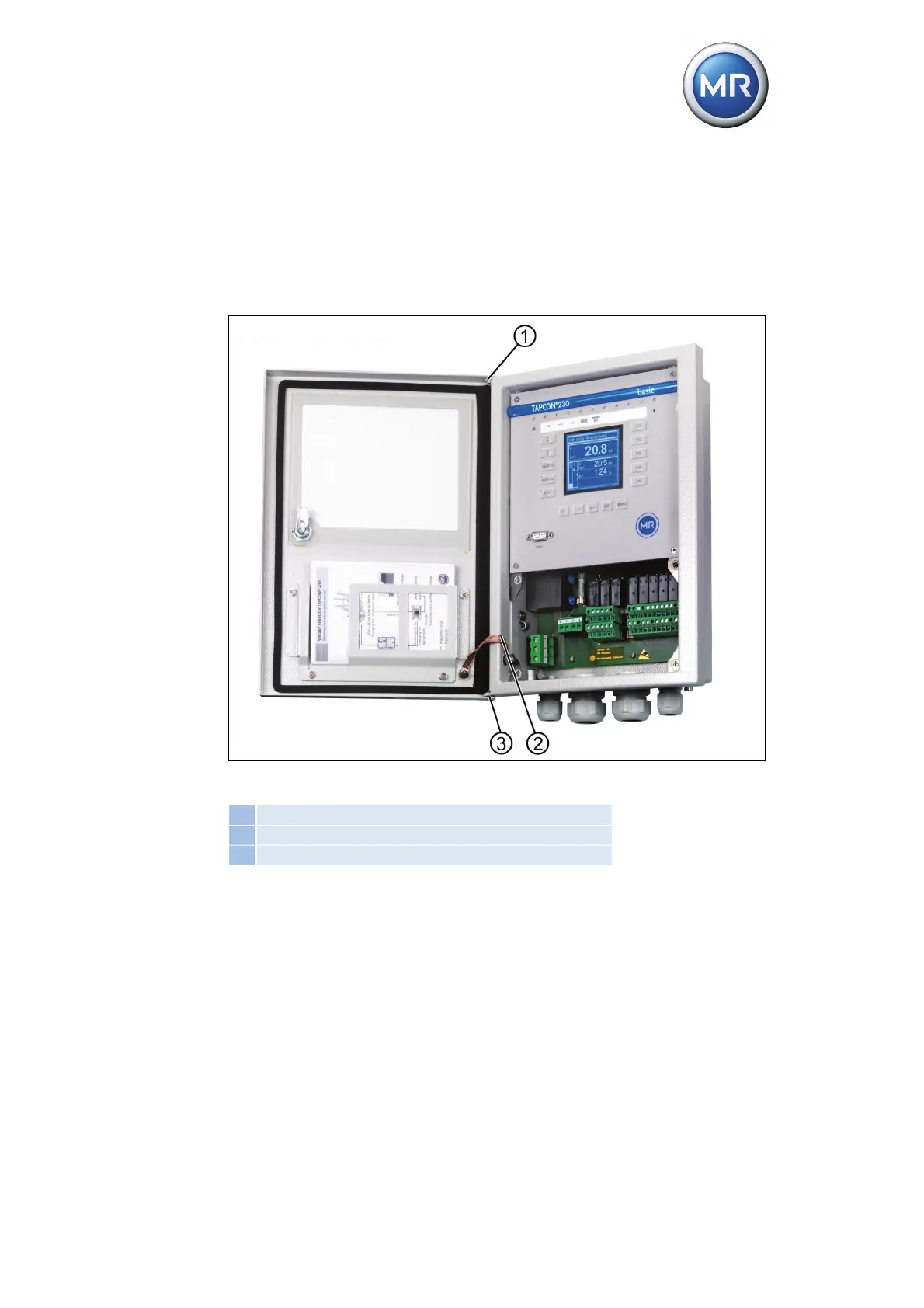

Figure 18 Device with open door

1 Hinge

2 Earthing strip

3 Fixing bolt

Proceed as follows to remove the door:

1. Unscrew the earthing strip.

2. Unscrew the fixing bold and lift the door out of the upper mounting.

3. Hang the covering strip to the hinge at the top and secure using the fixing

bolt.

The exposed attachment points for the door are covered.
