MR TAPCON 230 basic User Manual

7 Functions and settings
© Maschinenfabrik Reinhausen 2012 2117246/02 EN TAPCON® 230 basic 87
Following the recommendation for calculating bandwidth, our example results
in:
[±B % ]0.6 
V
Step4
V
Step5
100 %
V
Nominal
[±B % ]0.6 
11275 V11000 V
100 %
11000 V
[±B % ]1.5 %

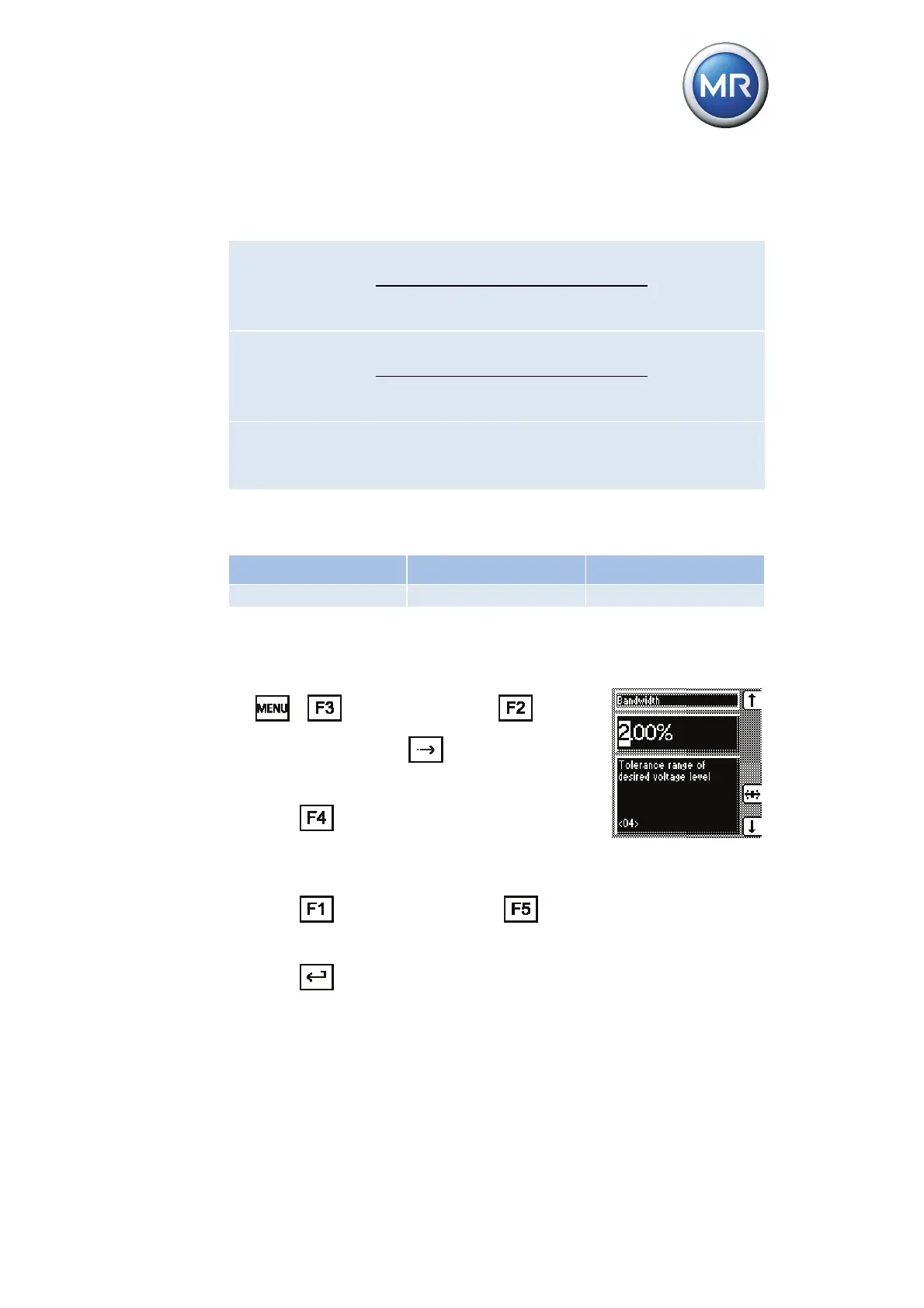

7.3.7.3 Setting the bandwidth
Setting range Step size Factory setting
0.5 % to 9 % 0.01 % 2 %
Table 18 Setting range for bandwidth
The calculated bandwidth is entered as follows:
1. > Control Parameters > Vol-
tage Regulation > 4x
.
<04> Bandwidth.
2. Press
to highlight a digit.
The digit position you want is highlighted
and the value can be changed.
3. Press
to increase the value or to
reduce it.
4. Press
.
The bandwidth is set.
