MR TAPCON 260 - Power Supply Specifications: SUL-P and SUM-P Models; Special Model Power Supply Details

13 Technical data
Maschinenfabrik Reinhausen 2014 1532374092/04 EN TAPCON® 260
SUL-P SUM-P
Permissible voltage
range
18...36 V DC 36...72 V DC
Input current Max. 2.3 A Max. 1 A
Internal fuse 250 V; 3 A; 6.3 x 32 mm, "fast-acting" character-
istics
Table 56: Special model

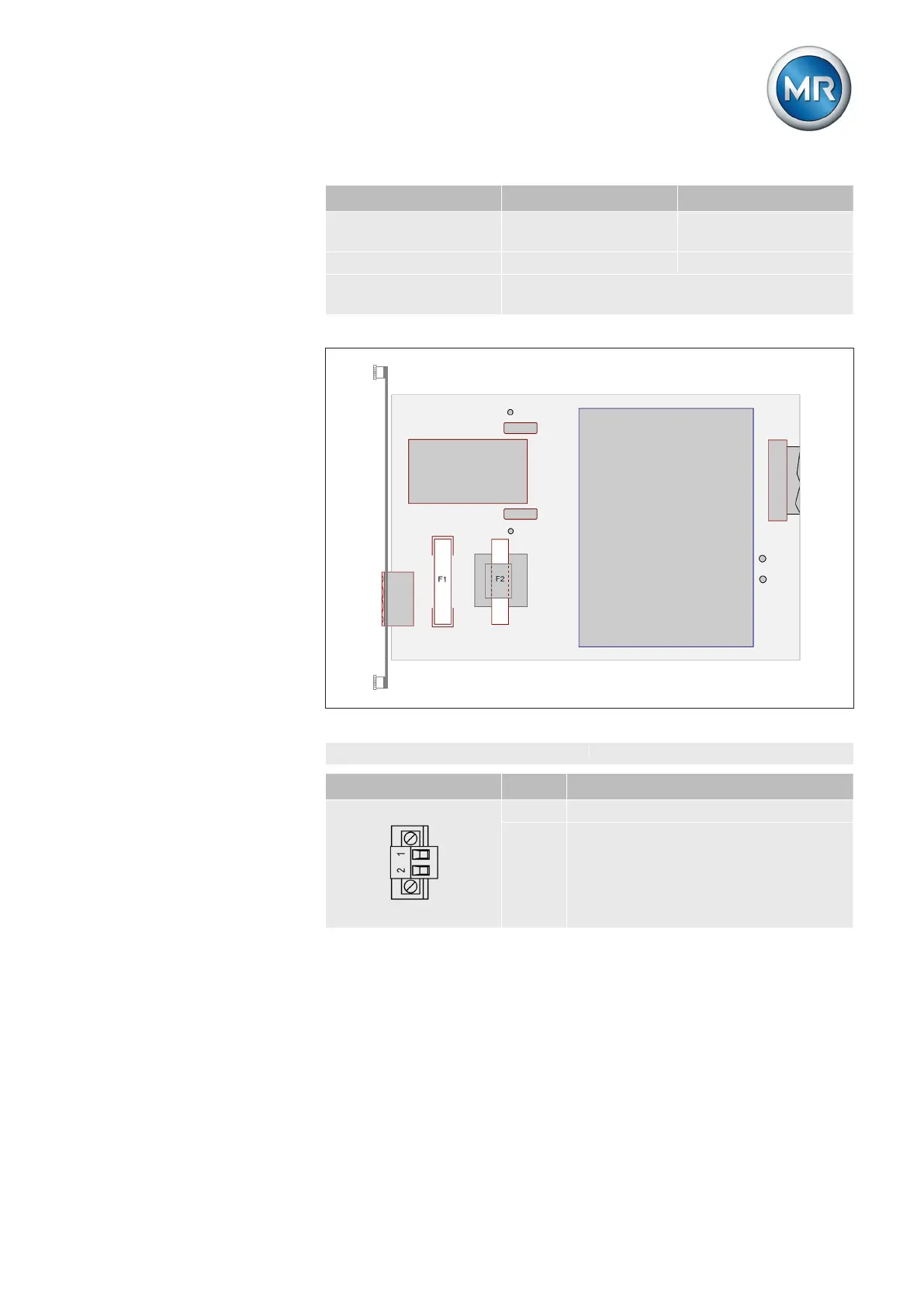

Figure 89: Internal fuse of SUM-P card and SUL-P card
F1 Fuse F2 Spare fuse
Interface Pin Description
1 L1 / +DC
2 N / GND
Table 57: Terminal X1
