3 Product description
Maschinenfabrik Reinhausen 201418 2374092/04 ENTAPCON® 260

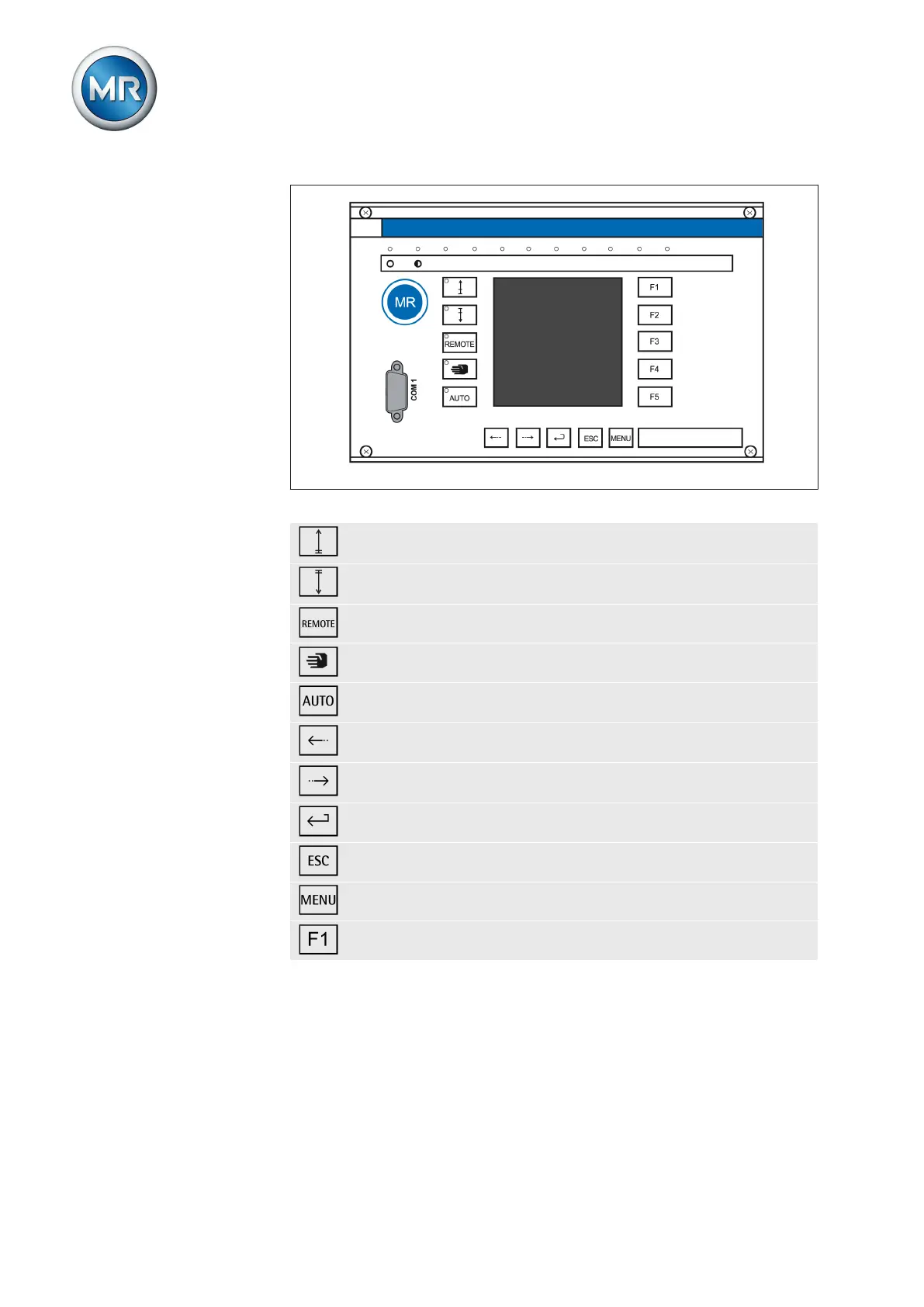

Figure 4: Operating controls
RAISE key: Sends control command for raise tap-change to the
motor-drive unit in manual mode. See also [► 52].
LOWER key: Sends control command for lower tap-change to the
motor-drive unit in manual mode. See also [► 52].
REMOTE key: Activate/deactivate "Remote" operating mode.
MANUAL key: Activate "Manual" operating mode.
AUTO key: Activate "Auto mode" operating mode.
PREV key: Change measured value display and switch to previ-
ous parameters.
NEXT key: Change measured value display and switch to next
parameters.
ENTER key: Confirm selection and save modified parameters.
ESC key: Escape current menu and select previous menu levels.
MENU key: Select main menu.
F1 to F5 function keys: Select functions displayed on the screen.
Display elements
The device has a graphics display and 15 LEDs, which indicate the various
operating statuses or events.
