13 Technical data
Maschinenfabrik Reinhausen 2014158 2374092/04 ENTAPCON® 260
Central processing unit

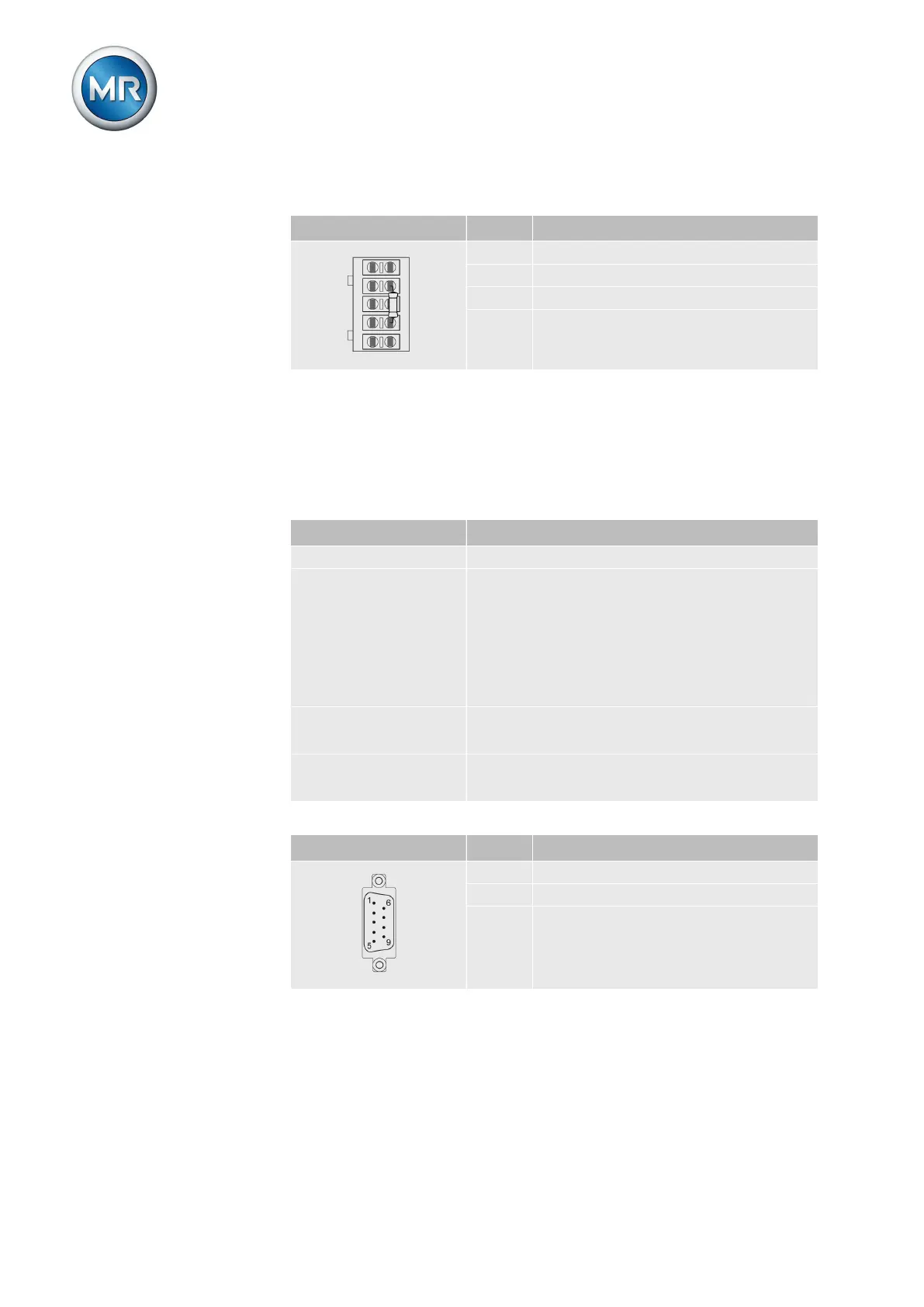

Interface Pin Description
1 GND_ISO
2 CAN_L
3 SHLD*
4 CAN_H
Table 66: Terminal X9 (CAN bus)
*) Alternatively, you can fit the cable shield to the partition plate's cable clip.
System networking
CIC card
CIC
RS232 9-pin SUB-D connector
RS485 3-pin socket from Phoenix Contact (MC1.5/3 GF
3.5)
Polarity:
A > B by 200 mV corresponds to 1.
A < B by 200 mV corresponds to 0.
Recommended terminating resistor 120 Ω.
RJ45 (optional) Max. 100 m
10 MBit/s
Fiber-optic cable (op-
tional)
F-ST (850 nm or 660 nm)
F-SMA (850 nm or 660 nm)
Table 67: Technical data for CIC card
Interface Pin Description
2 TXD
3 RXD
5 GND
Table 68: Terminal X8 (RS232)
