MR TAPCON 260 - Technical Data: Indicator Elements and Power Supply; Indicator Elements: Display and LEDs; Power Supply Specifications: SUH-P

13 Technical data
Maschinenfabrik Reinhausen 2014152 2374092/04 ENTAPCON® 260
Technical data
Indicator elements
Display LCD, monochrome, graphics-capable
128 x 128 pixels
LEDs 15 LEDs for operation display and messages
Table 54: Indicator elements
Power supply
SUH-P
Permissible voltage
range
88...264 V AC
88...353 V DC
U
N
: 100...240 V AC
U
N
: 88...353 V DC
Permissible frequency
range
50/60 Hz
Input current Max. 1 A
Power consumption 35 VA
Internal fuse 250 V; 3 A; 6.3 x 32 mm, "delayed-action" char-
acteristics
Table 55: Standard model

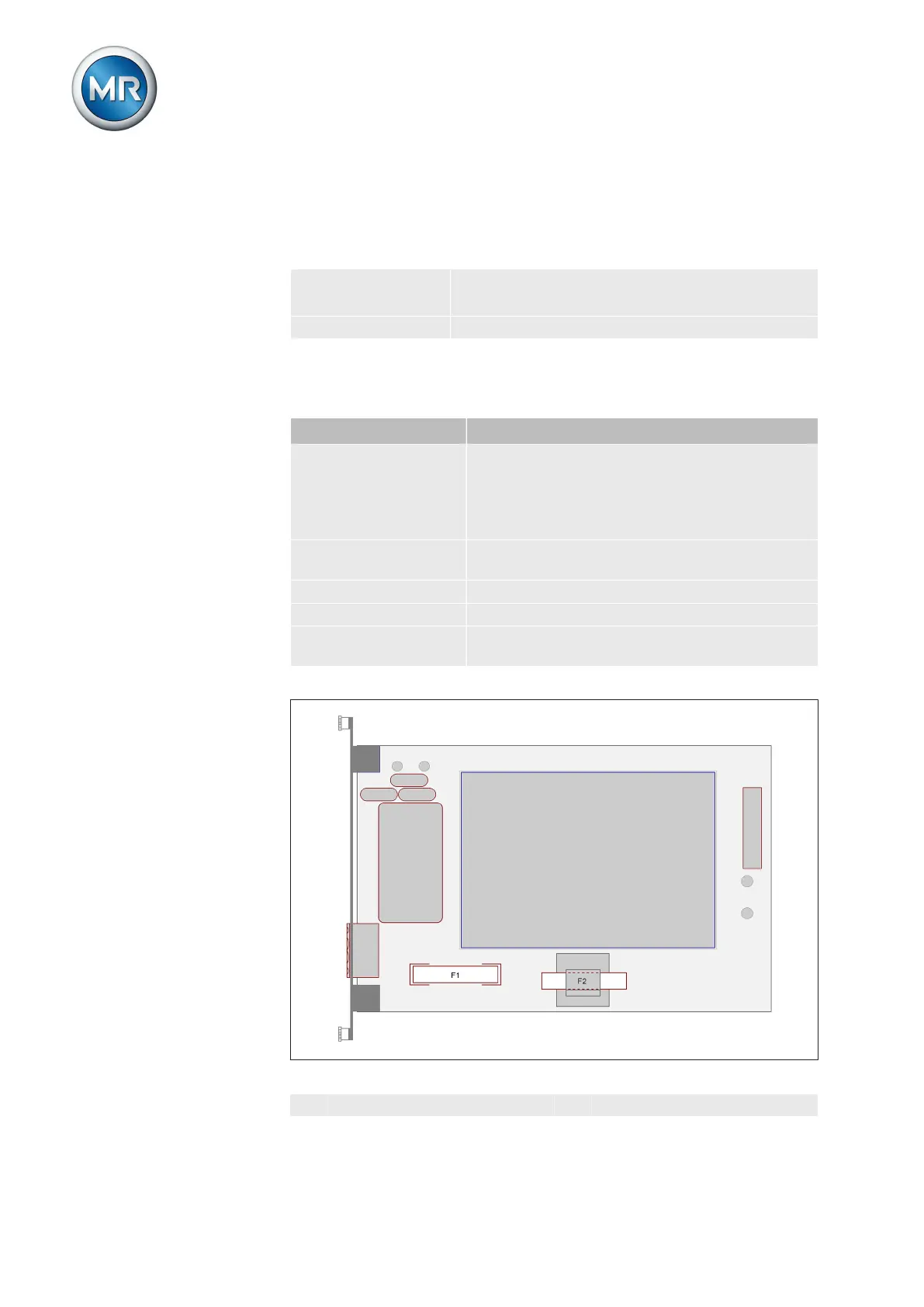

Figure 88: Internal fuses of SUH-P card
F1 Fuse F2 Spare fuse
