MR TAPCON 260 - Page 20

3 Product description
Maschinenfabrik Reinhausen 201420 2374092/04 ENTAPCON® 260
Display

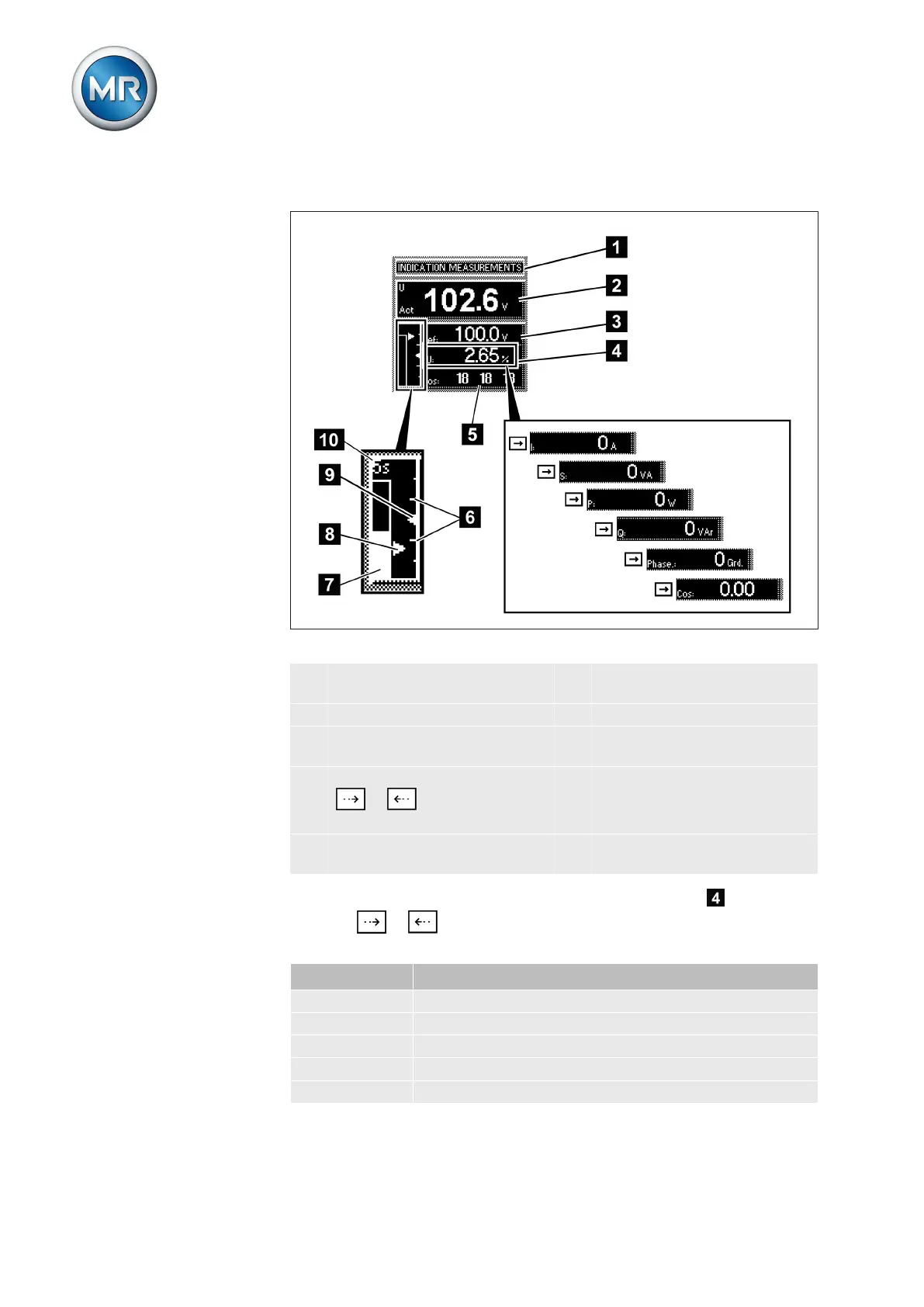

Figure 6: Display
1 Status line 6 Bandwidth (upper and lower
limit)
2 Measured voltage U
Act
7 Time bar for delay time T1
3 Reference voltage U
Ref
8 Highlighting for measured
voltage U
Act
4 Other measured values (use
or to switch between
them)
9 Highlighting for reference volt-
age U
Ref
5 Current tap position ED1,
ED2, ED3
10 Remaining delay time T1
In auto mode and manual mode the measured value display can be set
using the or keys. The following measured values can be dis-
played:
Unit Measured value
dU Control deviation
I Current
S Apparent power
P Active power
Q Reactive power
Other measured values
