3 Product description
Maschinenfabrik Reinhausen 2014 292374092/04 EN TAPCON® 260
CIC card
As an option, the device can be equipped with up to 2 CIC cards. The CIC
cards are used to communicate using a control system protocol or
TAPCON®-trol software (CIC2).

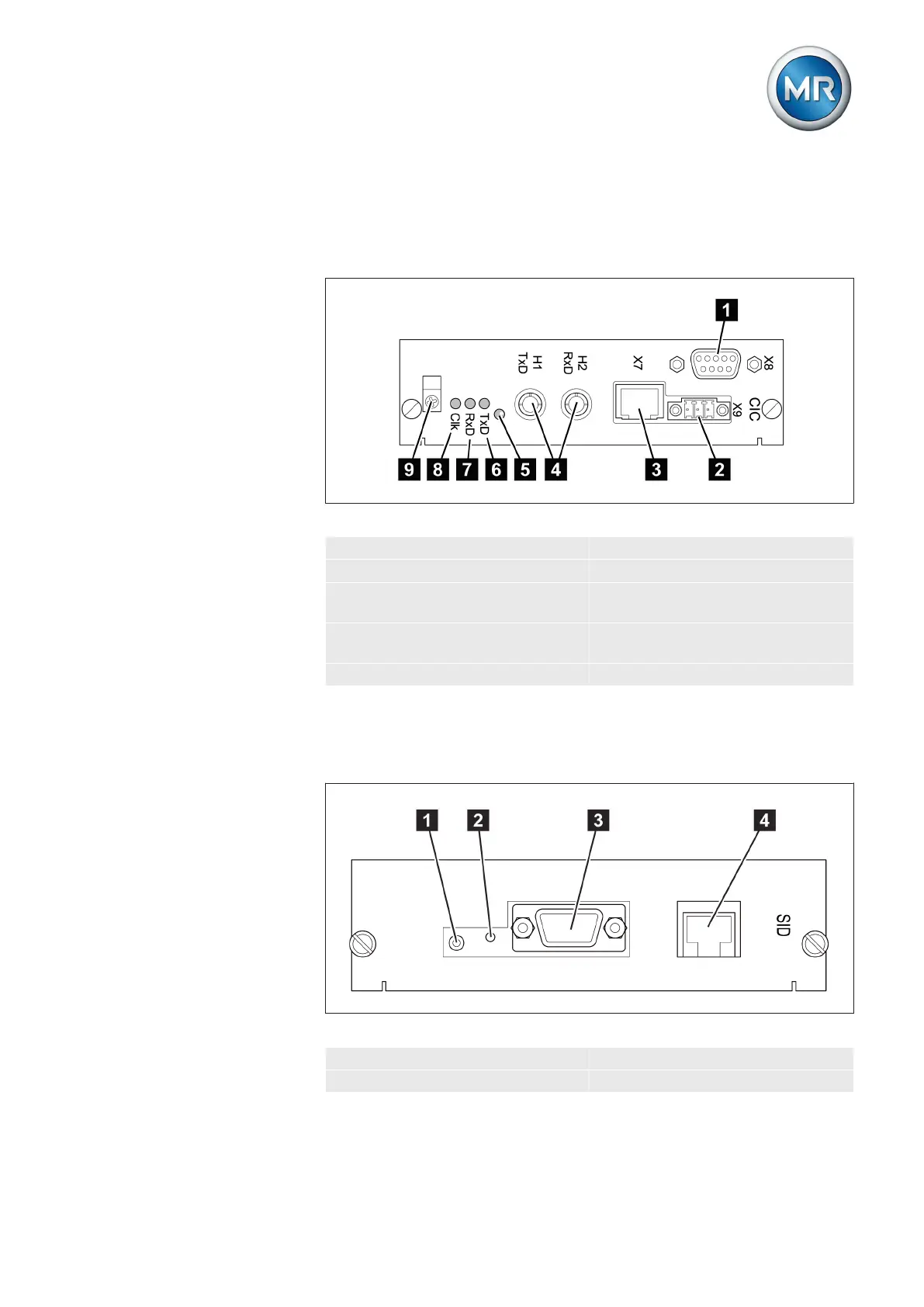

Figure 21: CIC card
1 RS232 6 TxD LED for transmit signal
2 RS485 7 RxD LED for receive signal
3 RJ45 (Ethernet), optional 8 Clk LED for operating mode
(flashes for 2 seconds)
4 Fiber-optic cable, optional 9 Clip for connecting cable
shield
5 Reset key
SID card
The SID interface card is used to connect the device to the control station
system (SCADA). The IEC 61850 protocol transfers the data using Ethernet.
Figure 22: SID card
1 Reset key 3 RS232 system interface
2 LED for operating status 4 RJ45 (Ethernet)
