4 Mounting
Maschinenfabrik Reinhausen 2014 352374092/04 EN TAPCON® 260

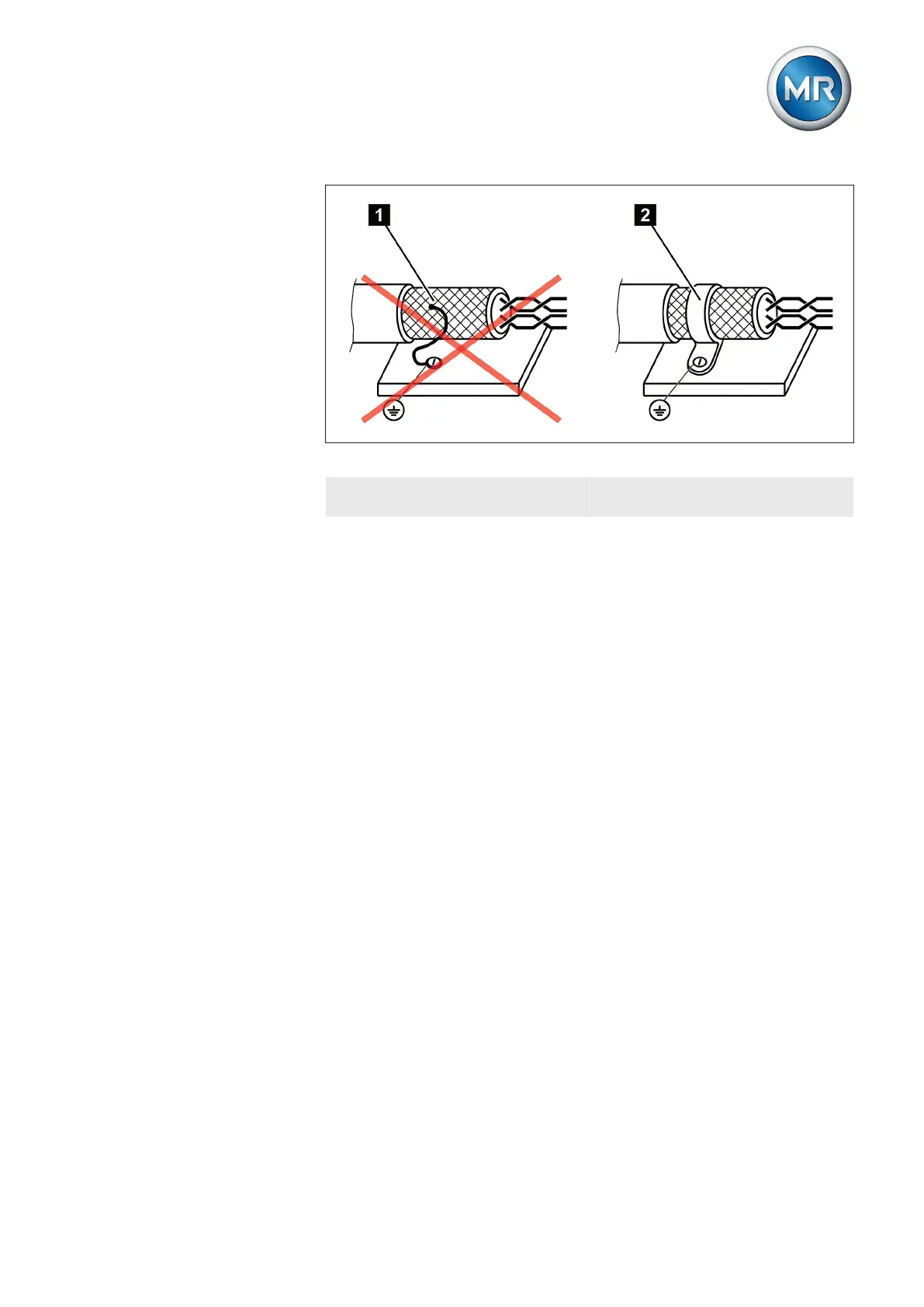

Figure 25: Recommended connection of the shielding
1 Connection of the shielding
using a "pigtail"
2 Shielding connection covering
all areas
Wiring requirement in control cabinet
Note the following when wiring the control cabinet:
The control cabinet where the device will be installed must be prepared
in accordance with EMC requirements:
Functional division of control cabinet (physical separation)
Constant potential equalization (all metal parts are joined)
Line routing in accordance with EMC requirements (separation of
lines which cause interference and those susceptible to interfer-
ence)
Optimum shielding (metal housing)
Overvoltage protection (lightning protection)
Collective grounding (main grounding rail)
Cable bushings in accordance with EMC requirements
Any contactor coils present must be interconnected
The device's connection cables must be laid in close contact with the
grounded metal housing or in metallic cable ducts with a ground con-
nection.
Signal lines and power lines/switching lines must be laid in separate ca-
ble ducts.
The device must be grounded at the screw provided, the protective
grounding connection, using a ground strap (cross-section min. 8 mm²).
