Muratec MFX-2550 Field Engineering Manual

5-19

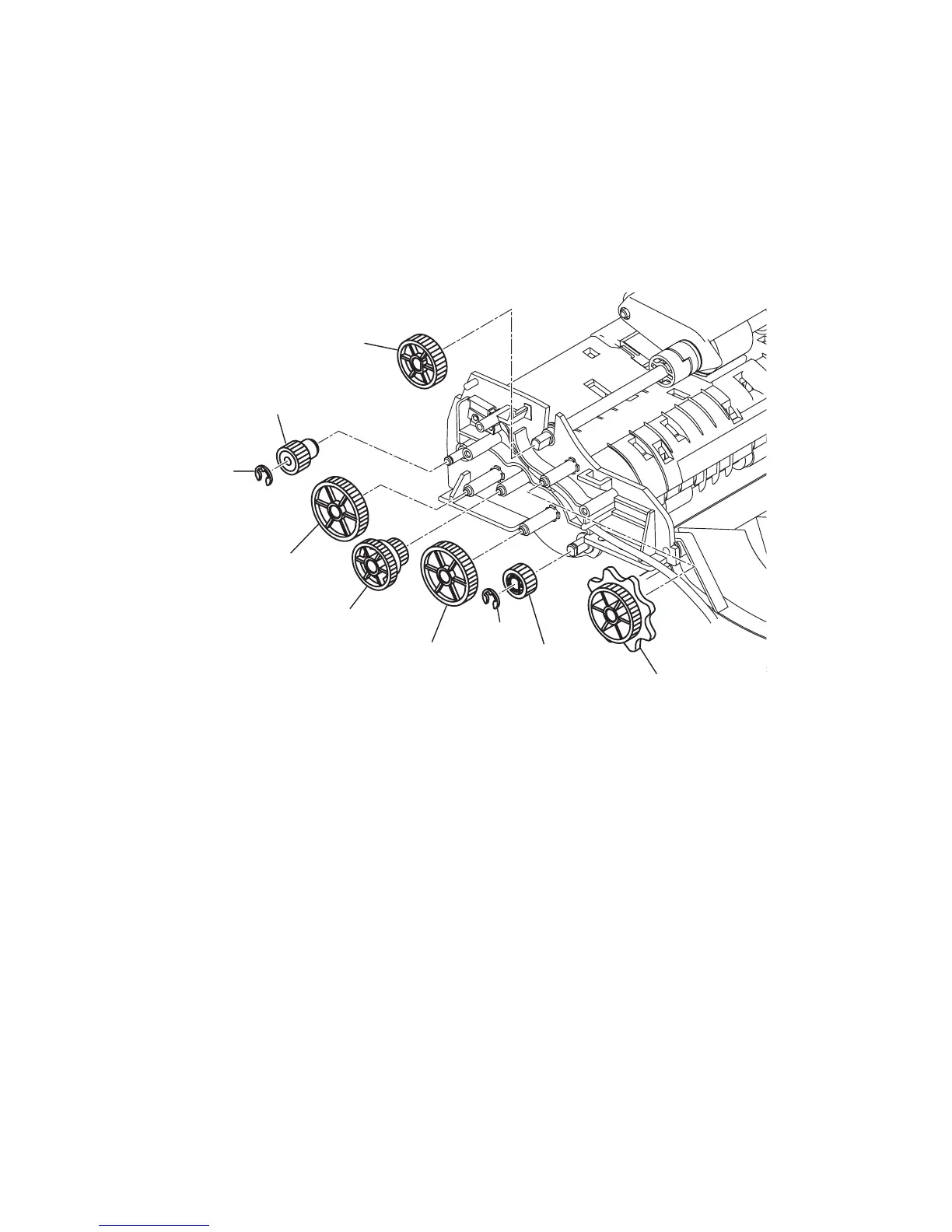

ADF DRIVE GEARS
1. RemovetheCoverTXsideB.(SeeCOVERTXSIDEB)
2. RemovetheCoverTXsideF.(SeeCOVERTXSIDEF)
3. RemovetheMotor(stepping).(SeeMOTOR(STEPPING))
4. RemovetheAPSbracket.(SeeGUIDEINNERA)
5. RemovetheGuideinnerA.(SeeGUIDEINNERA)
6. RemovetheGear18/55[1].
7. RemovetheGear24/47[2].
8. RemoveGear400.6B[3].
9. RemovetwoGears590.5[4].
10.RemoveoneE-ring[5],thenremovetheGear270.5[6].
11.RemoveoneE-ring[7],thenremovetheGear270.5ONEWAY[8].
[
8
]
[
7
]
[
5
]
[
4
]
[
2
]
[
4
]
[
6
]
[
3
]
[
1
]
