Muratec MFX-2550 Field Engineering Manual

5-52
ROLLER FEED B
1. RemovetheDADFcoverTX.(SeeDADFCOVERTX)
2. RemovetheDADFframescanner.(SeeDADFFRAMESCANNER)
3. RemovetheDADFguideinnerA.(SeeDADFGUIDEINNERA)
4. RemovetheDADFguideinnerBequippedwithDADFDRIVE.(SeeDADFGUIDEINNERBequipped
withDADFDRIVE)
5. RemovetheGears(front).(SeeGEARS(FRONT))
6. RemovetheStaydrivesensorandClutch.(SeeCLUTCH)
7. RemovetheFramemotor.(SeeMOTOR(STEPPING))
8. RemovetheGears(back).(SeeGEARS(BACK))

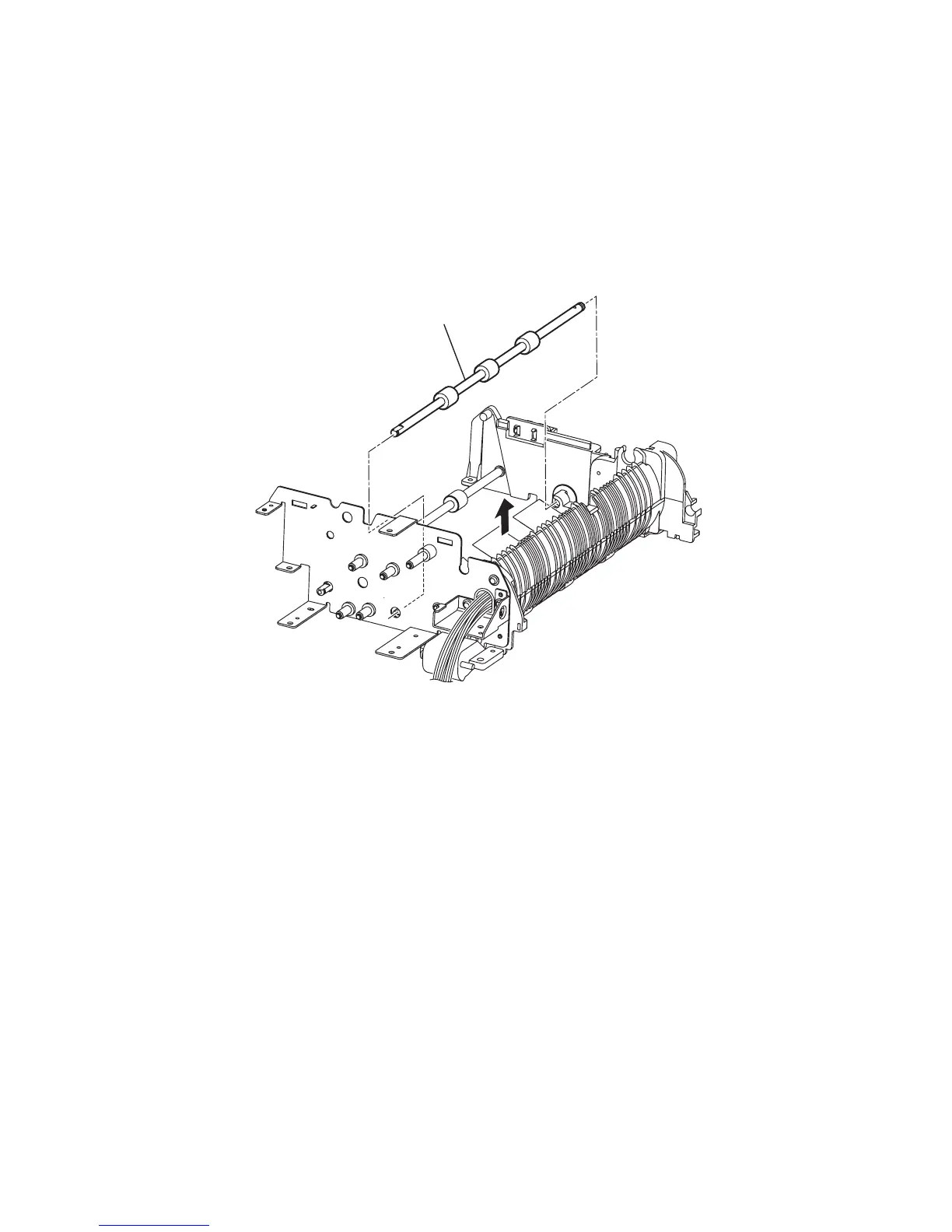

9. RemovetheROLLERFEEDB[1].
[
1
]
