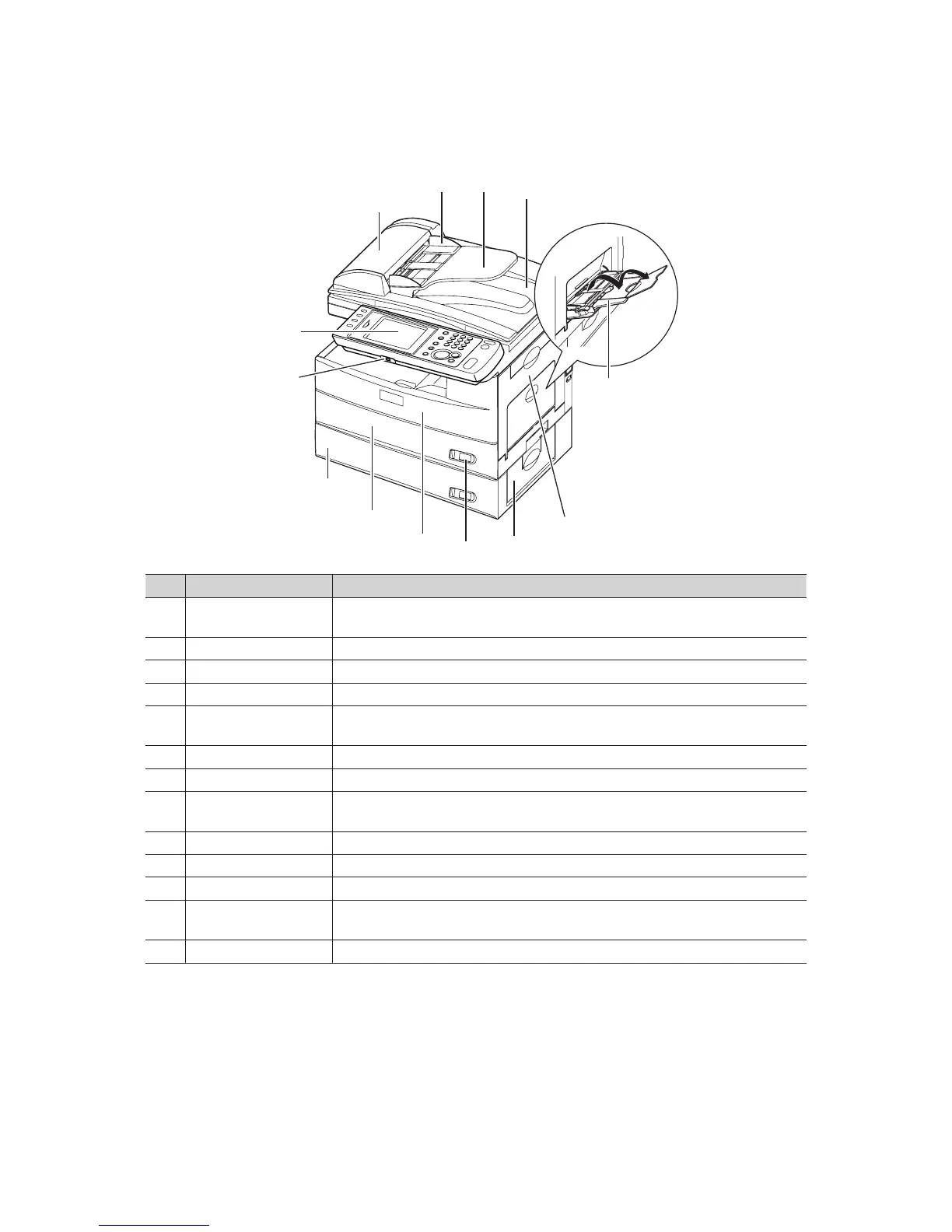

No. Name Description
1
ADFcover Open this when a documentjamsand when cleaning the scanning
area.
2 Document guide This supports the document so that it is fed straight.
3 Document tray Load the document here face up.
4 Document output tray Scanned documents are output here.
5 Bypass tray
Usedwhen printingonenvelopes,transparencies,andcustom paper
sizes.
6
Sidecover1 Openthiswhenpaperjamsandwhenreplacingthedrumcartridge.
7 Sidecover2 Anoptionalpapercassette.Openthiswhenpaperjams.
8 Paperlevelindication
window
Theareasindicated in red increase asthe paper level in the paper
cassette decreases.
9
Frontcover Openthiswhenreplacingthetonercartridgeordrumcartridge.
10 Paper cassette 1 This holds approximately 500 sheets of paper.
11 Paper cassette 2 This holds approximately 500 sheets of paper. This cassette is optional.
12 USB connector
ConnectUSBmemoryheretosavescannedimagestoUSBmemoryor
print images stored on USB memory.
13 Control panel This panel includes the touch panel and the keys required for operation.
