2-1
2 Machine Composition
2.1 Document Scanning Sequence
2.1.1 Auto Document Feeder (ADF) Section
ADF(AutoDocumentFeeder)isadevicethatfeedsthedocumentcontinuouslyonepagebyoneto
thescanningsectionautomatically.Itconsistsmainlyofdocumenttray,Txcover,innerguide,and
platencover.Whenthedeviceiscategorizedbyitsfunctions,itconsistsofseparatorsectionthat
picks up each page of documents, register section that detects the leading edge of the document and
controlsthetimingsothatthedocumentdoesnotskew,andscansectionthatscansthedocument.
The register section is for MFX-2570 only.

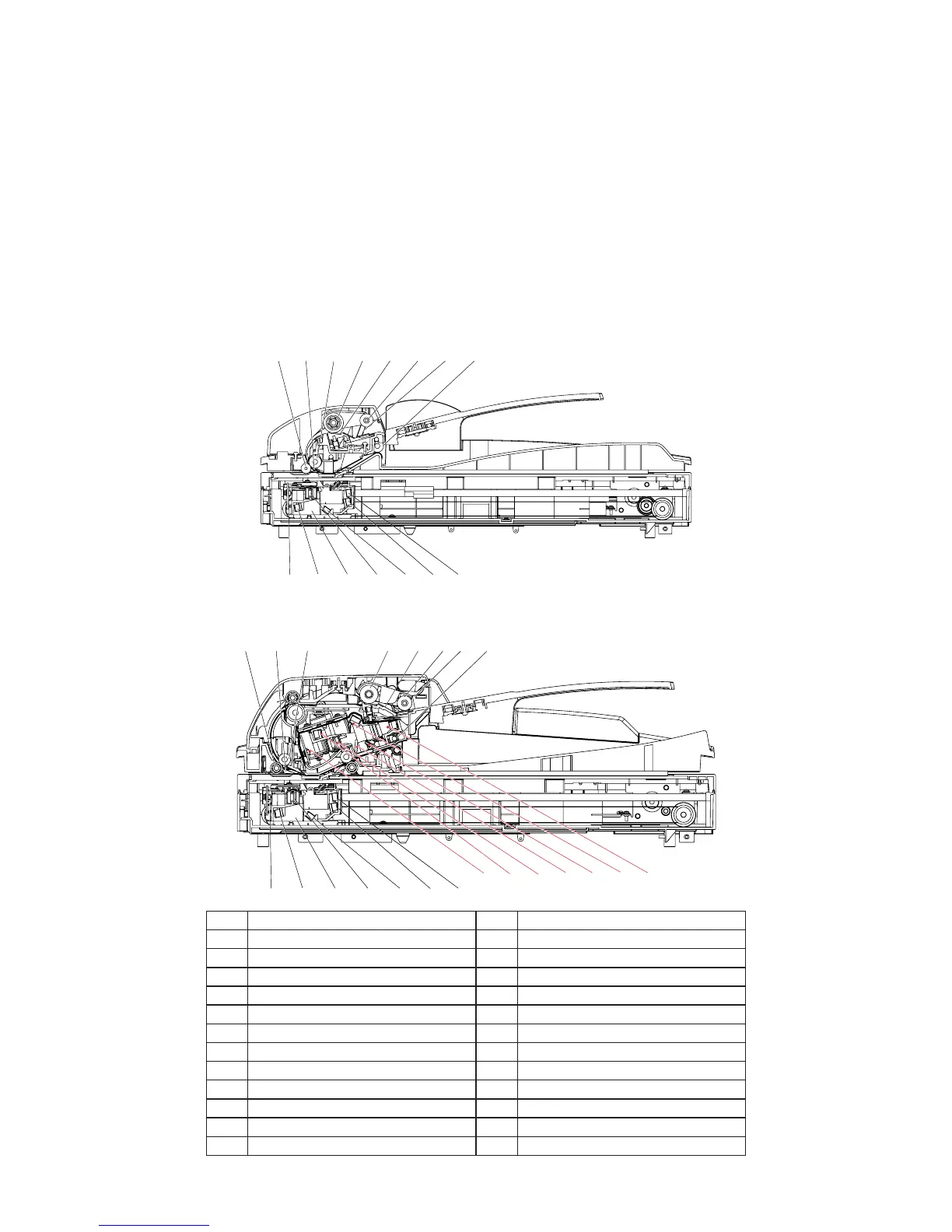

MFX-2550
No. Part name No. Part name
1 Press roller 13 Home sensor
2 DS2 sensor 14 Mirror B
3 Feed roller 15 CCD
4 Separate roller
5 Separate pad 16 CCD
6 Pickup roller 17 Mirror
7 DS1 sensor 18 Lens
8 Exit roller 19 Reflect tape
9 Mirror A 20 Lamp
10 Mirror C 21 Mirror
11 Mirror A 22 Mirror
12 Lens
