Muratec MFX-2550 Field Engineering Manual

5-67

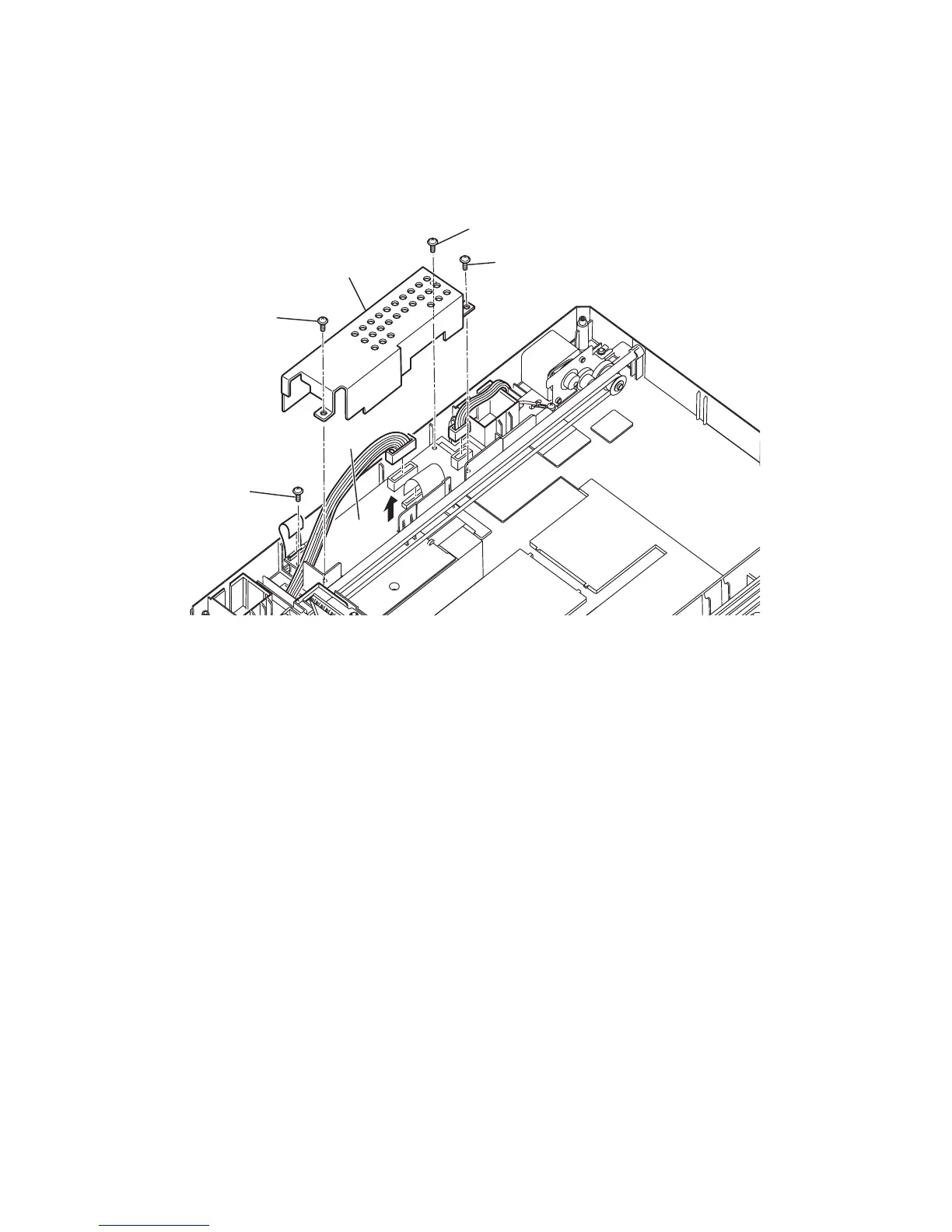

PCB SCANNER
1. RemovetheCoverplaten.(SeeCOVERPLATEN)
2. RemovetheASSYcovertop.(SeeASSYCOVERTOP)
3. Removethreescrews[1],thenremovethePlateshieldPCBscanner[2].
4. Disconnect all connectors.
5. Removeonescrew[3],thenremovethePCBSCANNER[4].
[
3
]
[
1
]
[
4
]
[
2
]
[
1
]
[
1
]
