5-77

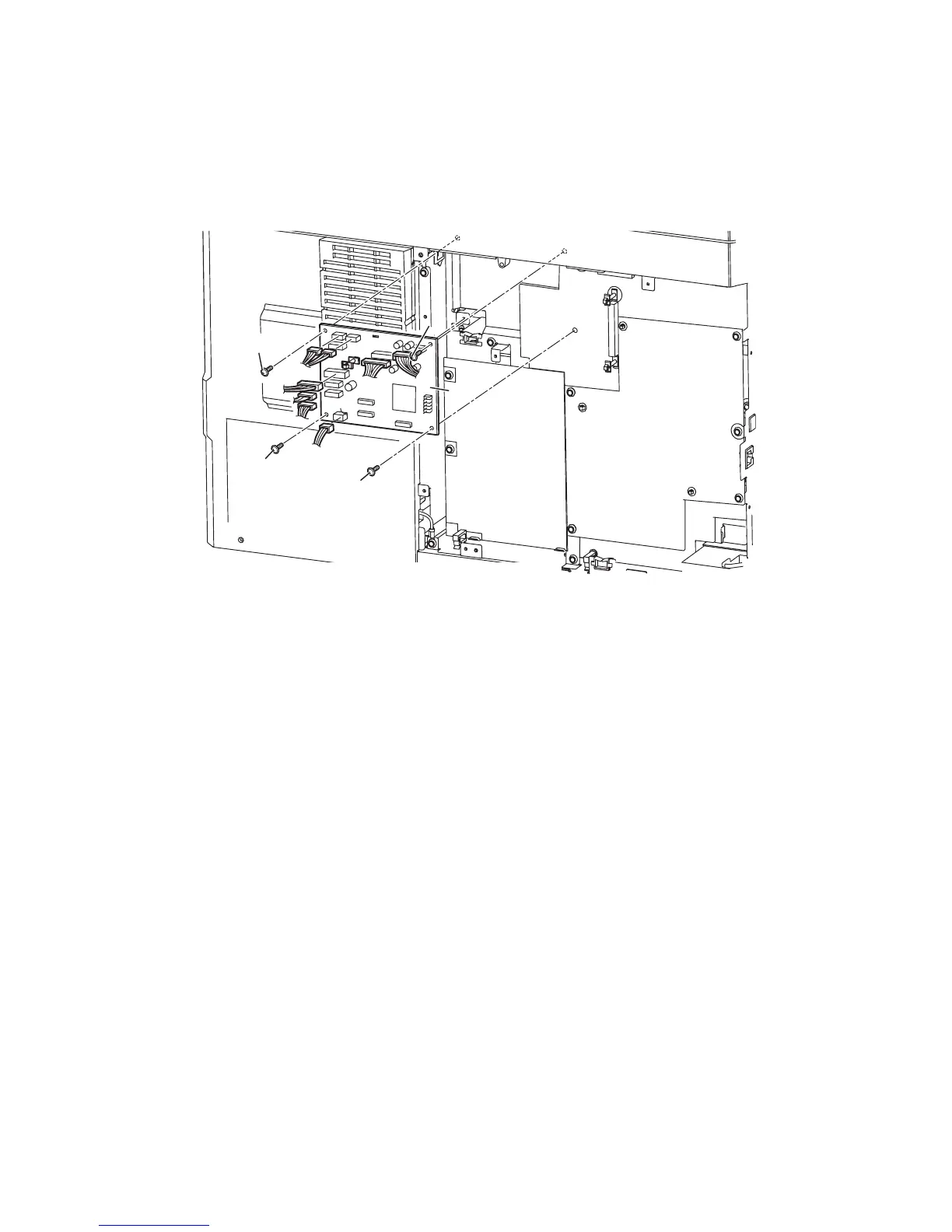

PCB LPH
1. RemovetheCoverconnect.(SeeCOVERCONNECT)
2. RemovetheCoveroption.(SeeCOVEROPTION)
3. RemovetheCovershield.(SeeCOVERSHIELD)
4. RemovethePCBIS.(SeePCB IS)
5. RemovethePCBMain.(SeePCB MAIN)
5. DisconnectallPCBLPH[1]connectors.
6. Removefourscrews[2],thenremovethePCBLPH[1].
[1]
[2]
[2]
[2]
[2]
