Muratec MFX-2550 - Printer Fuser

5-102
PRINTER FUSER

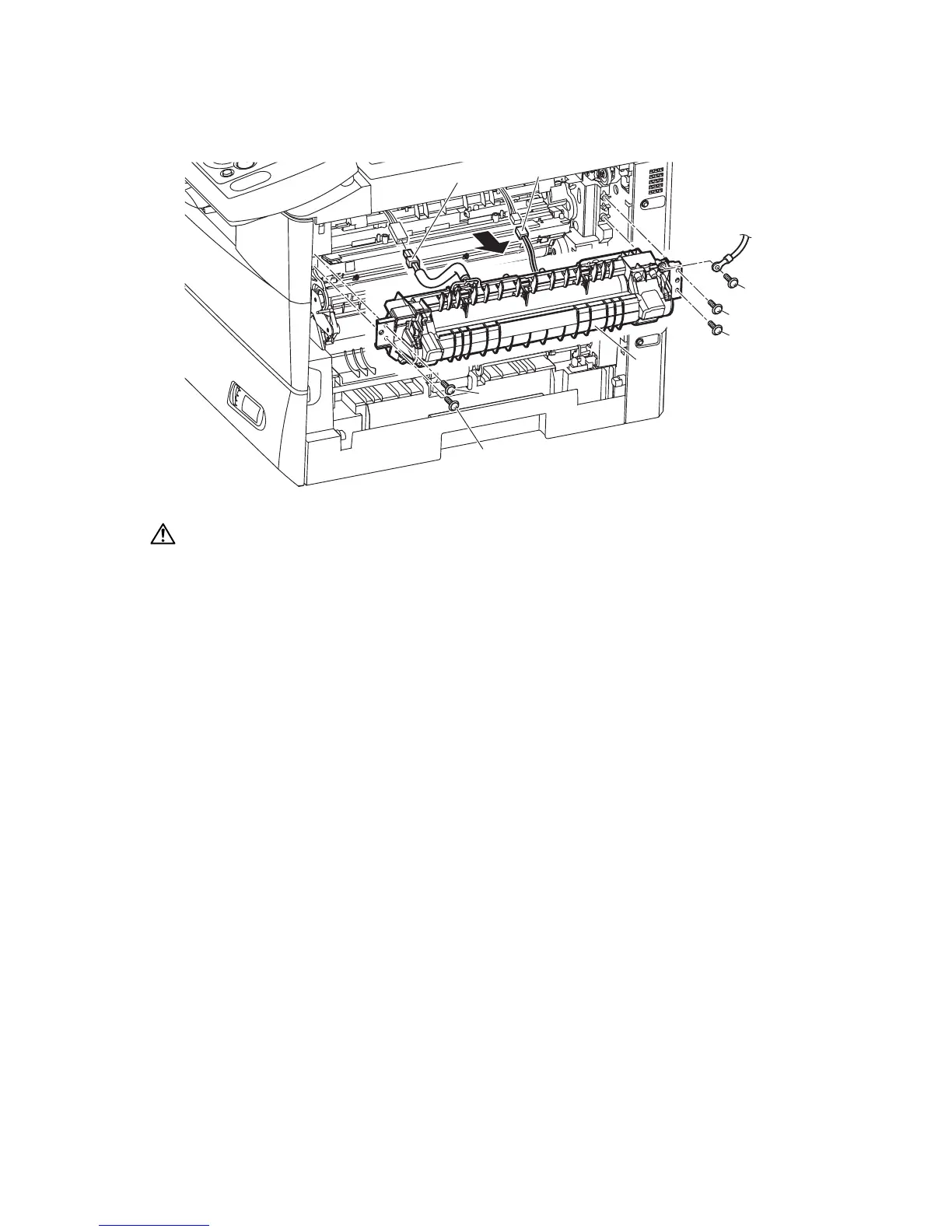

1. OpentheCoverjamaccess.
2. Removevescrews[1].
3. Disconnecttwoconnectors[2]andremovethePRINTERFUSER[3].
[
2
]
[
2
]
[
1
]
[
1
]
[
1
]
[
1
]
[
1
]
[
3
]
Caution
•BeforeremovingthePrinterfuser,makesurethepowercordisunplugged.Failuretodosomayresult
in electrical shock.
•MakesurethePrinterfuserbecomecoolbeforeremovingit.TheRollerheatisextremelyHOT
immediately after operation and may cause burns.
•Donottouchthethermostatorthermalfusewhileperformingthisprocedure.
