2.3.7 Fusing

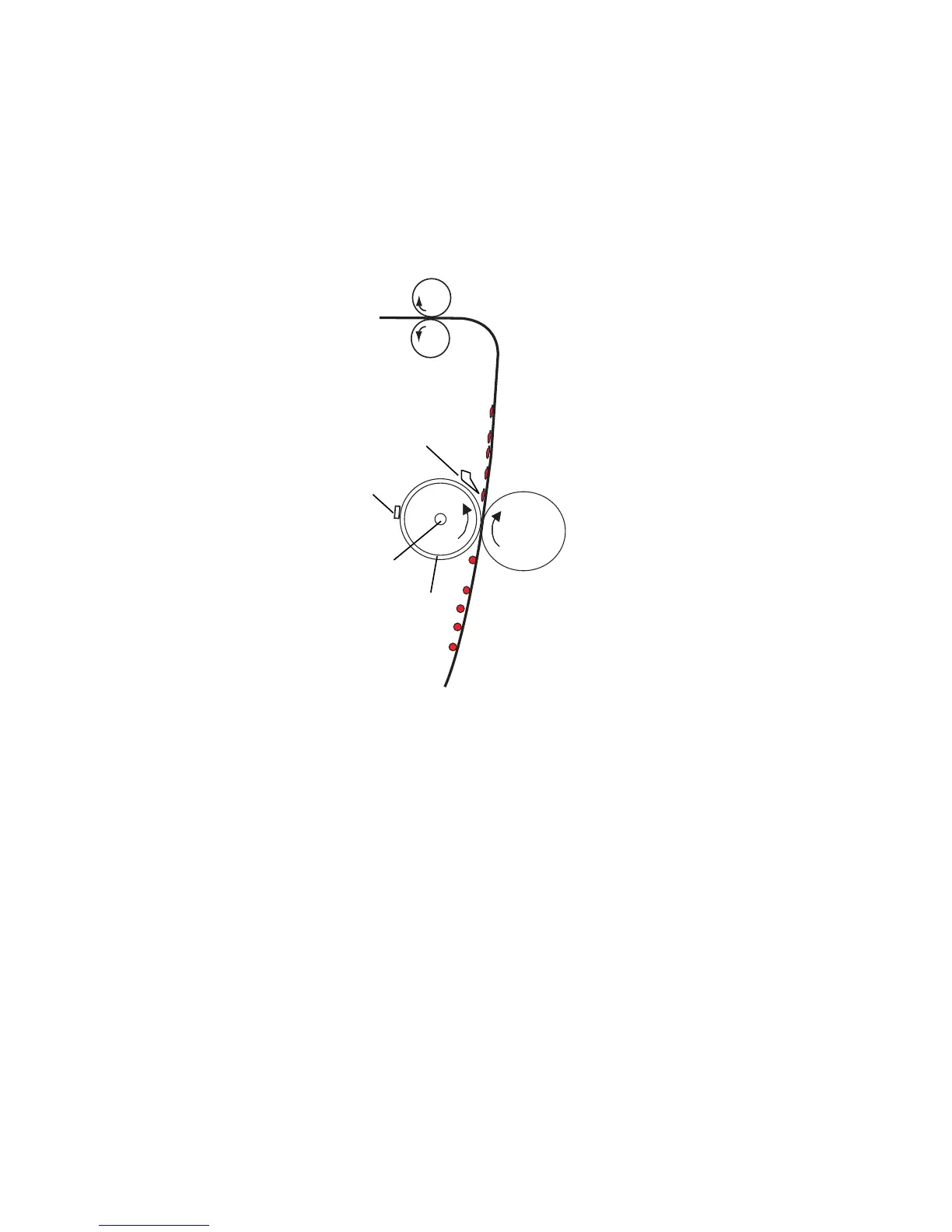

An Overview
The toner image transferred on to the paper is securely fixed.
A heat roller system is used as the fusing system. The toner image is fused by Heater Roller heated
bytheHeaterLamp,andsecurelyxedbythepressurebetweentheHeaterrollerandPressrollers.
A Thermistor detects and controls the Heater Roller temperature.
TheThermostatfunctionswhentheHeaterLampisnotturnedOFFeveniftheThermistordetectsa
high temperature malfunction.
Press roller
Press roller
Exit roller
Heater roller
Heater lamp
Thermistor
Paper separate blade
